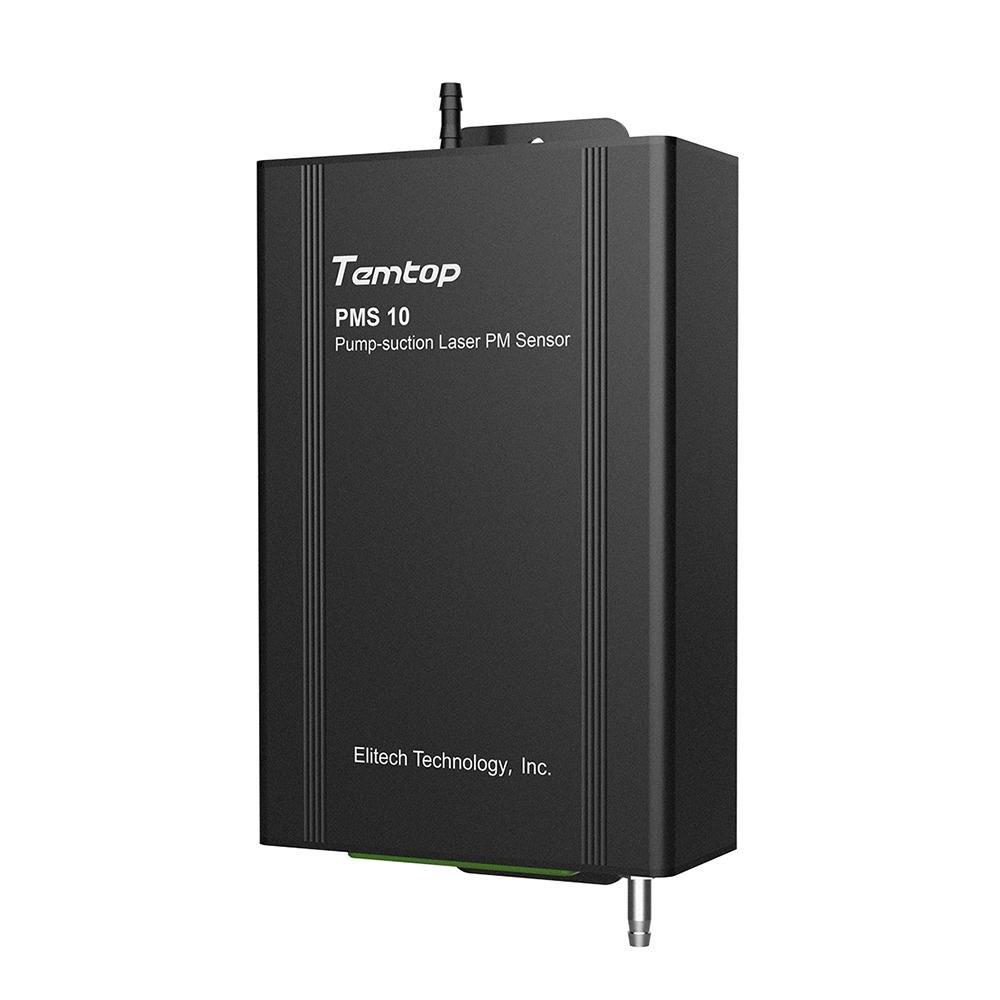

Temtop PMS 10 Pump-Suction Laser Particle Sensor Dust Monitor 4 Channels PM1.0 PM2.5 PM10 TSP 1.1L/min
PMS10 pump-suction laser particle sensor is a sensor module that uses the principle of laser scattering to detect PM1.0, PM2.5, PM10 and TSP in the atmospheric environment. The sensor is made with advanced processing chips and light-sensitive elements. After collected, the signals are processed by a microprocessor and output in the form of a universal digital interface.
The PMS10 can accurately detect the mass concentration of different sizes of particles in the atmospheric environment in real-time.
- Dimensions: 4.45*3.46*1.50 Inches
- Working Principle: Laser Mie-scattering Principle
- Working Temperature Range: 0~50℃
- Storage Temperature Range: -10℃~60℃
- PM2.5 Measuring Range: 0-5000ug/m³
- Flow Rate: 1.0L/min (Standard)(Customize:2.83L/min, about 2 weeks to do customization)
- Response time: ＜7s
- Sampling Rate: User-defined
- Communication Mode: RS485
- Weight: 0.8 lb.
- Calibrated with Beta-ray Scattering Detector
- Four-wire Vacuum Pump For Higher Sampling Efficiency
- All-metal Grounding Light Machine Structure
- User-defined Six-channel Particle Size Options
User Manual: Download
