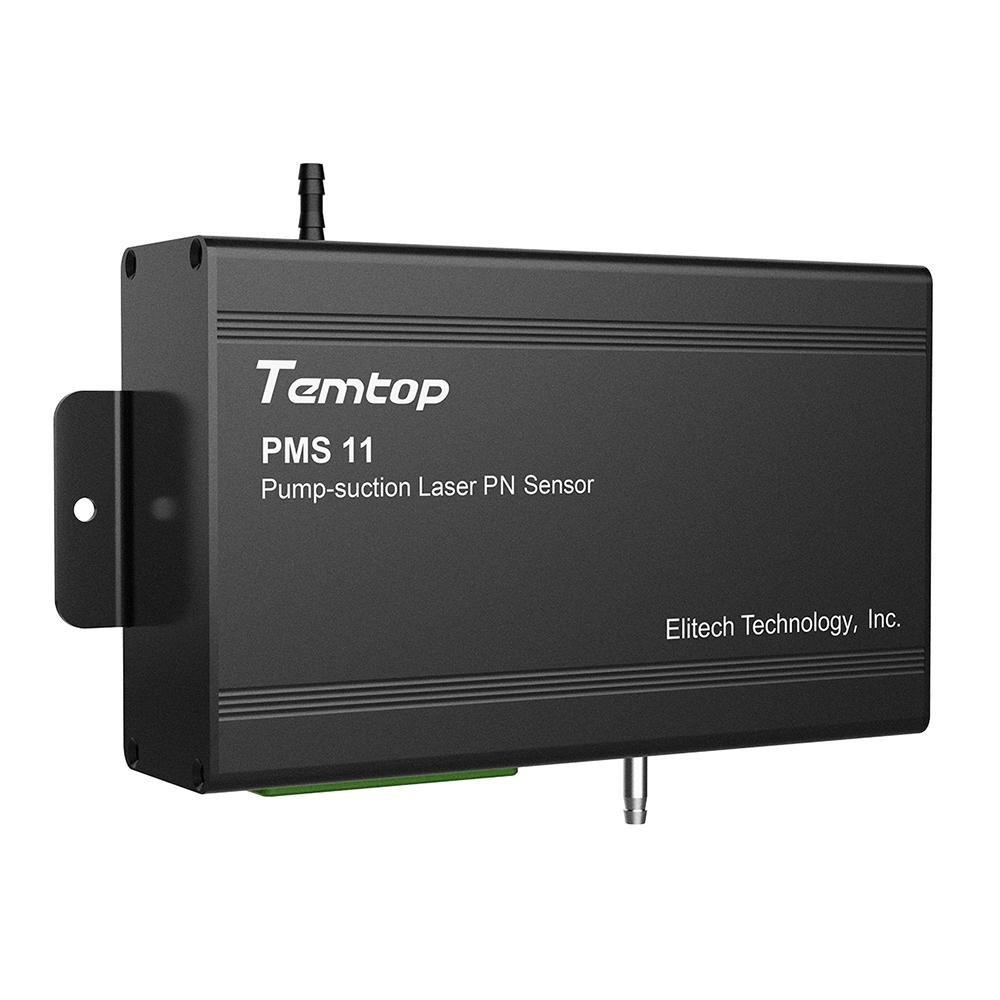

Temtop PMS 11 Embedded Particle Counter for Particulate Filtration Efficiency Tester
Temtop PMS 11 embedded particle counter is much cost-effective and easy to use, which can monitor particle size data from 0.3 μm to 5 μm. It is widely used in many application scenarios such as filter testing, indoor air quality, dust monitoring, and cleanroom monitoring.
Warranty: 1 Year
1. Six-channel particle size monitoring
Simultaneously monitor 0.3μm, 0.5μm, 0.7μm, 1μm, 2.5μm, 5μm particle size data, the sampling time is adjustable from 3 seconds to 1 minute;
2. Accurate calibration
Factory precise calibration can effectively reduce the cost of secondary calibration;
3. Efficient sampling
Equipped with a four-wire brushless vacuum pump, with a large flow rate and stable flow rate to ensure data confidence;
4. Strong anti-interference
Adopt all-metal precision optomechanical structure, stronger anti-interference performance;
5. Easy integration
Small size, industry-standard interface, more convenient installation;
6. Super long-running
Core devices such as industrial-grade lasers and air pumps can run online for 10,000 hours.

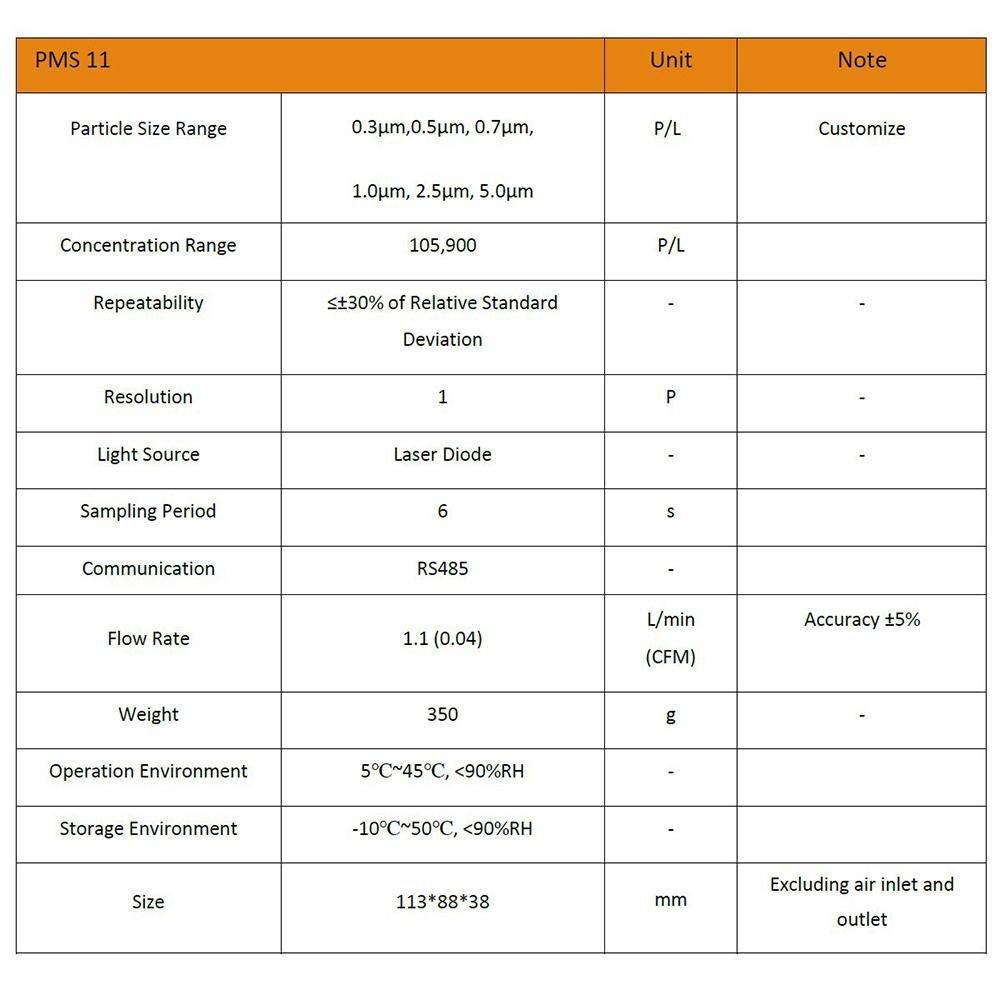

Particle Size Range: 0.3μm,0.5μm,0.7μm,1.0μm,2.5μm,5.0μm
Concentration Range: 105,900 P/L
Repeatability: ≤+30% of Relative Standard Deviation
Light Source: Laser Diode
Sampling Period: 6s
Flow Rate: 1.1 L/min (0.04 CFM); 2.83 L/min （Customizable）
Size: 113*88*38 mm
Operation Environment: 5℃~45℃, <90%RH
Storage Environment: -10℃~50℃, <90%RH
Filter test, filter material test, cleanroom monitoring, indoor air quality, workplace monitoring, industrial measurement, QA department.
User manual: Download
