Elitech Tlog B100H Temperature and Humidity Data Logger is?used to monitoring and record the temperature and humidity for foods, pharmaceuticals, and other products during their storage and transport, and in each stage of cold chain logistics, such as refrigerated contain-ers/ trucks, cooler bags, cooling cabinets, medical cabinets, freezers, and laboratories.

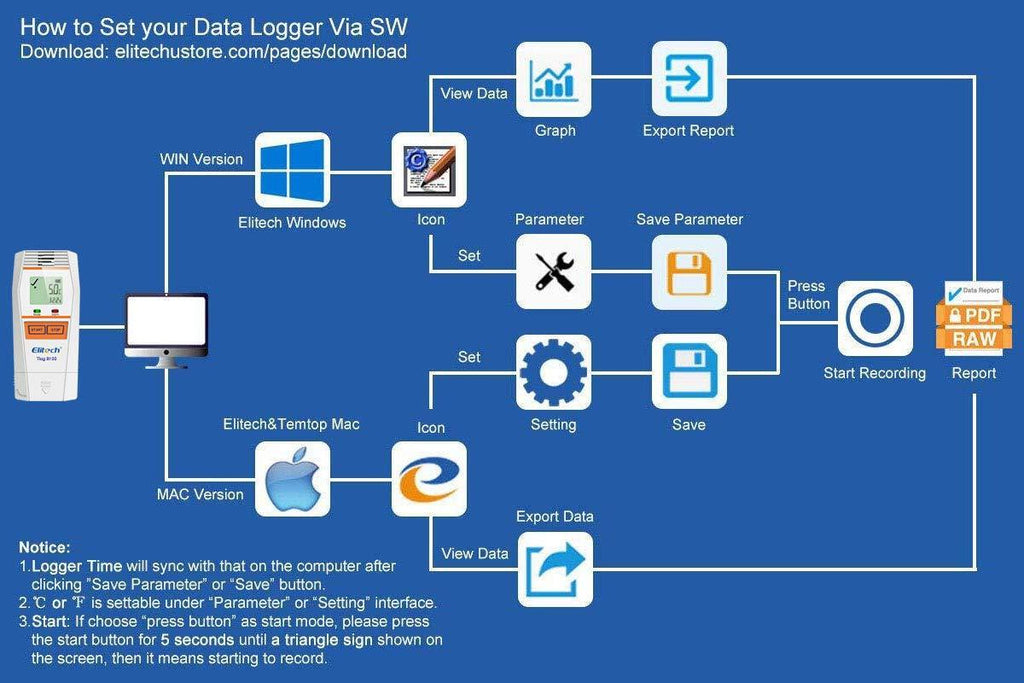

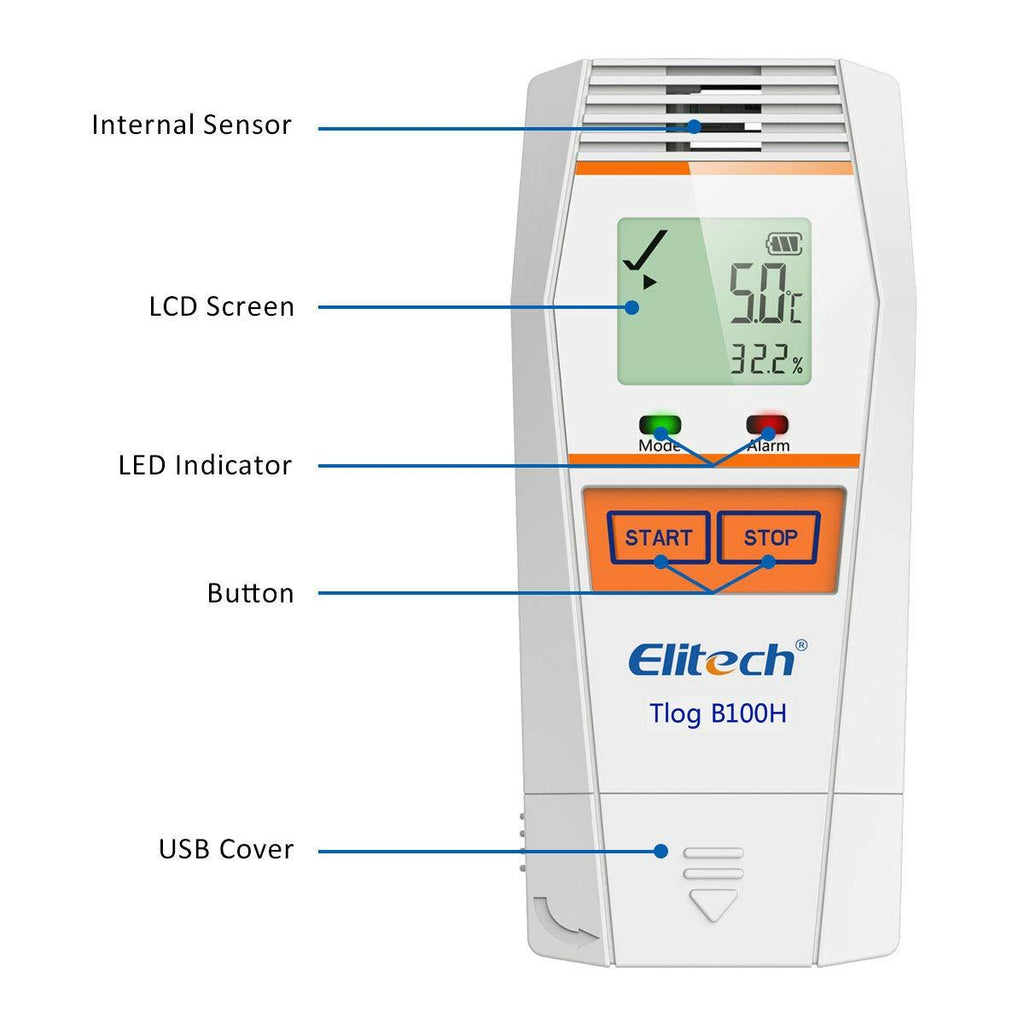

Elitech Tlog B100H features a USB port, LCD screen and two buttons designed to prevent accidental touches. You can view device status and parameters by button press, or customize various parameters, such as start/stop modes, multiple thresholds, and storage modes. You can also view automatically generated PDF report without using the ElitechLog software.
Tlog B100 series are Bluetooth versions that allow operations without opening packages via the Elitech app. Such as parameter configuration, data viewing, Bluetooth print, etc. that provides simple, practical, and convenient experiences.
- ¡¾Multi-use and High Recording Capacity¡¿Up to 32,000 temperature points.
- ¡¾Wireless Bluetooth Technology¡¿One-click pairing, program/manage logger remotely by Elitech App within meters ranges.
- ¡¾High-precision Internal Temperature and Humidity Sensor¡¿A wide temperature and humidity range from -22¡ãF to 158¡ãF and 10% to 90% with high accuracy, up to ¡À0.6¨H and ¡À3%RH, more suitable for a variety of temperature and humidity sensitive products.
- ¡¾iOS and Android¡¿Free Elitech App remotely manage logger , make cold chain management much easier.
- ¡¾Long Working Life¡¿ Adopting a replaceable lithium battery, it can be stored and used within 2 years*. 24/7 US Technician Support via Email and Phone.
- Temperature Measuring range:?-30¡æ~+70¡æ(-22¡ãF~+158¡ãF); Resolution:0.1¡æ/0.1¡ãF
- Humidity Measuring range: 10%RH~90%RH
- Sensor type:?Internal?temperature and humidity combined sensors
- Memory: 32000 points (MAX)
- Logging interval: 10 seconds ~ 24 hours (10 minutes by default)
- Start mode: Button or software
- Stop mode: Button, software or stop when full
- Alarm thresholds: up to 3 high limits and 2 low limits

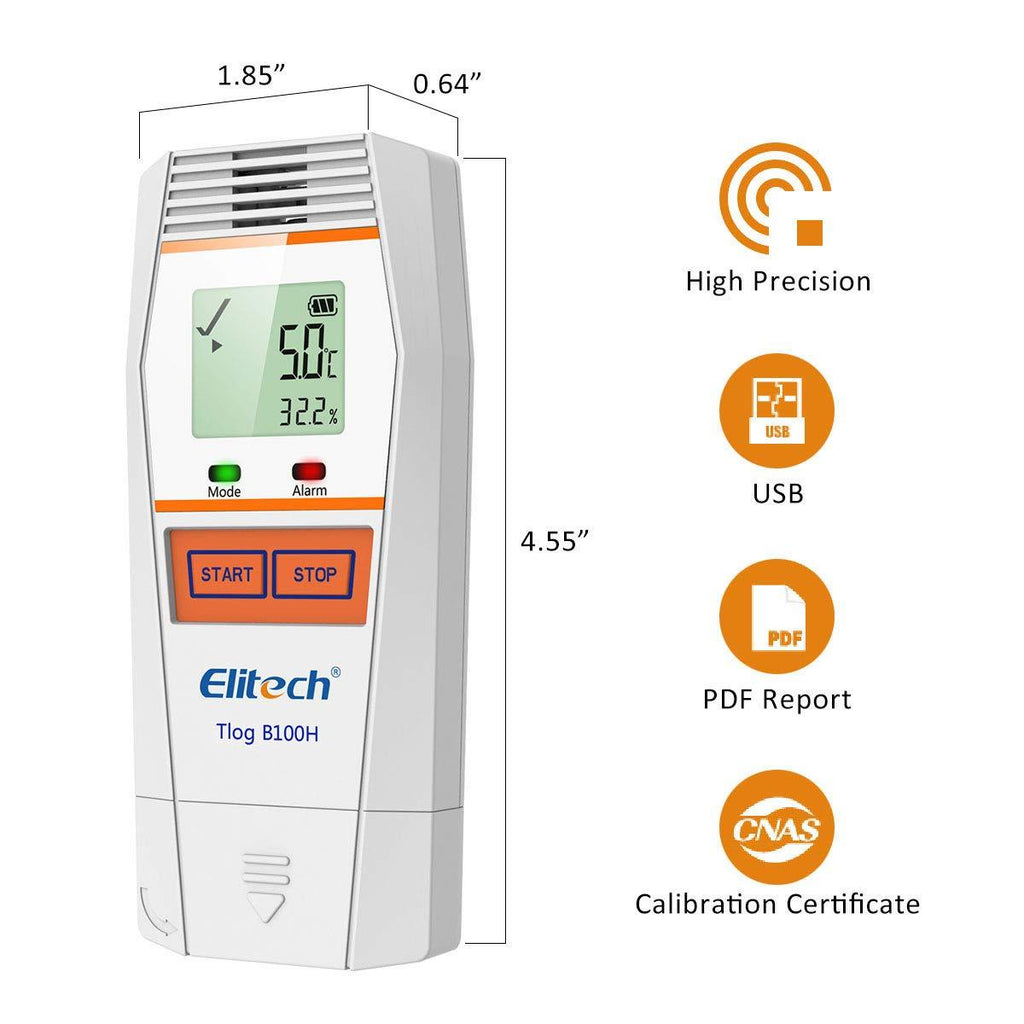

- Dimensions: 115.5mmx47mmx16.2mm (LxWxH)
- Alarm type: Single/Cumulative

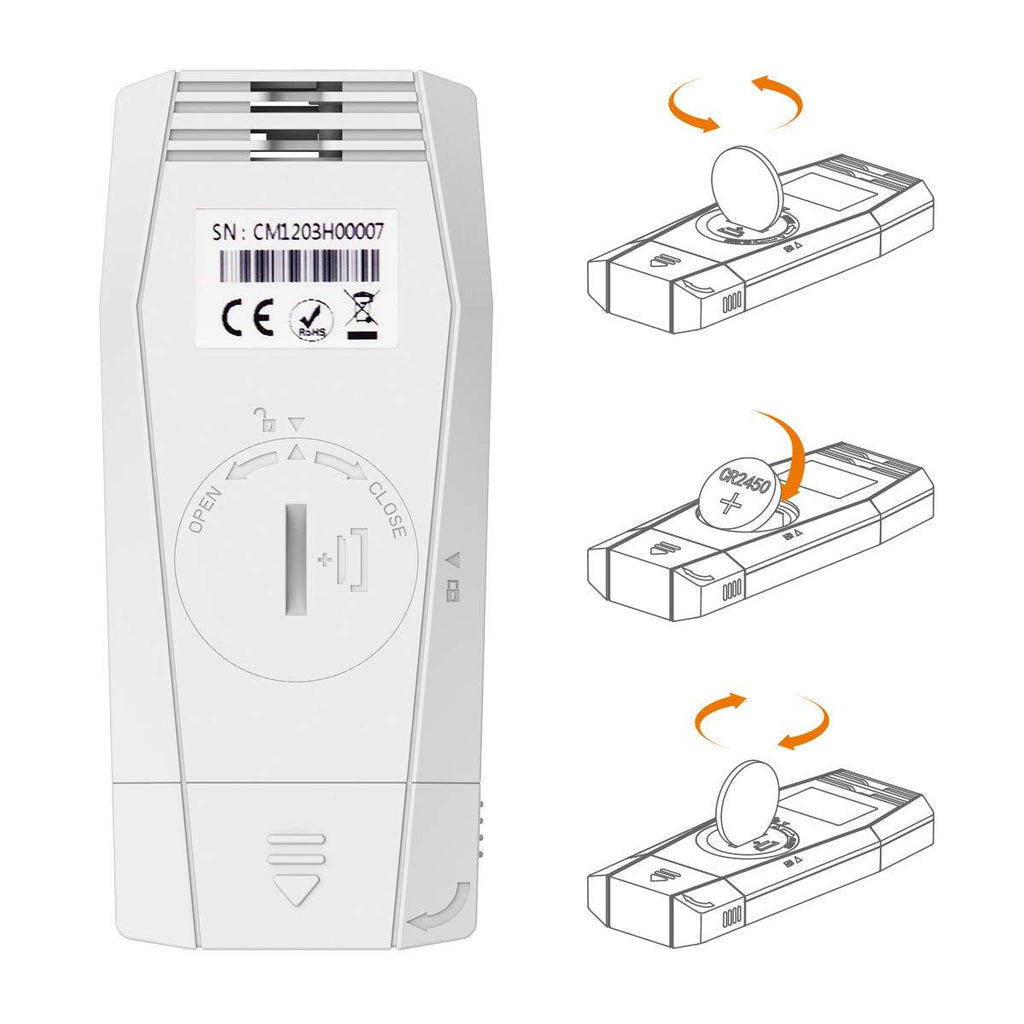

- Battery: CR2450 3.0V single use lithium battery
- Battery life: 2 years (stored and used in normal temperature environment)

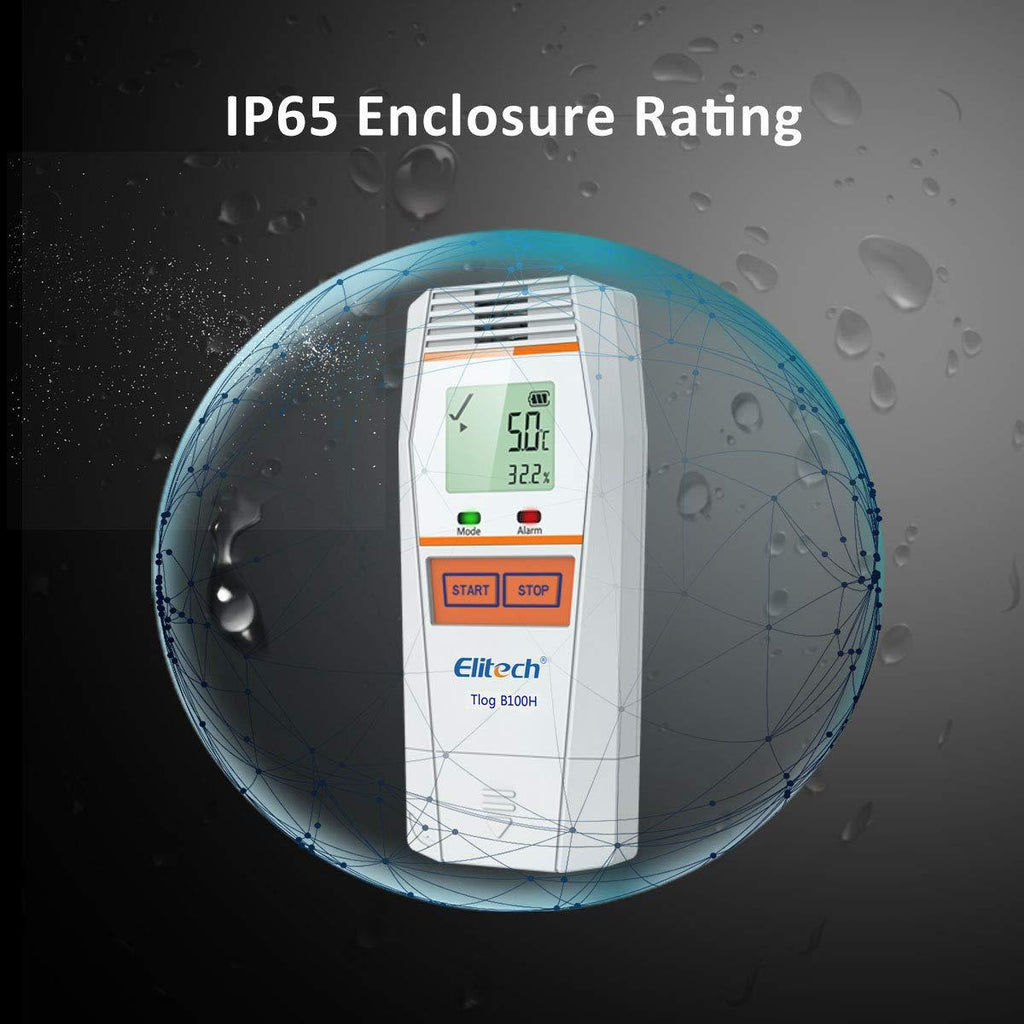

- Protection grade: IP65
- Weight: 70g

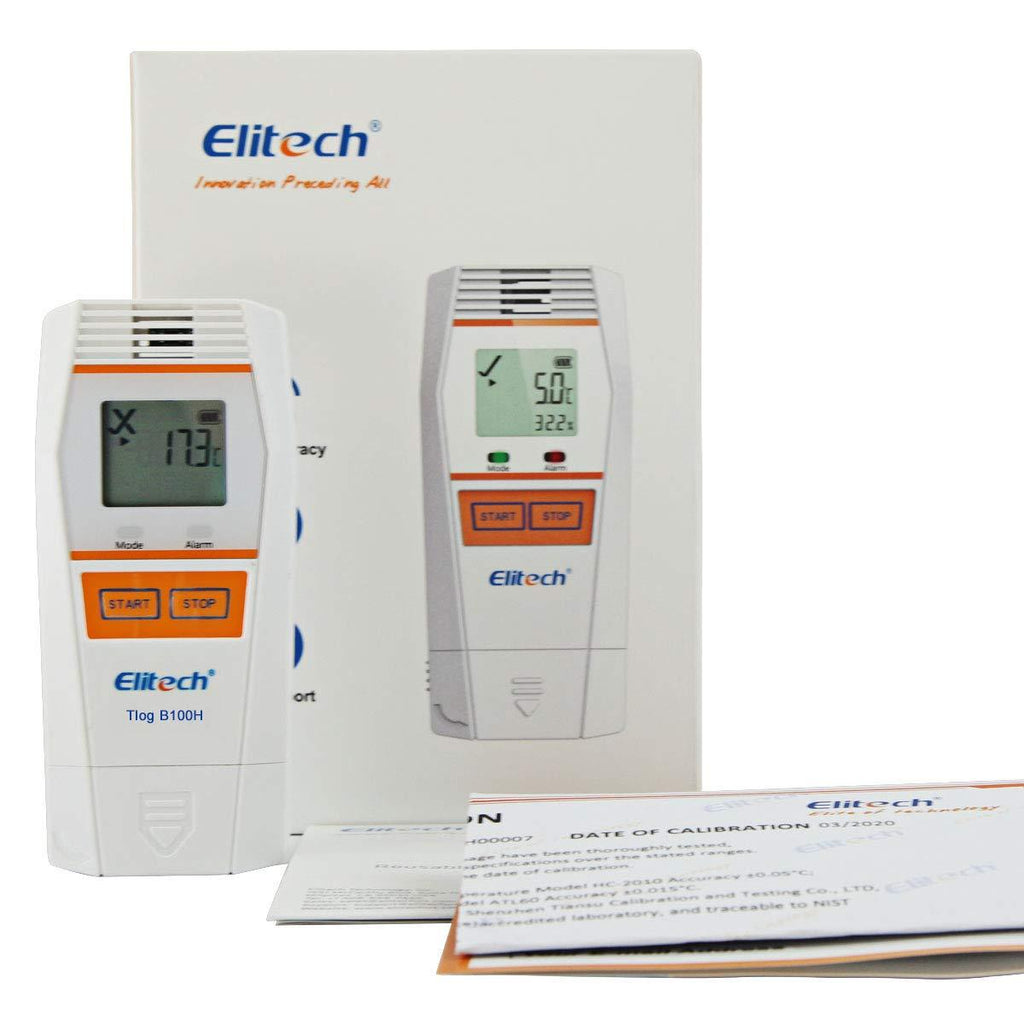

- 1 x Data Logger
- 1 x User Manual
- 1 x Calibration Certificate
- 1 x Quality Certificate
The air vent that based on airflow maintains the best thermal coupling with the surrounding environment and quickly senses the actual temperature.
The ingeniously designed cover fits tightly, has a well waterproof performance. The USB cover is connected to the data logger by a rubber thread to prevent loss.
* Please pull from the side, do not pull vertically.
A groove is around the button, to prevent misoperation by squeezed during transportation.
The digital temperature sensor is from Switzerland, after repeated precision screening and testing, to ensure that the product is stable and accurate.
|Tlog 100||Tlog 100E||Tlog 100H||Tlog B100H||Tlog 100EC||Tlog 100EL|
|Sensor Type||Internal Temperature||External Temperature||Internal Temperature and Humidity||Internal Temperature and Humidity||External Cryogenic||External Cryogenic|
|Temperature Measuring Range||-30¡æ~70¡æ(-22¨H~158¨H)||-40¡æ~85¡æ(-40¨H~185¨H)||-30¡æ~70¡æ(-22¨H~158¨H)||-30¡æ~70¡æ(-22¨H~158¨H)||-85¡æ~150¡æ(-121¨H~302¨H)||-196¡æ~150¡æ(-320.8¨H~302¨H)|
|Temperature Accuracy||¡À0.3¡æ(-20¡æ~40¡æ), ¡À0.5¡æ(others)||¡À0.3¡æ(-20¡æ~40¡æ), ¡À0.5¡æ(others)||¡À0.3¡æ(-20¡æ~40¡æ), ¡À0.5¡æ(others)||¡À0.3¡æ(-20¡æ~40¡æ), ¡À0.5¡æ(others)||¡À0.3¡æ(-20¡æ~40¡æ), ¡À0.5¡æ(-50¡æ~85¡æ), ¡À1¡æ(-100¡æ~150¡æ), ¡À2¡æ(others)||¡À0.3¡æ(-20¡æ~40¡æ), ¡À0.5¡æ(-50¡æ~85¡æ), ¡À1¡æ(-100¡æ~150¡æ), ¡À2¡æ(others)|
|Humidity Measuring Range||-||-||0%RH~100%RH||0%RH~100%RH||-||-|
|Humidity Accuracy||-||-||¡À3%RH(25¡æ:20%RH~80%RH), ¡À5%RH(others)||¡À3%RH(25¡æ:20%RH~80%RH), ¡À5%RH(others)||-||-|
