Elitech Tlog 100EL Ultra Low Data Logger Temperature Recorder Cold Chain Dry Ice PDF Report USB Port 32000 Points
Elitech Tlog 100EL Temperature Data Logger Reusable Ultra Low Temperature Recorder is used to monitor and record the temperature for foods, pharmaceuticals, dry ice and other products during their storage and transport, and in each stage of cold chain logistics, such as refrigerated contain-ers/ trucks, cooler bags, cooling cabinets, medical cabinets, freezers, and laboratories.
Elitech Tlog 100EL supports an ultra low temperature range for logging data, and it features a built-in mini USB port, LCD screen and two buttons designed to prevent accidental touches. You can view device status and parameters by button press, or customize various parameters, such as start/stop modes, multiple thresholds, and storage modes. You can also view automatically generated PDF report without using the ElitechLog software.
- 【Multi-use and High Recording Capacity】Up to 32,000 temperature points.
- 【Plug and Read】No cable or reader required, the USB connector enables quick connection to PCs to download data.
- 【High-precision External Temperature Sensor】A wide temperature range from -121°F to 185°F with high accuracy, up to ±0.6℉, more suitable for a variety of temperature sensitive products.

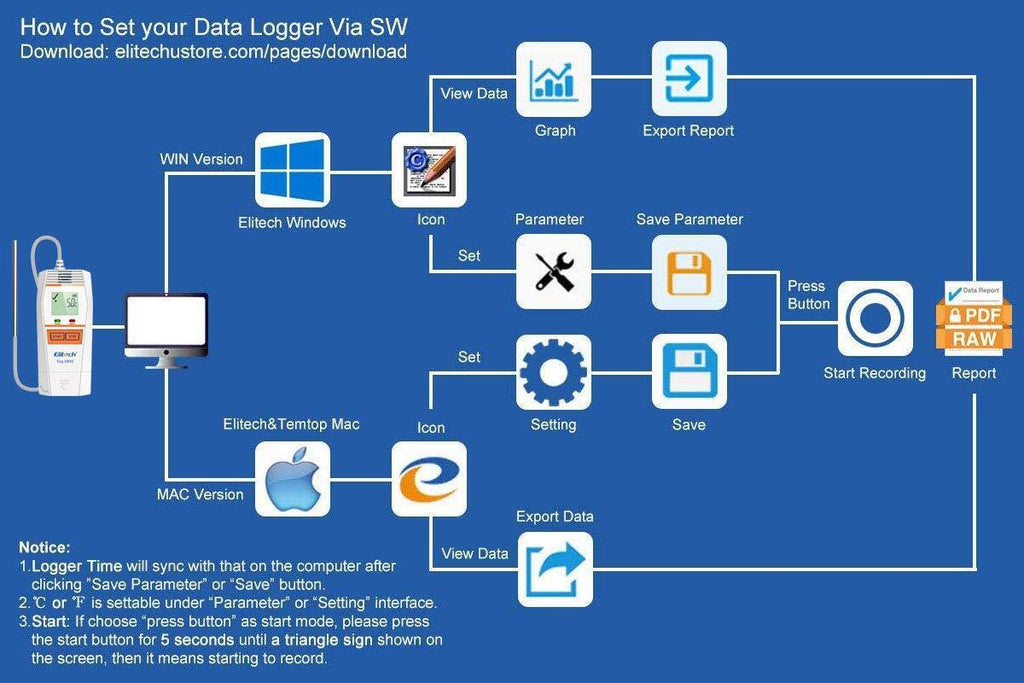

- 【PDF Report】Auto encrypted and generated PDF report with password protection function; Personalized settings and management provided by free Elitechlog software.
- 【Long Working Life】 Adopting a replaceable lithium battery, it can be stored and used within 2 years*.
- Measuring range: -196℃~+150℃(-320.8°F~+302°F); Resolution: 0.1℃/0.1°F
- Accuracy: ±0.3℃(-20℃~+40℃); ±0.5℃(-50℃~+85℃); ±1℃(-100℃~+150℃); ±2℃(others)
- Sensor type: External temperature sensors
- Memory: 32000 points (MAX)
- Logging interval: 10 seconds ~ 24 hours (10 minutes by default)
- Start mode: Button or software
- Stop mode: Button, software or stop when full

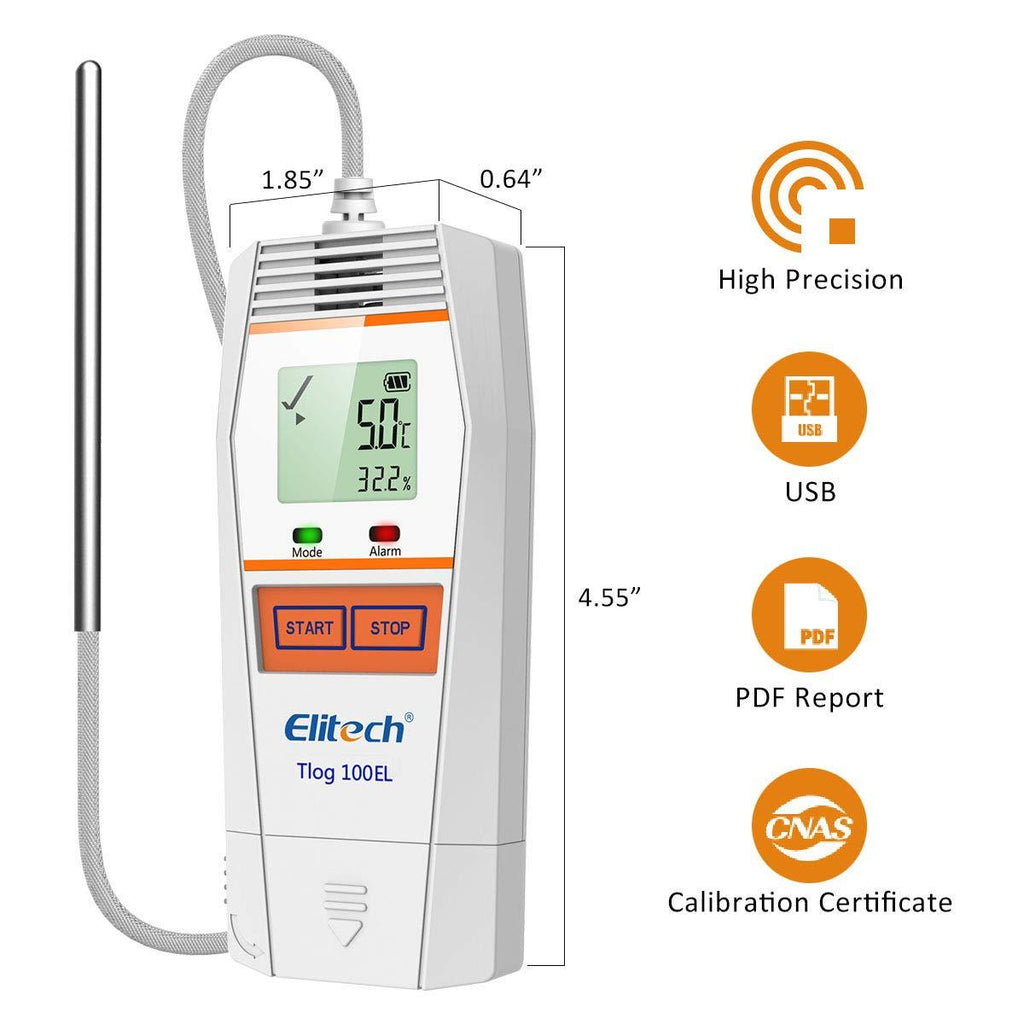

- Dimensions: 115.5mmx47mmx16.2mm (LxWxH)
- Alarm type: Single/Cumulative
- Data transmission: USB port
- Report type: PDF format

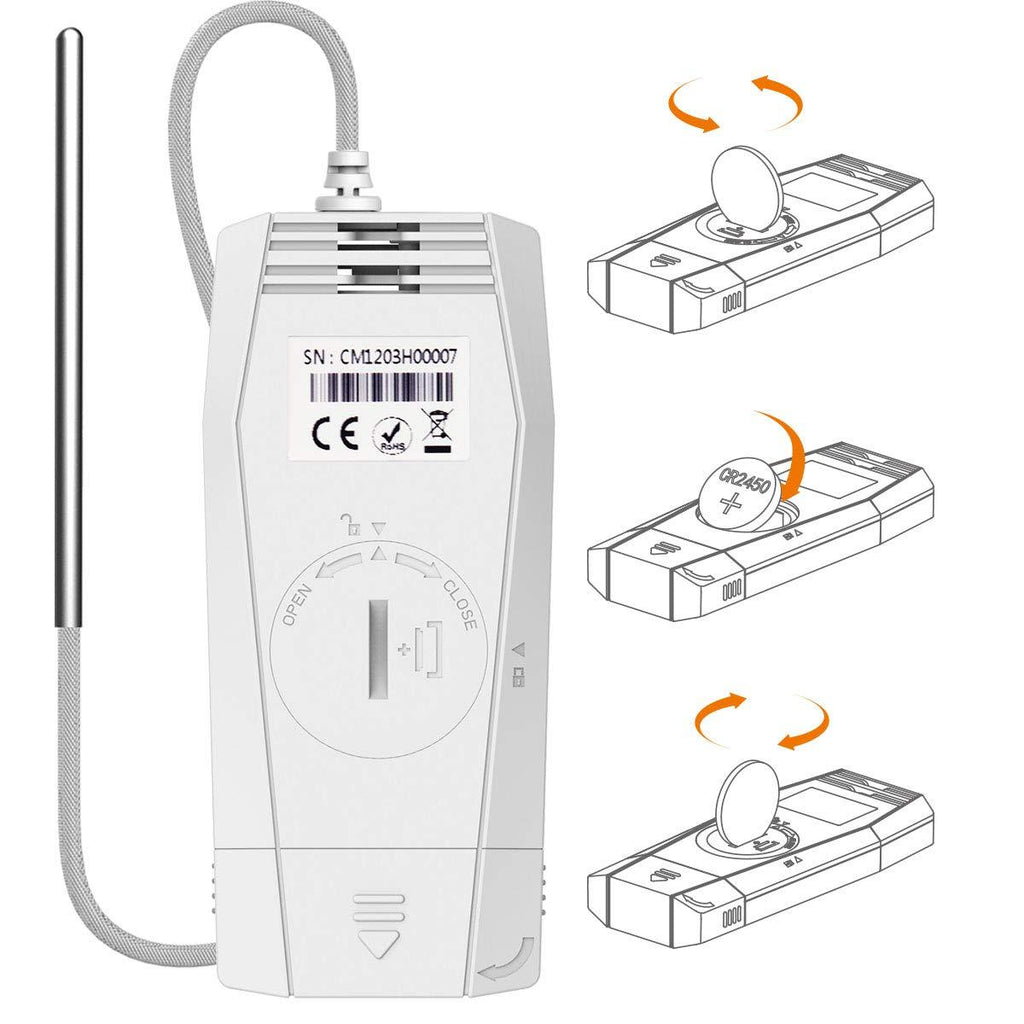

- Battery: CR2450 3.0V single use lithium battery
- Battery life: 2 years (stored and used in normal temperature environment)

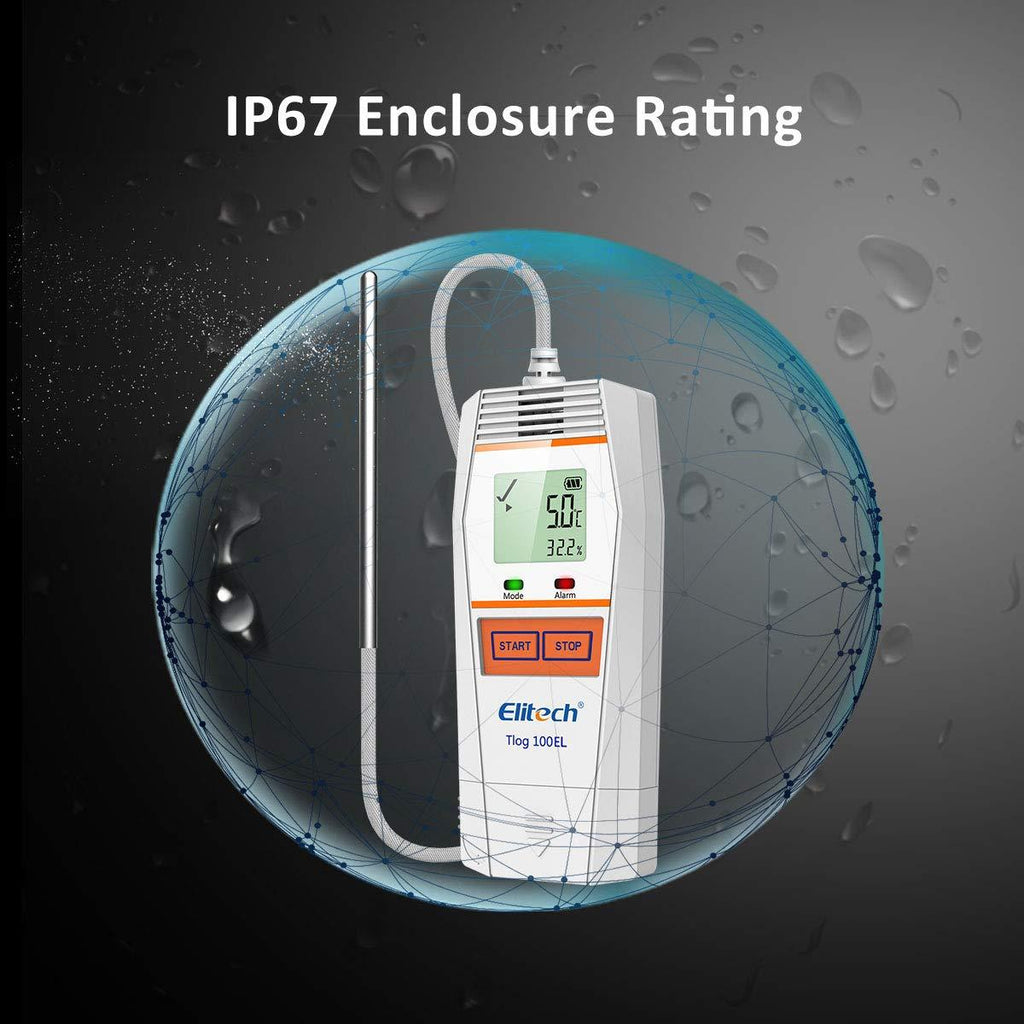

- Protection grade: IP67
- Weight: 70g

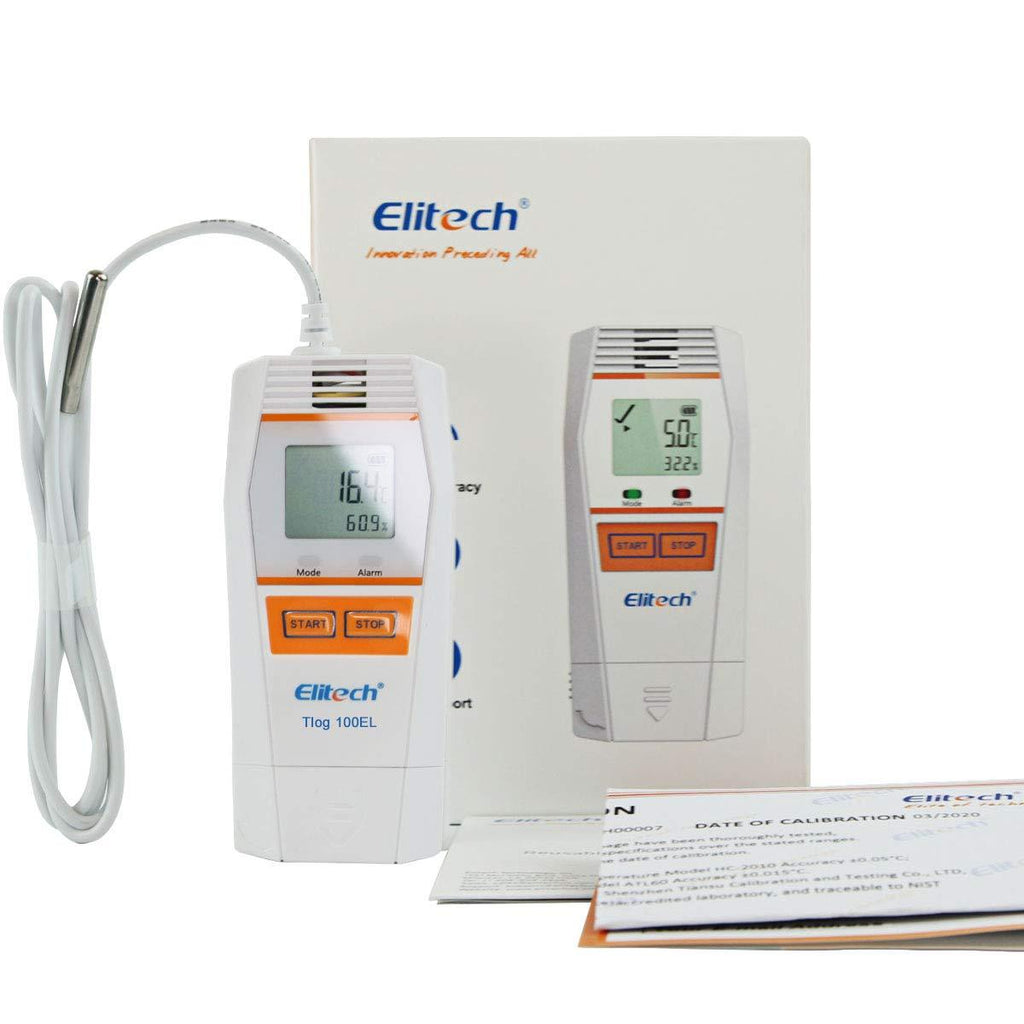

- 1 x Data Logger
- 1 x User Manual
- 1 x Calibration Certification(valid for 2 years)
Please contact us at email@example.com if you need the date of calibration and expiration printed on the calibration certificate.

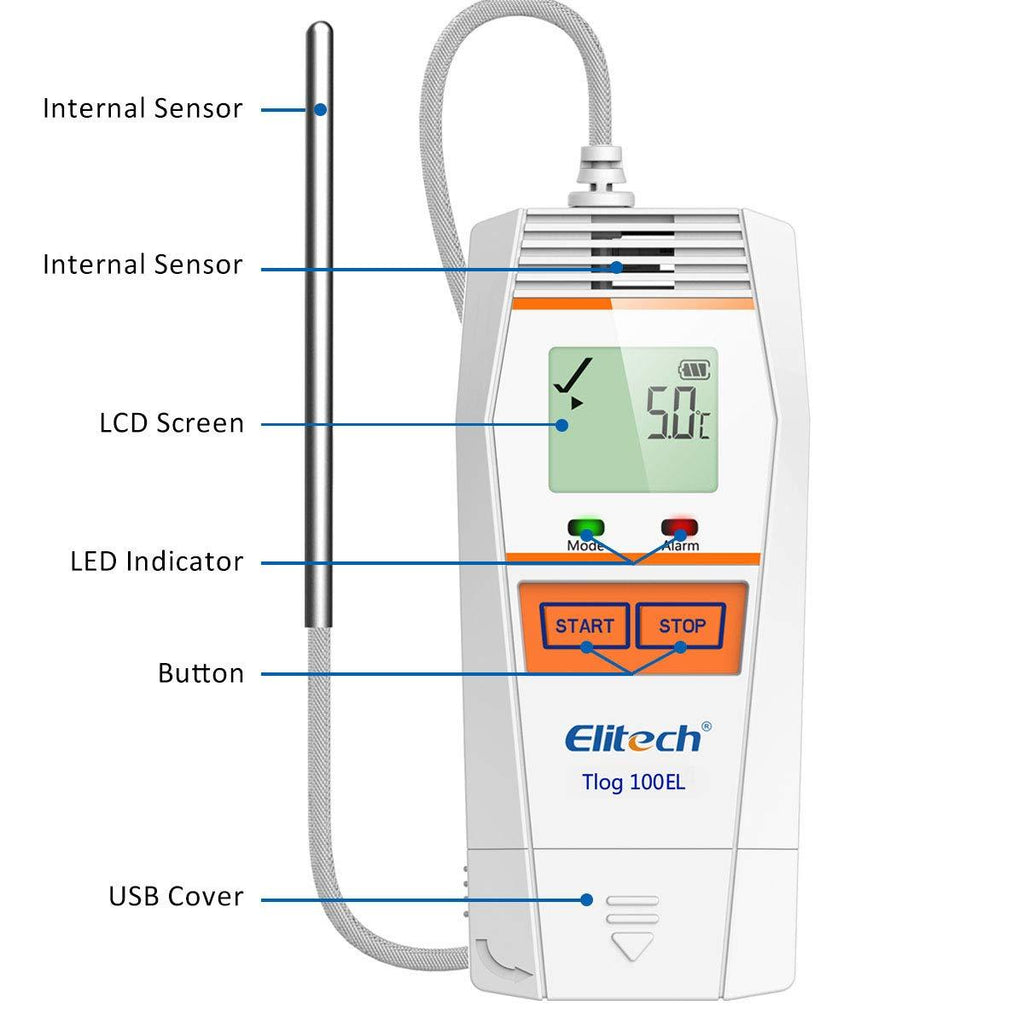

The air vent that based on airflow maintains the good thermal coupling with the surrounding environment and quickly senses the actual temperature.
The ingeniously designed cover fits tightly, has a well waterproof performance. The USB cover is connected to the data logger by a rubber thread to prevent loss.
* Please pull from the side, do not pull vertically.
A groove is around the button, to prevent misoperation by squeezed during transportation.
The digital temperature sensor is from Switzerland, after repeated precision screening, to ensure that the product is stable and accurate.
