Elitech SVP-9 Vacuum Pump 9 CFM 2 Stage Intelligent HVAC Refrigerant Recharging, Touch Screen, Data Logging and Storage via App

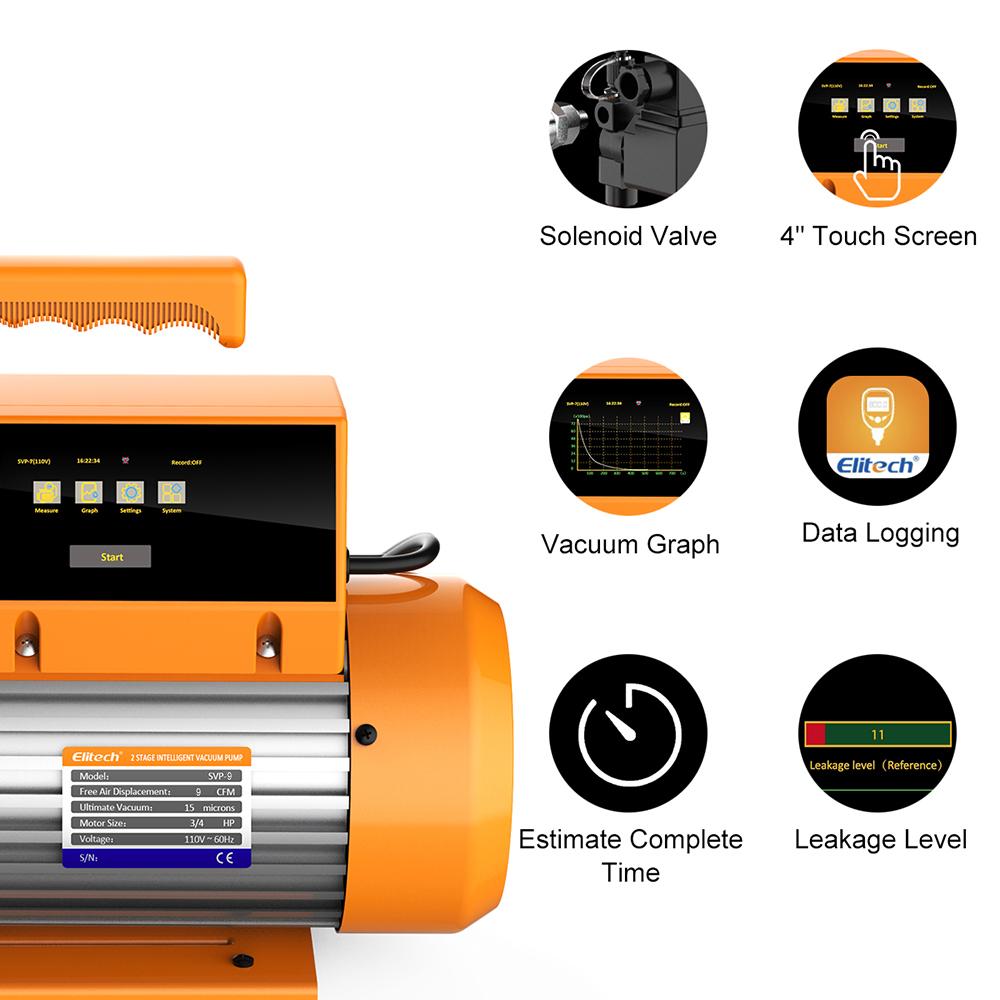

Elitech SVP-9 vacuum pump is a 9 CFM, dual-stage unit with an innovative touch screen design. This HVAC refrigerant R410A vacuum pump comes with a touch screen, which displays the data change in the graph to help you know more about how your HVAC job is going on. SVP-9 enables your mobile App to connect with the pump in order to realize remote control, setting, real-time reading, and data report export conveniently.
Features
- 【Safe Operation】Motor and valve switch automatically, make your work safe and more reliable. Determine the system capacity according to the vacuum data to understand the volume of recharging refrigerants
- 【Intelligent Prediction】Predict the leakage status and remaining operating time.
- 【Vacuum Data in Graph】View job process in real-time on the 4'' touch screen. The graph makes it easier and more convenient to know how your data changes.
- 【User-friendly Design】Remote control, setup, and data view via mobile App, including customizing units and logging interval. Vacuum oil (300ml+450ml) is included.
- 【Professional Performance】Years of manufacturing equipment in the professional field of air conditioning. Suitable for any HVAC job you might have!
User manual: Download
Certificate: CE
Video: Vacuum Pump Operation Instruction
30 Days Free Return
1 Year Warranty
Technical Parameter
Model | SVP-9 |
Stage | 2 stages |
Power Supply | 110V/60HZ |
Motor | AC Induction Motor |
Speed Regulation | Fixed Speed |
Vacuum Accuracy | ±10% of Reading / ±10 microns(@1-10000microns) ±20% of Reading(@10000-19000microns) |
Working Environment | 5°C~40°C (41°F~104°F) |
Transmission Distance | 30ft /10m |
Limit Vacuum | 15 micron |
Pumping Rate | 9 CFM (4 L/S) |
Motor Power | 1 HP (750 W) |
Fuel Volume | 22 oz (650 ml) |
Overall Dimension | 18.5inx10.5inx14.8in (470mm*267mm*380mm) |
Weight | 35.3 lbs / 15.3 kg |
Air Inlet | 1/4 SAE |
