Intelligent Control and Prediction
Control motor and solenoid valve automatically, determine the system capacity according to the vacuum data to understand the volume of recharging refrigerants.
When the vacuum value drops below 8000Pa, the real-time vacuum graph will display.
Estimate Complete Time
When the vacuum status is close to stable, the remaining vacuuming time will display including the holding time.
4" Touch Screen
With 4" touch screen, you can check the real-time status, and complete the job in a smarter way.
1) Place the scale on a flat surface. 2) Operation temperature range::-10¡æ-40¡æ 3) Temperature fluctuation range:5¡æ/h 4) Relative humidity:50-85% 5) Accuracy: LMC-100A:¡À0.5%rdg+10g LMC-100F:¡À0.5%rdg+5g 6) Resolution: LMC-100A: 5G LMC-100F: 2g

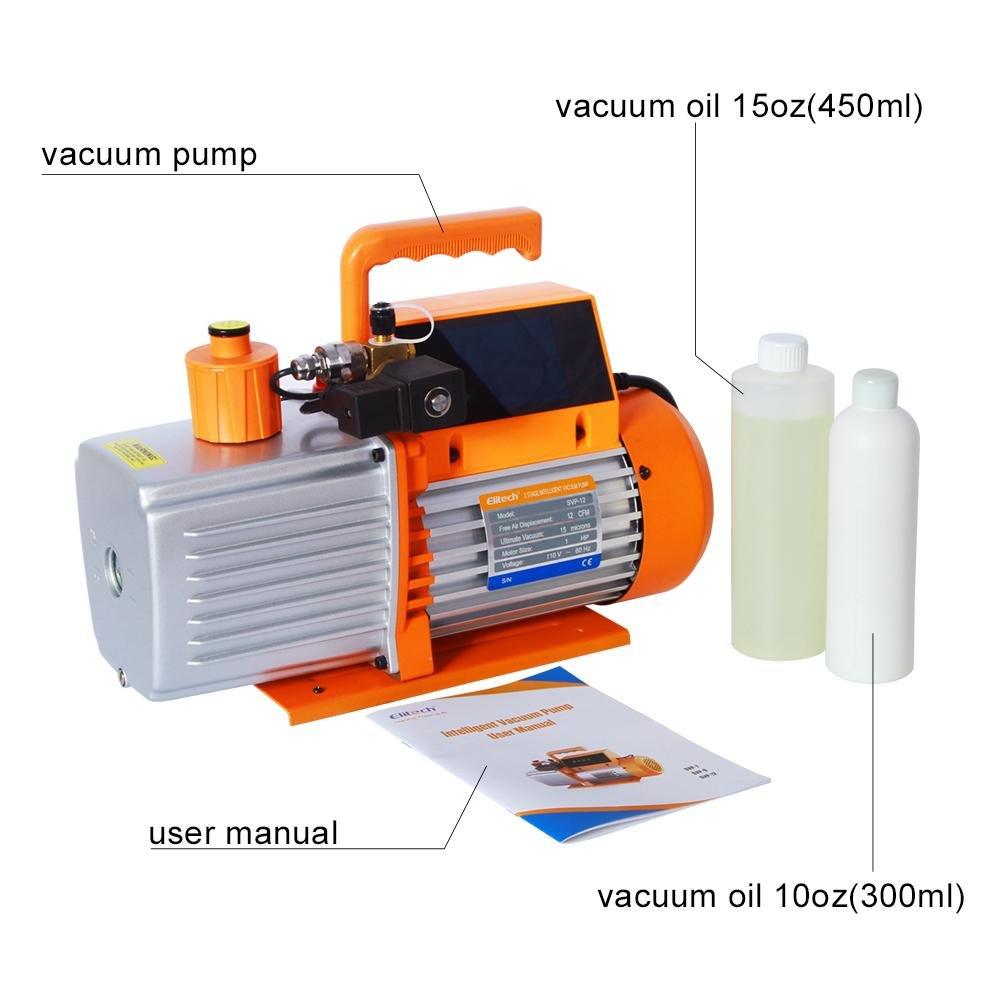

User manual 1 piece Plastic box 1 piece Electronic scale 1 piece Standby battery 1 piece

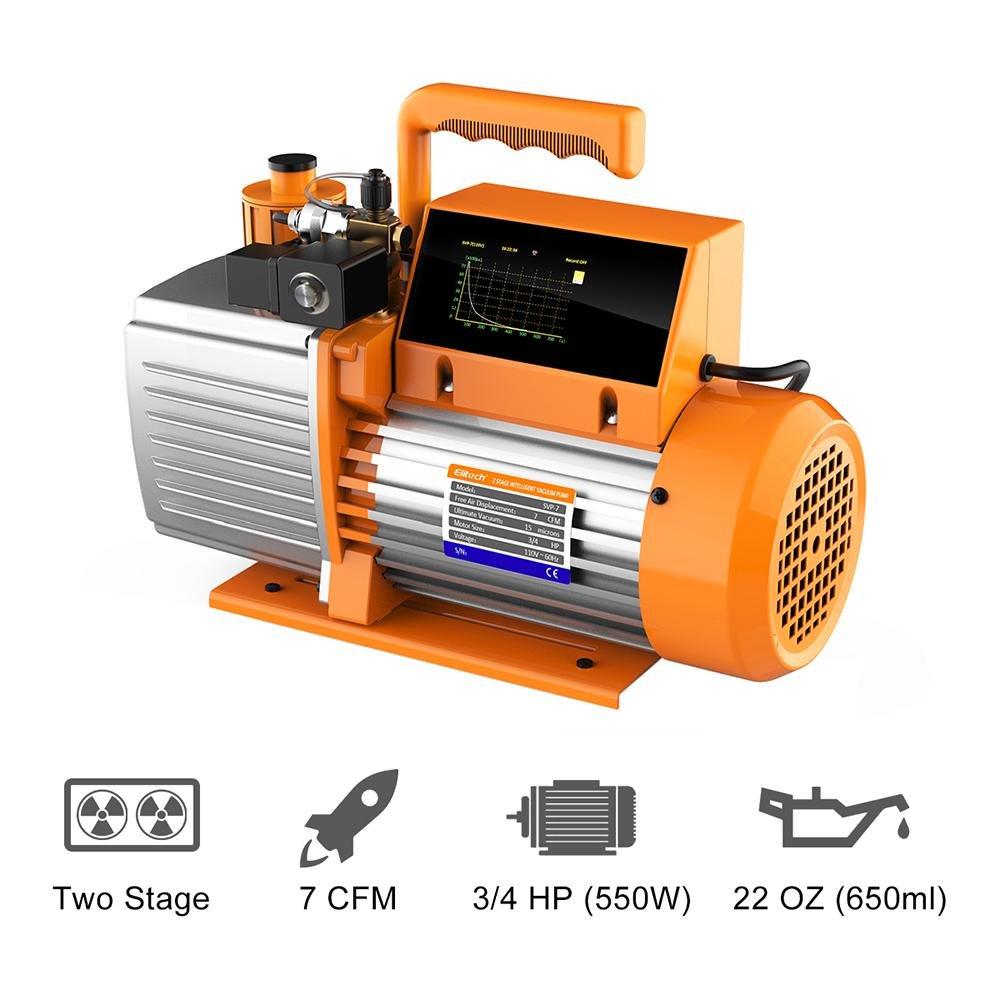

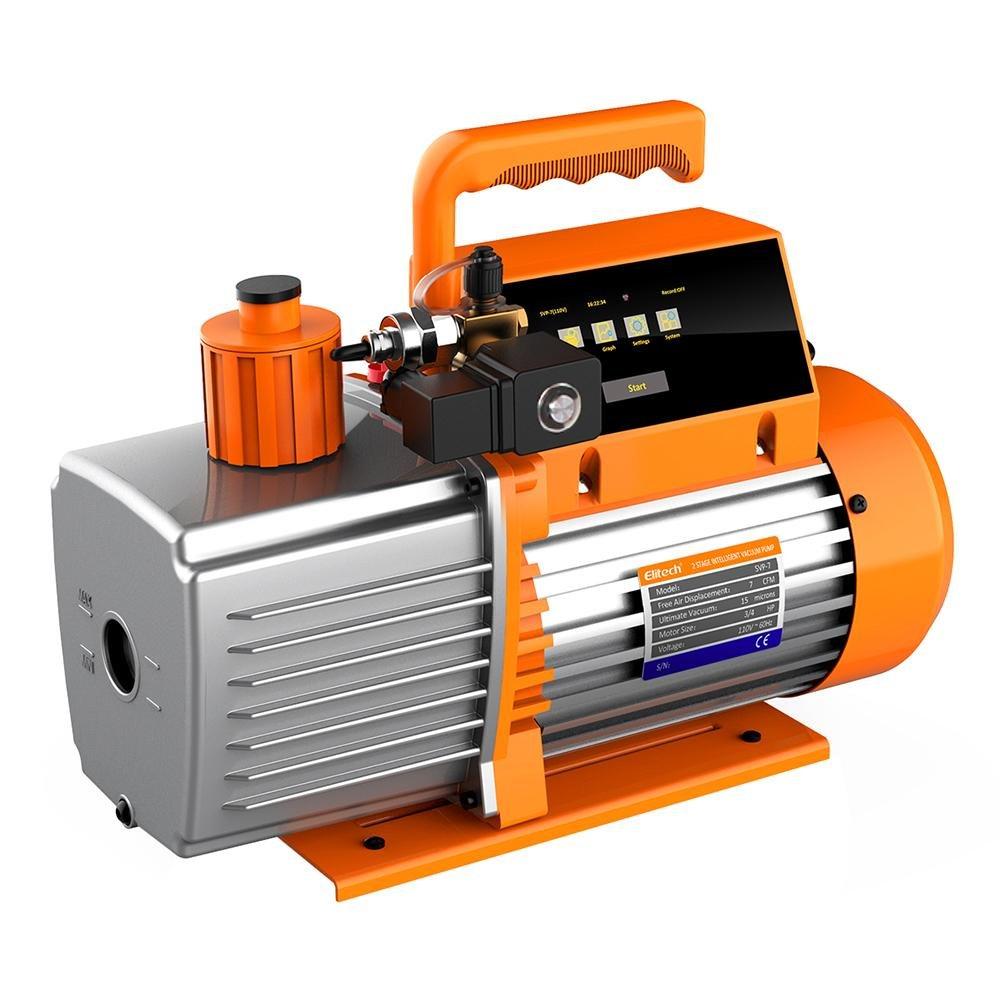

Vacuum Pump SVP-7 :
- Power supply:?110V/60HZ
- Motor:?AC Induction Motor
- Speed regualtion:?Fixed Speed
- Vacuum accuracy:?¡À10% of Reading / ¡À10 microns(@1-10000microns) ¡À20% of Reading(@10000-19000microns)
- Working environment:?5¡ãC~40¡ãC (41¡ãF~104¡ãF)
- Transmission distance:?30ft /10m
- Limit vacuum:?15 micron
- Pumping rate:?7 CFM (3 L/S)
- Motor power:?3/4 HP (550 W)
- Fuel volume:?22 oz (650 ml)

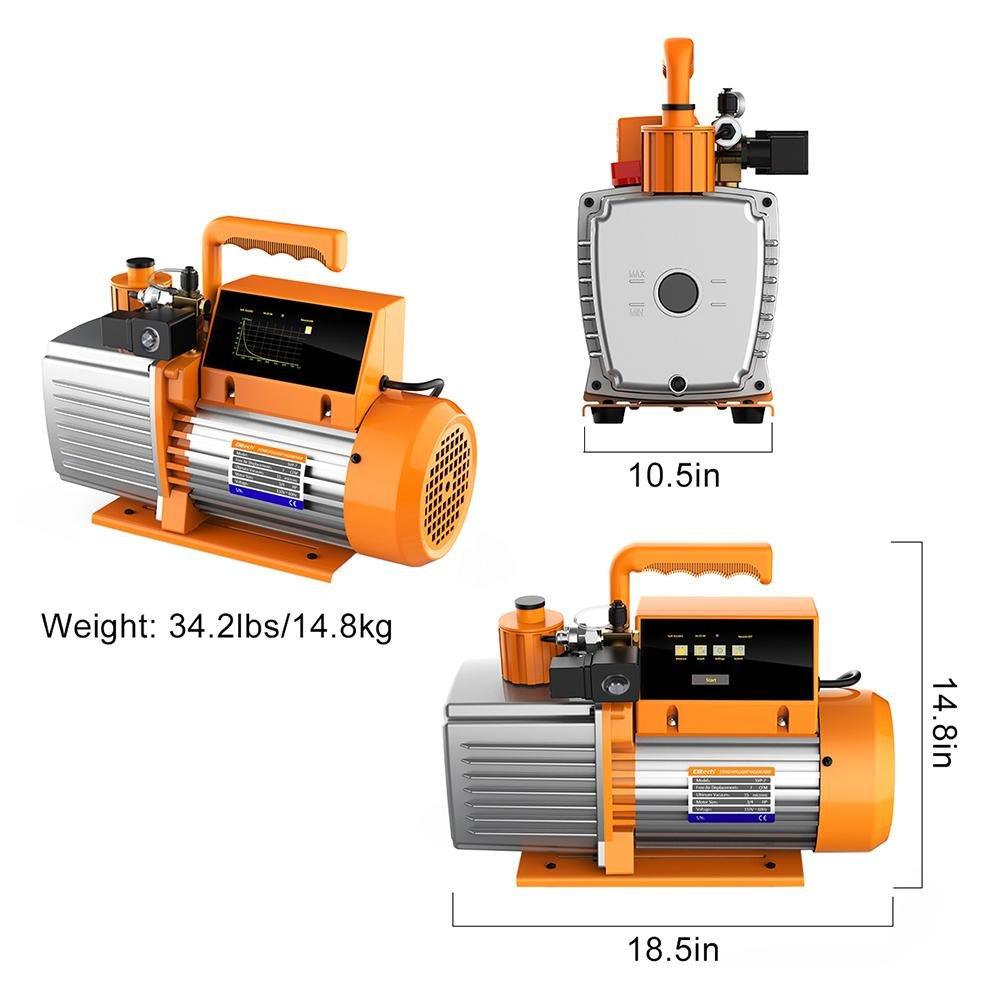

- Overall dimension:?18.5inx10.5inx14.8in (470mm*267mm*380mm)
- Weight:?34.2 lbs / 14.5 kg
- Air inlet:?1/4 SAE

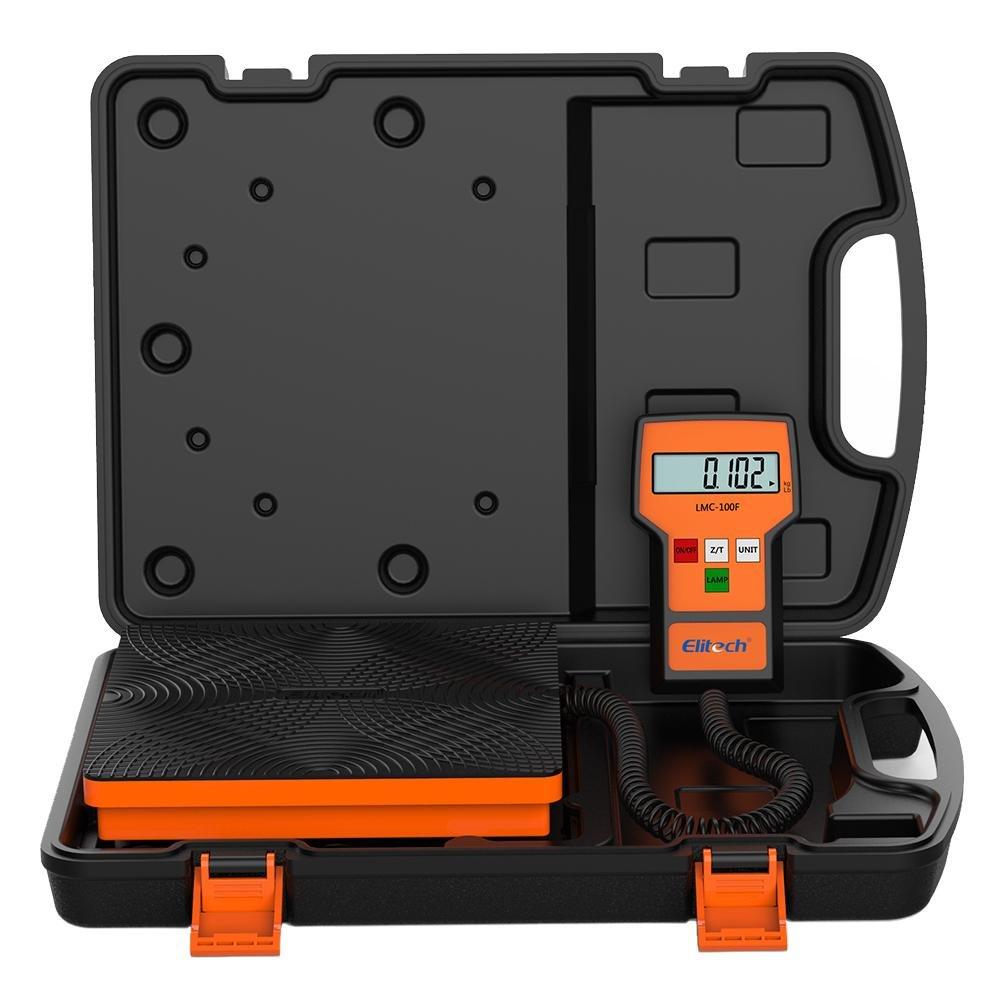

Electronic Refrigerant Scale LMC-100F:
- High capacity: 110lbs.(50kg)
- Two display modes: kgs, lbs
- Accuracy: ¡À0.05% of reading +5g
- Resolution: 2g
- Extra large LCD display with background lamp
- Slip-Resistant 9" x 9" weighing Platform
- Rugged, compact design, completely portable
- Compatible with all refrigerants
