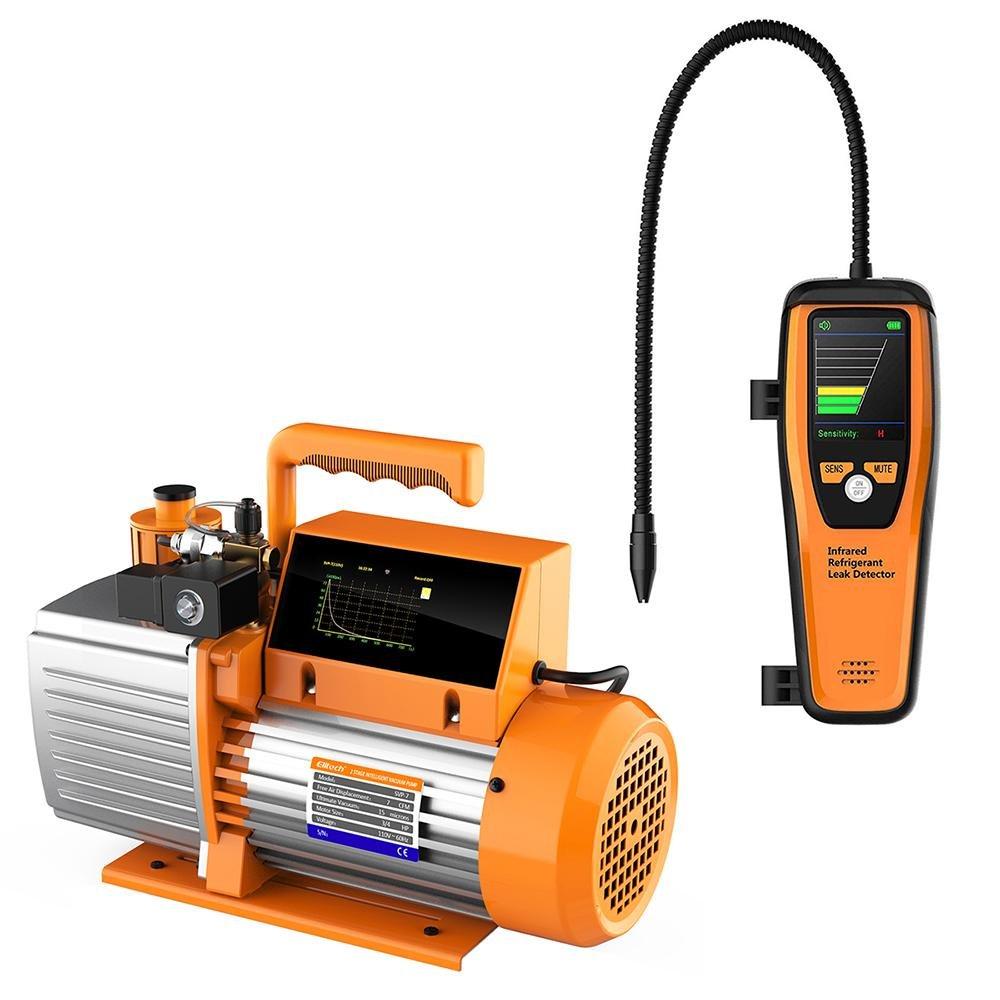

Elitech SVP-7 Vacuum Pump 7 CFM 2 Stage Intelligent HVAC ILD-100 Advanced Infrared Refrigerant Leak Detector
Intelligent Control and Prediction
Control motor and solenoid valve automatically, determine the system capacity according to the vacuum data to understand the volume of recharging refrigerants.
When the vacuum value drops below 8000Pa, the real-time vacuum graph will display.
Estimate Complete Time
When the vacuum status is close to stable, the remaining vacuuming time will display including the holding time.
4" Touch Screen
With 4" touch screen, you can check the real-time status, and complete the job in a smarter way.
Advantages Over Other Types of Refrigerant Leak Detectors

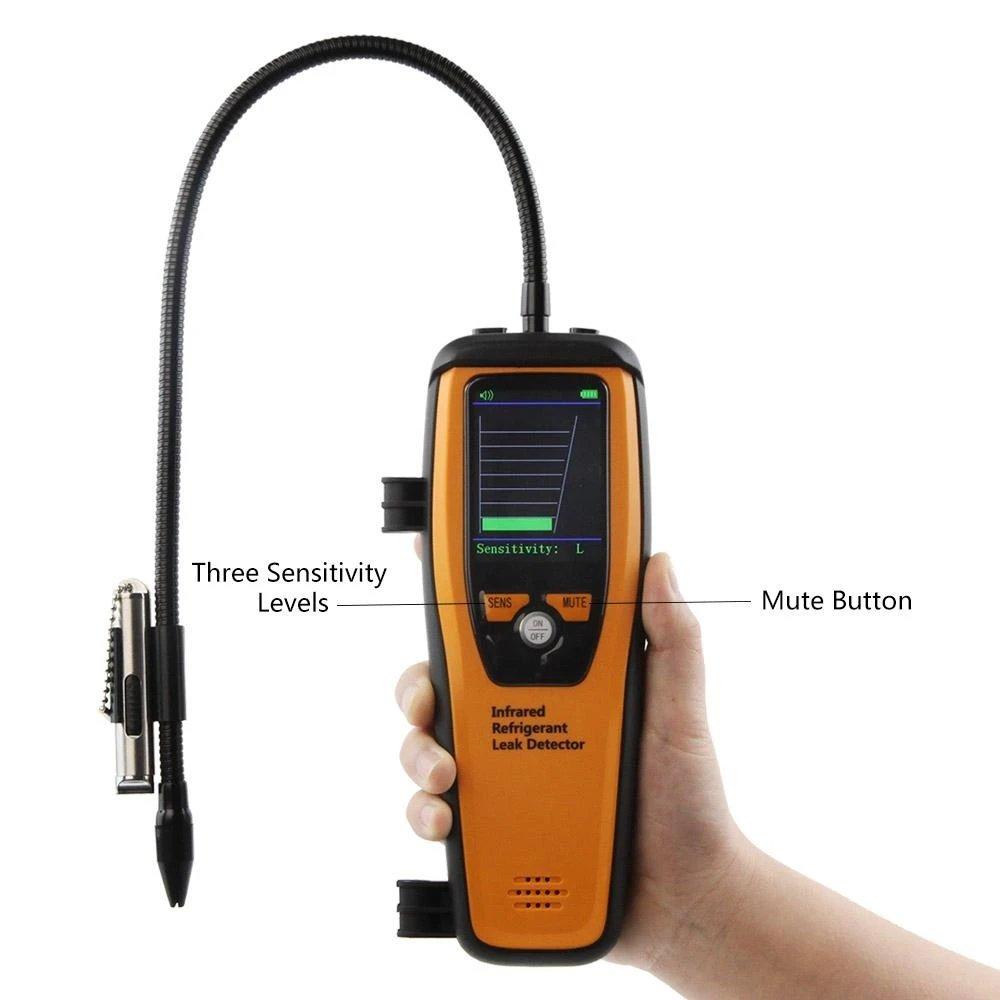

2 Separate front panel buttons
- SENS: 3 Selectable Sensitivity Levels to help you detect more accurately and faster
- MUTE: Loud alarm may cause trouble or discomfort in some factories or places, just by one press, it will make the noise disappear.
- One earphone jacket: suitable for detecting even in a noisy environment
- One Probe£º Around 14-inch flexible probe allows detection in difficult and hard-to-reach areas
First TFT Screen
- Easy and clear readings
- Animated sensitivity indication
Visual and audible alerts
- TFT LCD Display Alarm
- Buzzer Alarm
- More refrigerants, more rapidly beep,more higher alarm grade

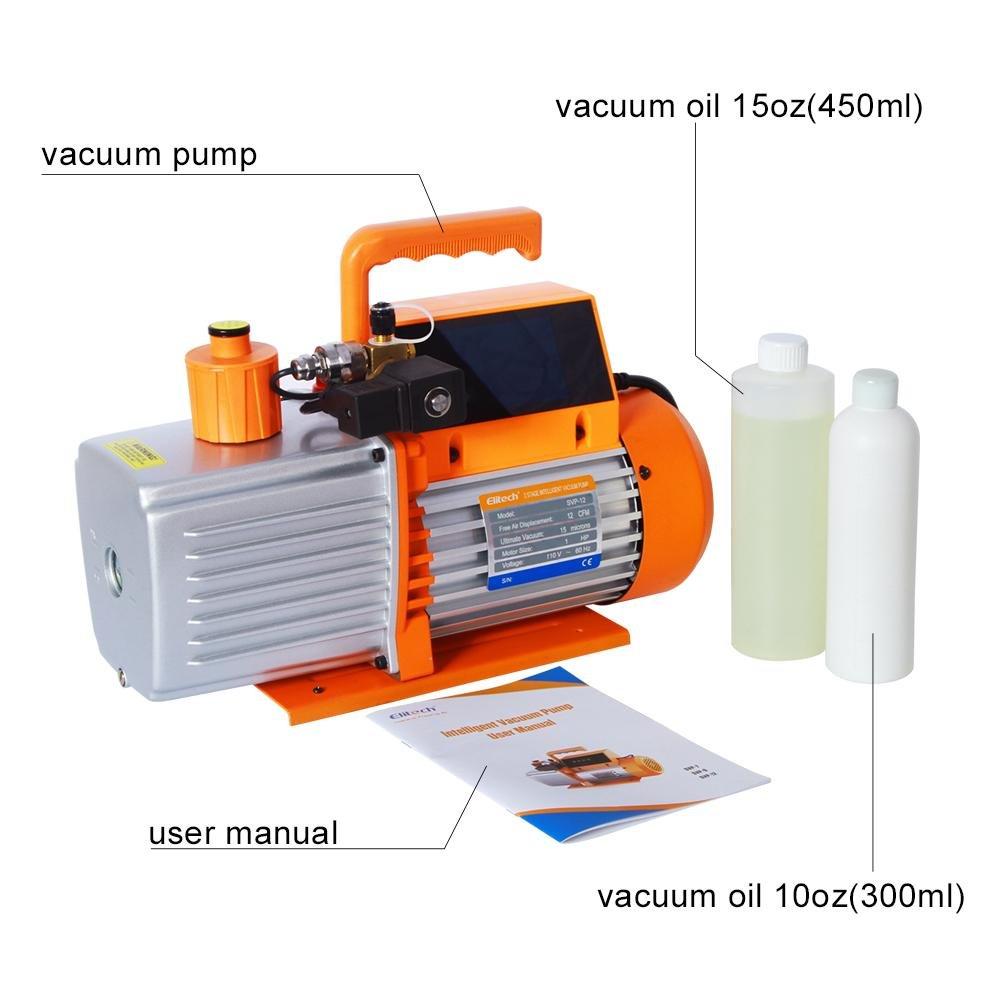

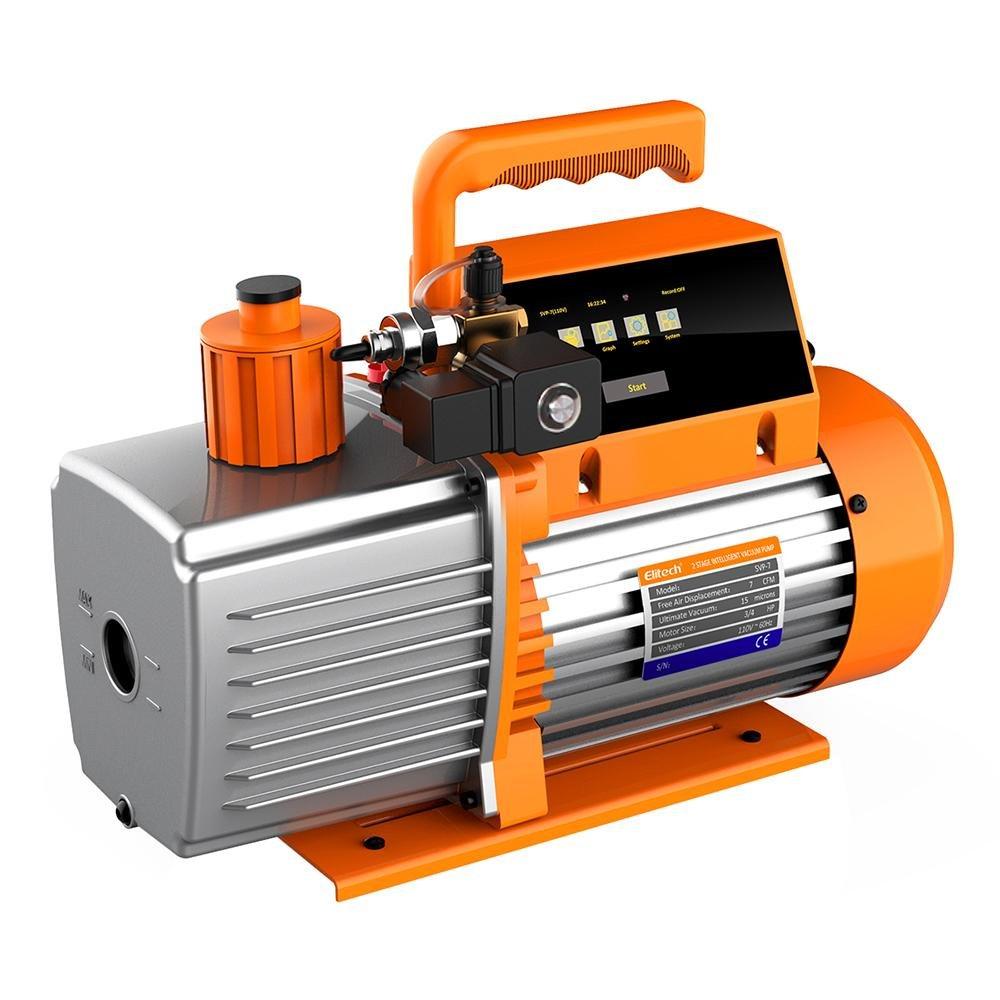

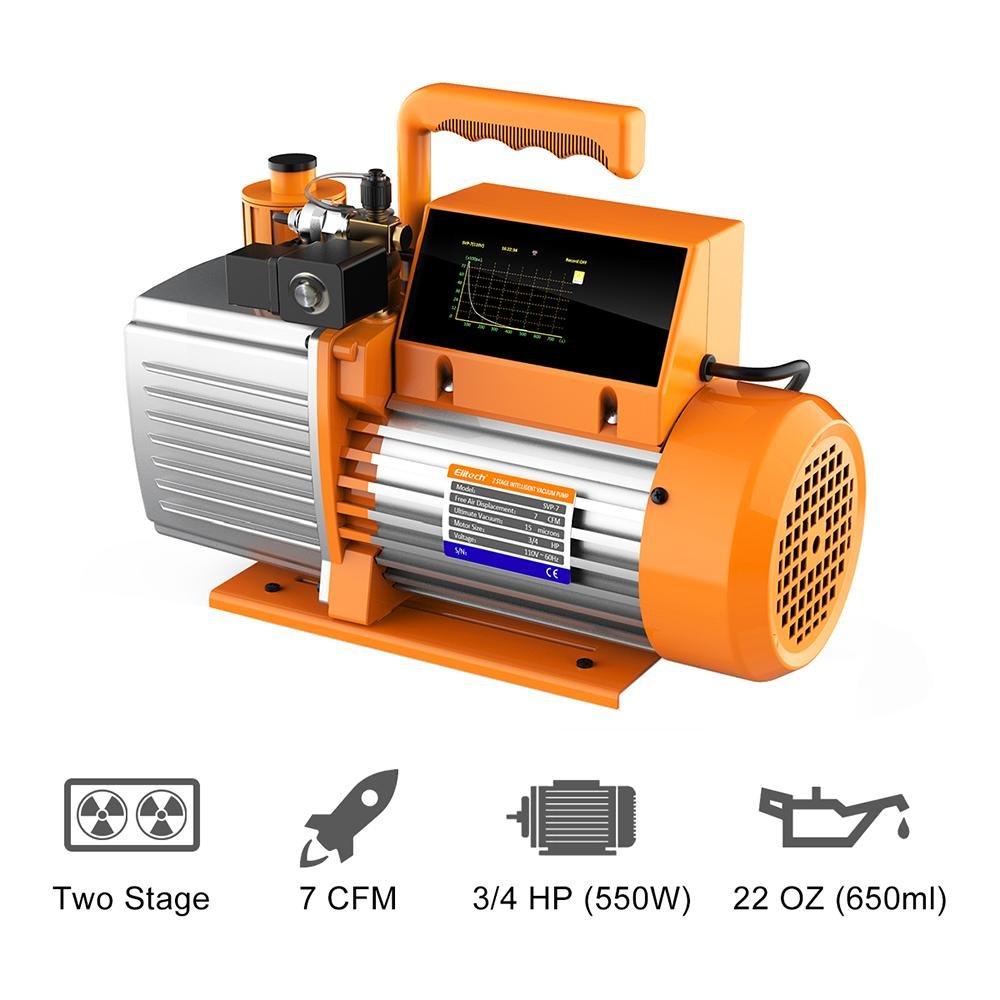

Vacuum Pump SVP-7 :
- Power supply:?110V/60HZ
- Motor:?AC Induction Motor
- Speed regualtion:?Fixed Speed
- Vacuum accuracy:?¡À10% of Reading / ¡À10 microns(@1-10000microns) ¡À20% of Reading(@10000-19000microns)
- Working environment:?5¡ãC~40¡ãC (41¡ãF~104¡ãF)
- Transmission distance:?30ft /10m
- Limit vacuum:?15 micron
- Pumping rate:?7 CFM (3 L/S)
- Motor power:?3/4 HP (550 W)
- Fuel volume:?22 oz (650 ml)

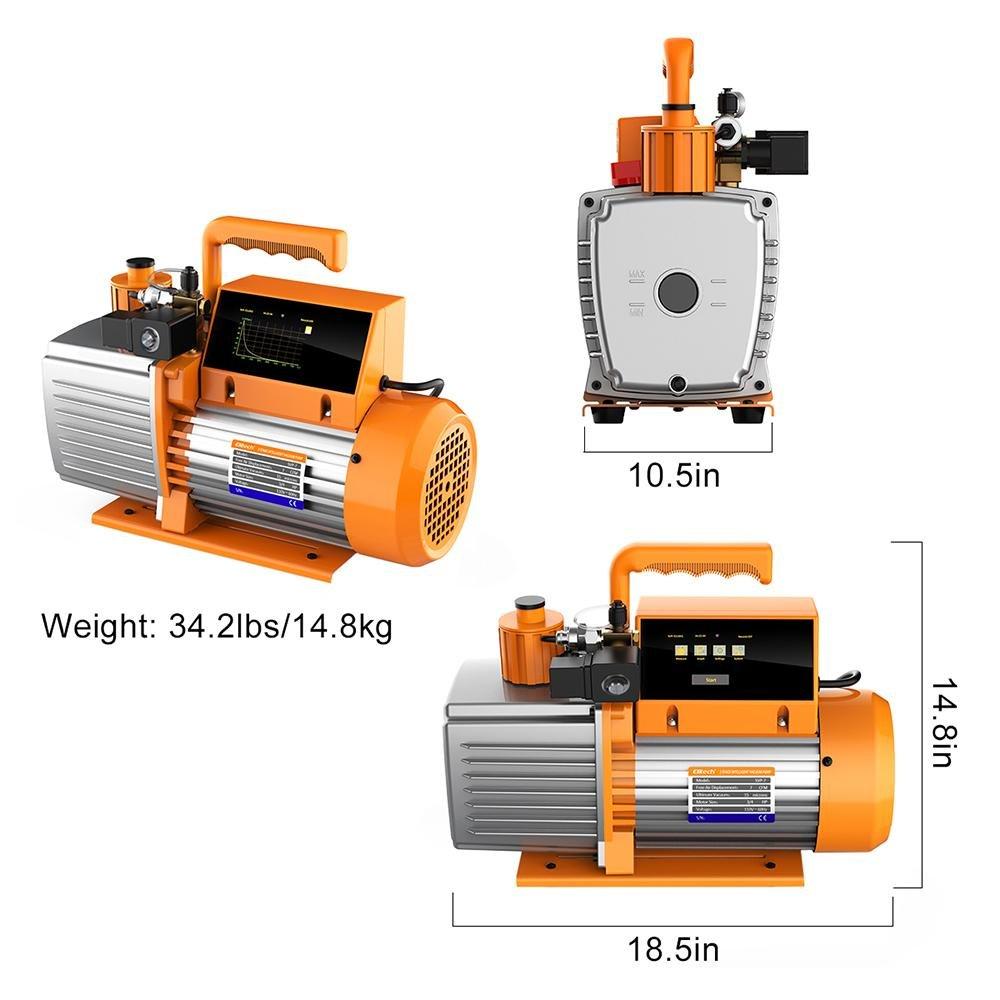

- Overall dimension:?18.5inx10.5inx14.8in (470mm*267mm*380mm)
- Weight:?34.2 lbs / 14.5 kg
- Air inlet:?1/4 SAE

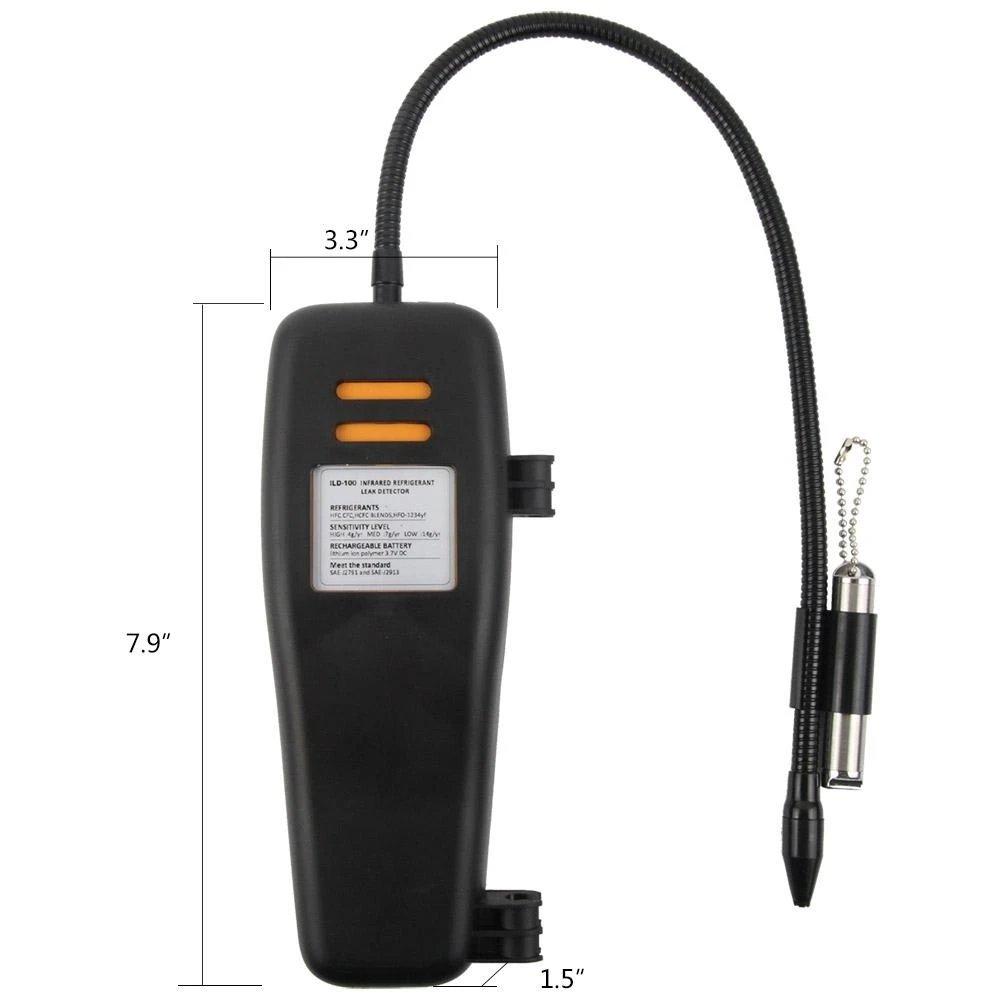

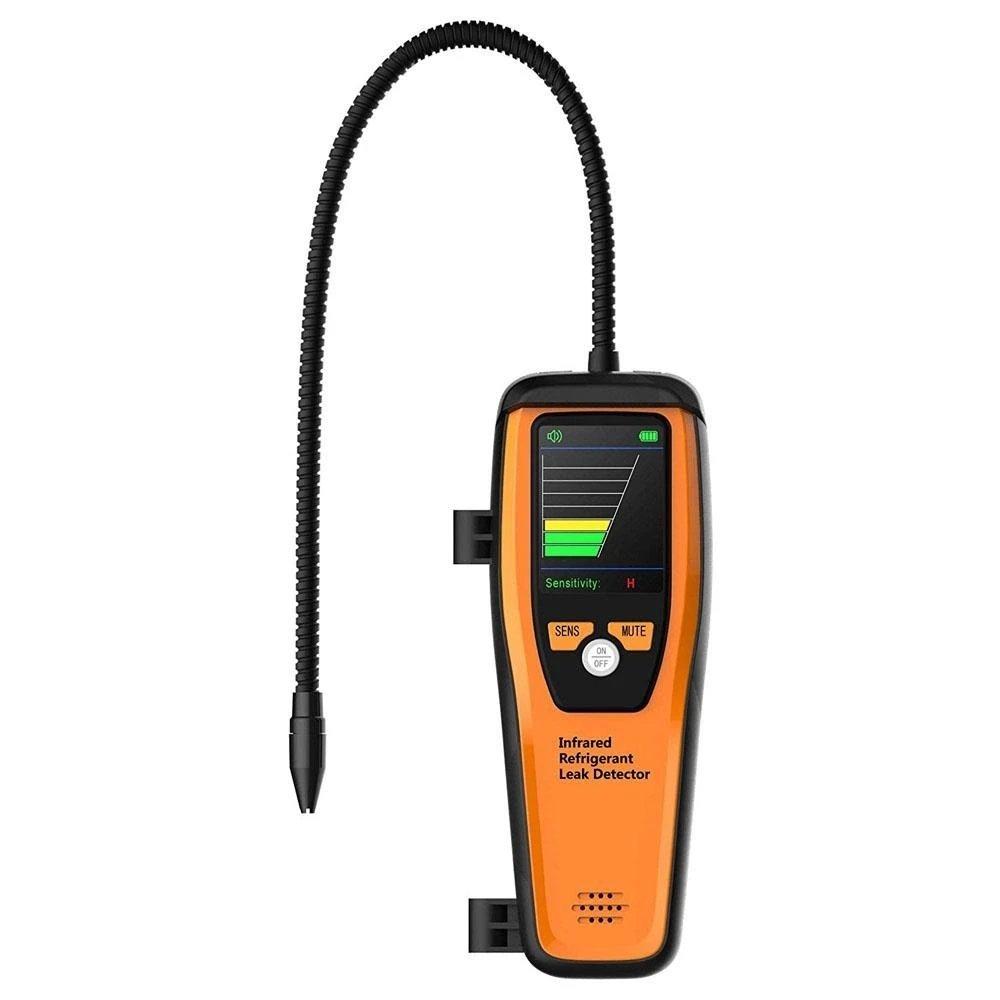

Infrared?Refrigerant Leak Detector ILD-100:
- Sensor principle: Infrared spectrum absorption
- Sensor life: 10 years
- Sensitivity: max 4g/yr
- Alarm mode: sound and light alarm, TFT LCD display
- Automatic shutdown: 10 minutes without operation
- Battery: built-in rechargeable lithium battery 3.7V 3000mAh
- Working time: continuous 6H
- Charging: 4 hours
- Operating environment: -10¡ãC-52¡ãC, relative humidity(50%85%RH)
- Storage temperature: -20¡ãC to 60¡ãC(-4¡ãFto140¡ãF)
- Weight: 415g (14.6oz)
- Size: 201mm*86mm*38mm (7.9"3.3"*15")
- Certification: SAE J1627, SAE J2791, SAE J2913: EN14624: 2012: CE
