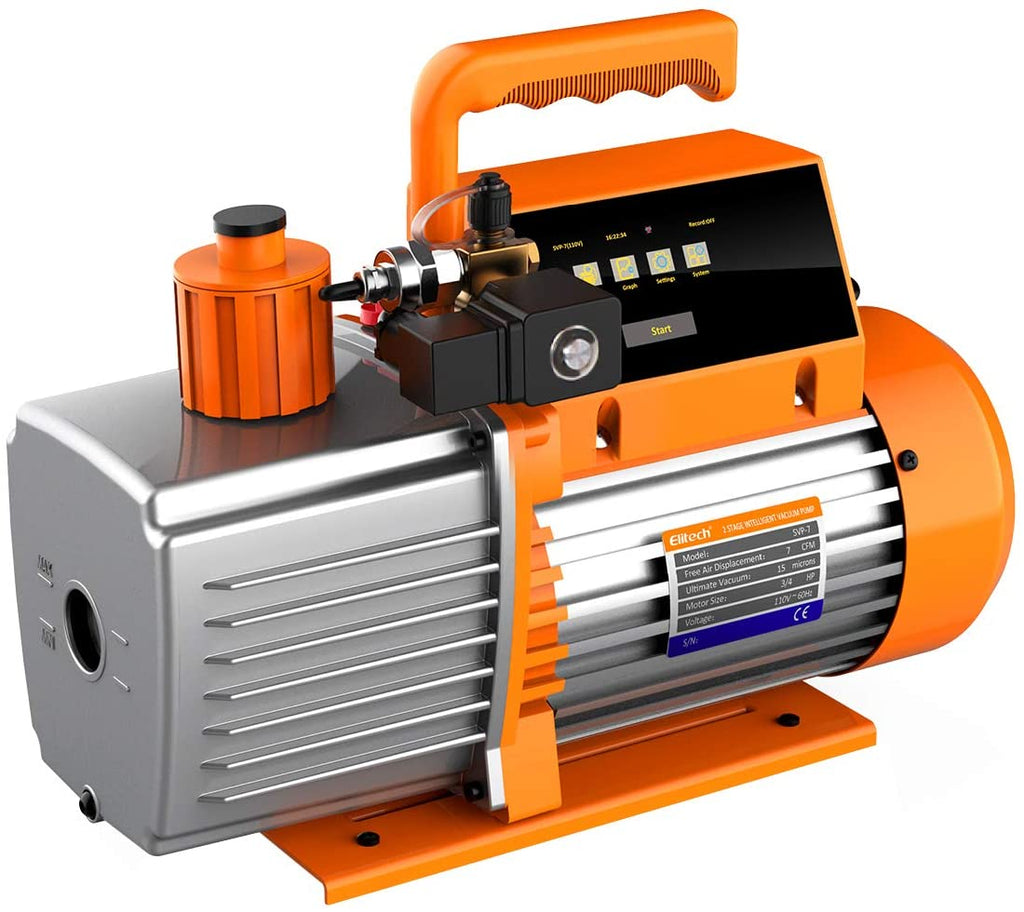

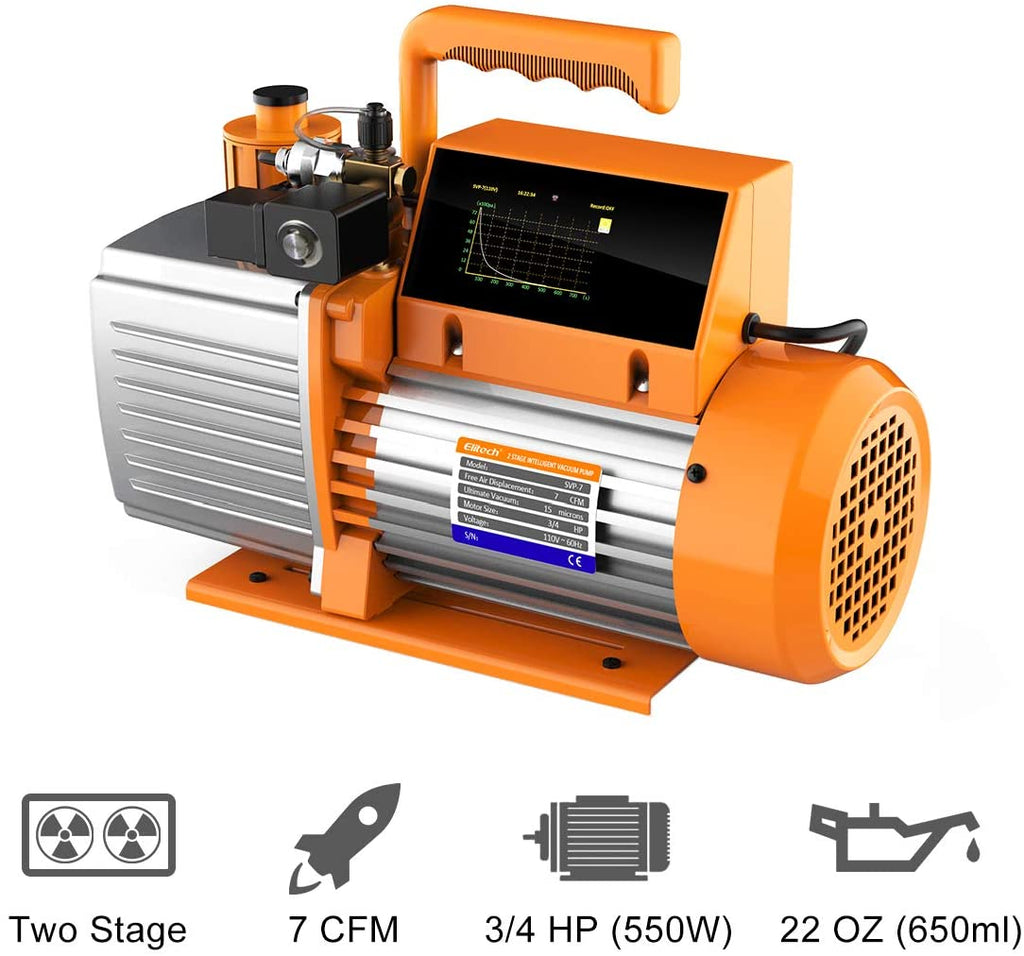

Elitech SVP-7 Smart HVAC Vacuum Pump View Vacuum Value in Graph on Touch Screen

2 sold in last 8 hours
In stock
SVP-7
$631.99
Elitech SVP-7 refrigerant vacuum pump is a 7 CFM, dual-stage unit with an innovative touch screen design. The screen displays the data change in the graph to help you know more about how your HVAC job is going on.  SVP-7 enables your mobile App to connect with the pump in order...
$631.99
customers are viewing this product
Elitech SVP-7 2 Stage Vacuum Pump -2

Elitech SVP-7 refrigerant vacuum pump is a 7 CFM, dual-stage unit with an innovative touch screen design. The screen displays the data change in the graph to help you know more about how your HVAC job is going on.  SVP-7 enables your mobile App to connect with the pump in order to realize remote control, setting, real-time reading, and data report export  function to make your work more conveniently.

Features

  • Safe Operation】Motor and valve switch automatically, make your work safe and more reliable. Determine the system capacity according to the vacuum data to understand the volume of recharging refrigerants
  • Intelligent Prediction】Predict the leakage status and remaining operating time.

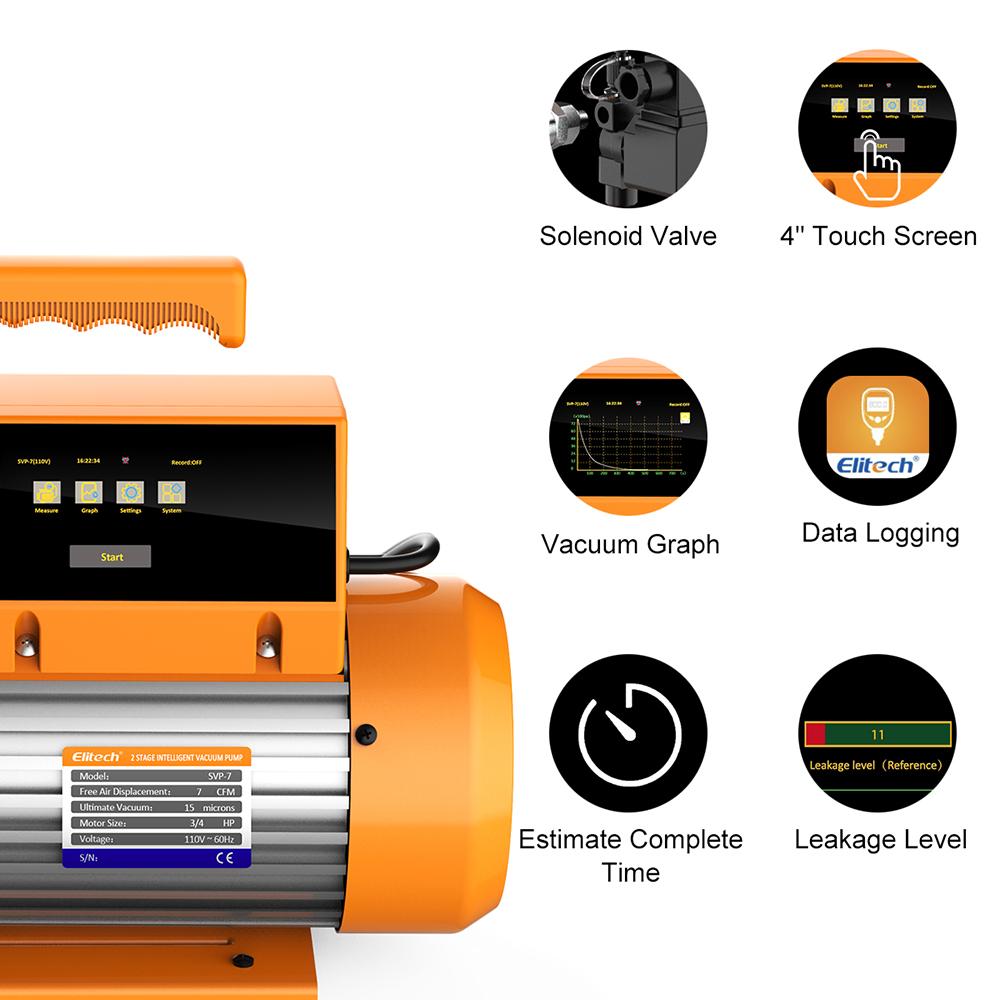

  • Vacuum Data in Graph】View job process in real-time on the 4'' touch screen. The graph makes it easier and more convenient to know how your data changes.

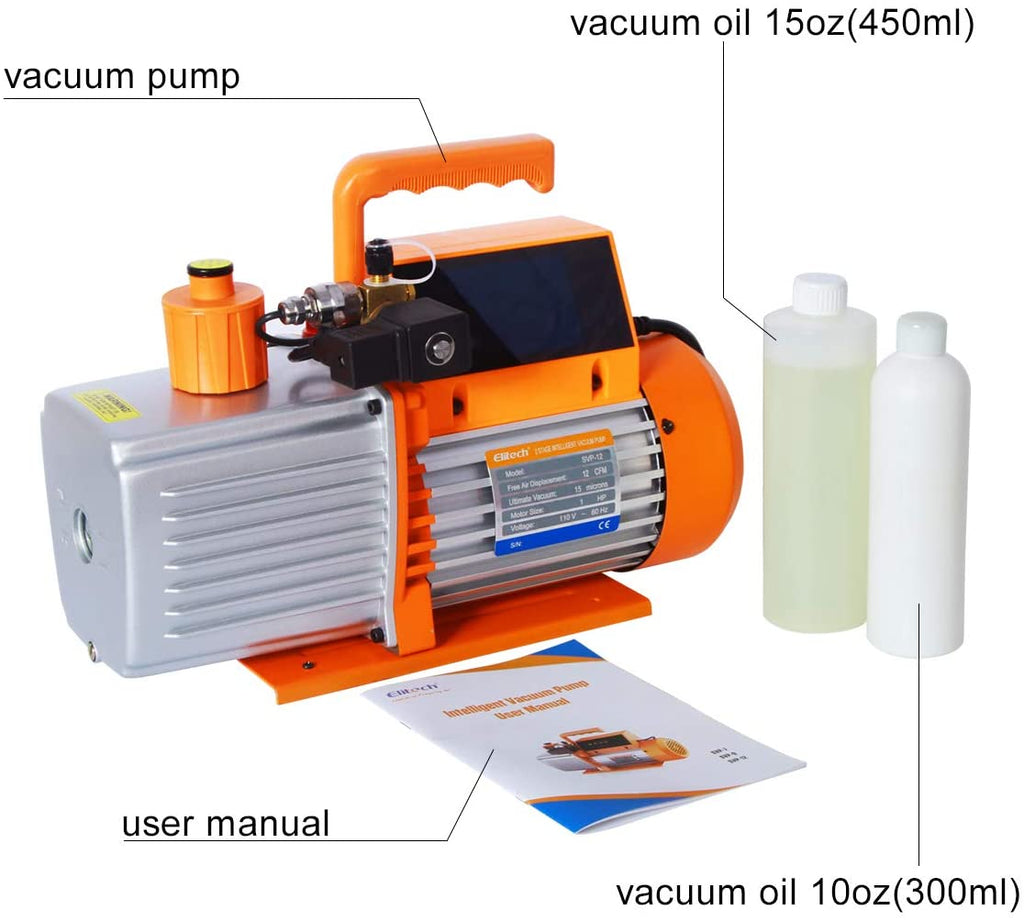

  • User-friendly Design】Remote control, setup, and data view via mobile App, including customizing units and logging interval. Vacuum oil (300ml+450ml) is included.
  • Professional Performance】Years of manufacturing equipment in the professional field of air conditioning. Suitable for any HVAC job you might have!





User manual: Download

Certificate: CE

Video: Vacuum Pump Operation Instruction

30 Days Free Return

1 Year Warranty

Elitech SVP-9 Vacuum Pump -4





Technical Parameter

Model SVP-7
Stage 2 Stages
Power Supply 110V/60HZ
Motor AC Induction Motor
Speed Regulation Fixed Speed
Vacuum Accuracy

±10% of Reading / ±10 microns(@1-10000 microns)

±20% of Reading(@10000-19000 microns)

Operating Temperature 5°C~40°C (41°F~104°F)
Transmission Distance 30ft / 10m
Limit Vacuum 15 microns
Pumping Rate 7 CFM (3 L/S)
Motor Power 3/4 HP (550 W)
Fuel Volume 22oz (650ml)

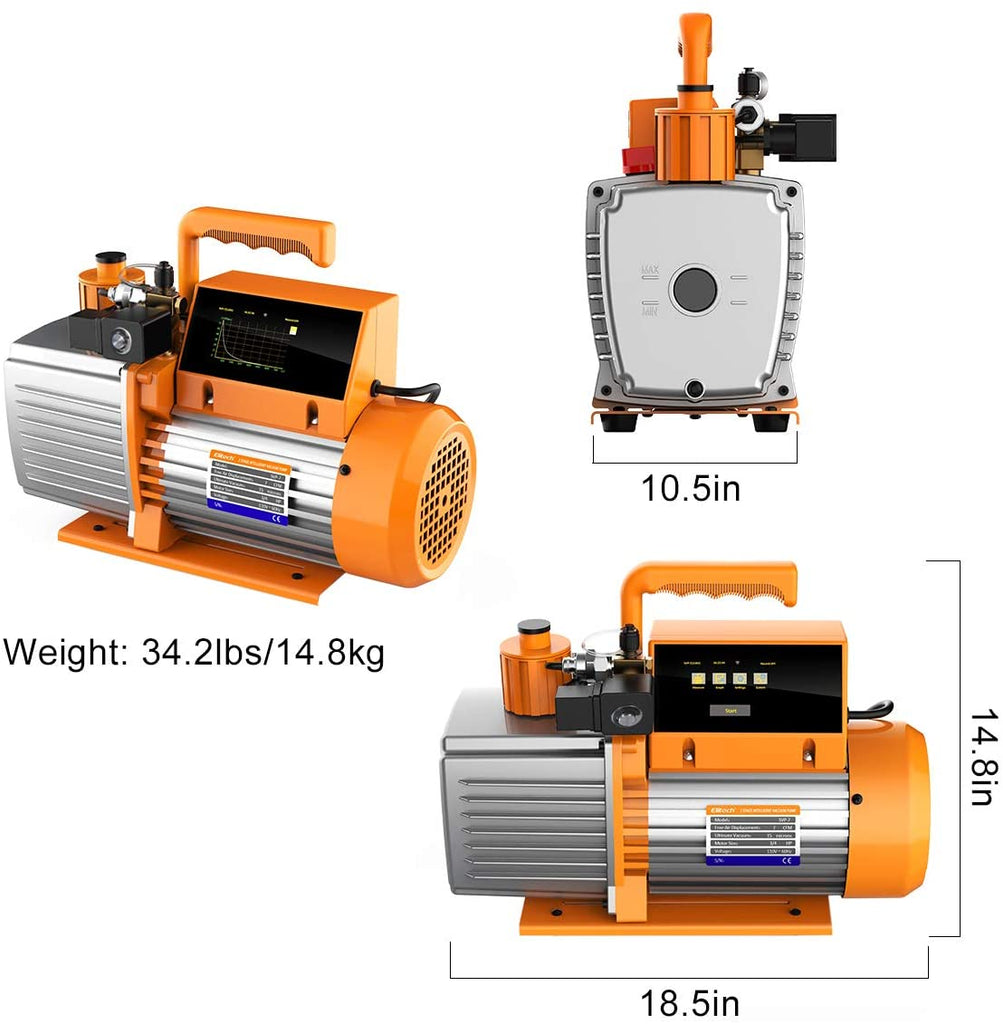

Overall Dimension 18.5inx10.5inx14.8in (470mm*267mm*380mm)
Weight 34.2lbs / 14.8kg
Air Inlet 1/4 SAE
