Elitech SVP-12 Intelligent HVAC Vacuum Pump 12 CFM 2 Stage with Touch Screen

2 sold in last 8 hours
In stock
SVP-12
$1,650.99 $719.99
Elitech SVP-12 HVAC vacuum pump is a 12 CFM, dual-stage unit with an innovative touch screen design. The screen displays the data change in the graph to help you know more about how your HVAC job is going on.  SVP-12 enables your mobile App to connect with the pump in order...
$719.99
customers are viewing this product

Elitech SVP-12 Vacuum Pump -3

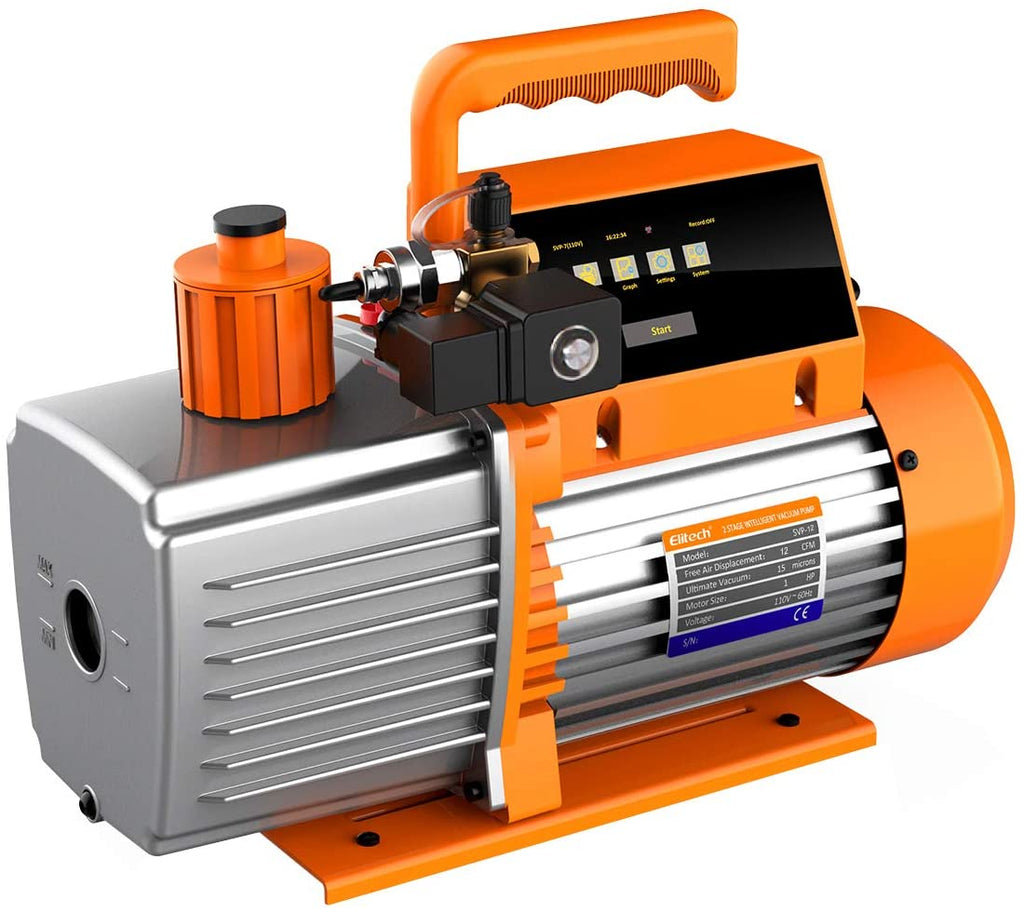

Elitech SVP-12 HVAC vacuum pump is a 12 CFM, dual-stage unit with an innovative touch screen design. The screen displays the data change in the graph to help you know more about how your HVAC job is going on.  SVP-12 enables your mobile App to connect with the pump in order to realize remote control, setting, real-time reading, and data report export conveniently.

Feature

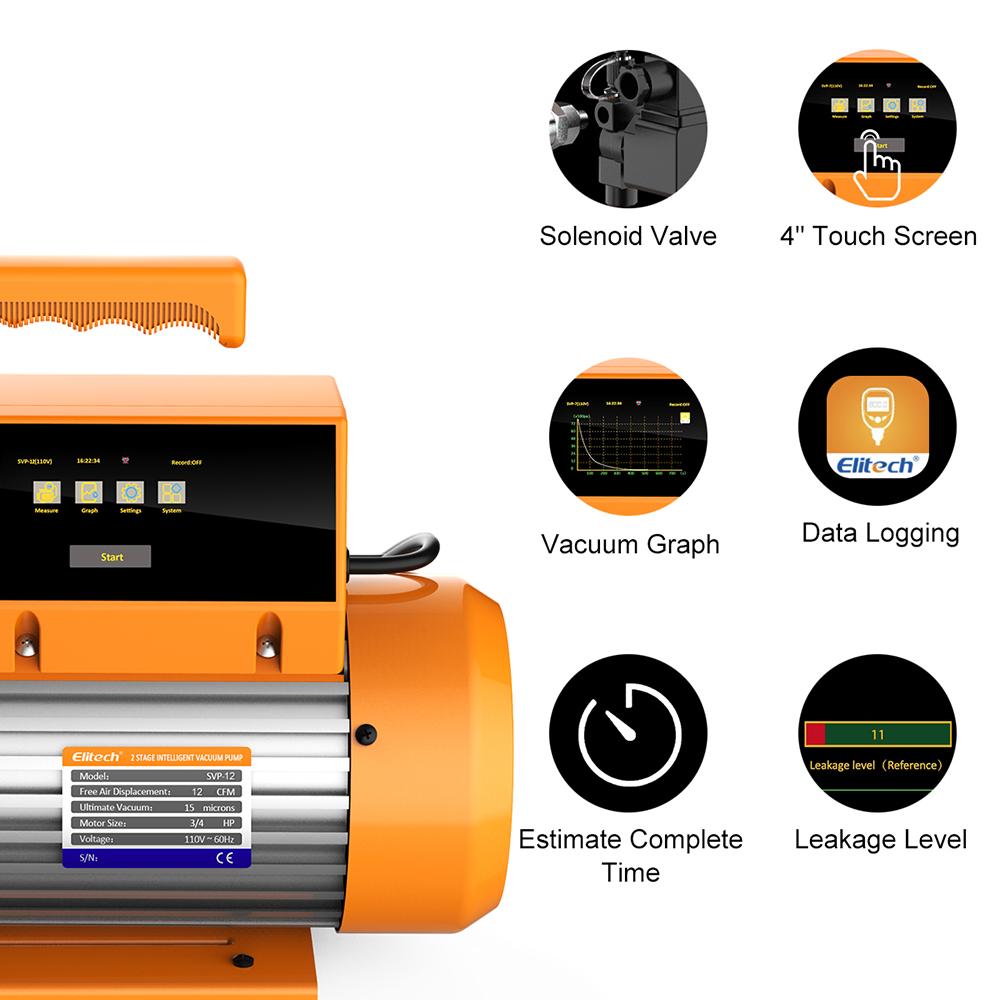

  • Intelligent Control and Prediction - Control motor and solenoid valve automatically, determine the system capacity according to the vacuum data to understand the volume of recharging refrigerants.
  • Vacuum Change in Graph - View the vacuum process in real-time; Predict the leakage status and job completion time
  • Monitoring data via App during the whole process of vacuuming - Monitor data via APP during the entire vacuum process set your desired units and log interval
  • Smart, Efficient & Reliable - Constantly vacuum control, oil tank and motor temperature monitoring

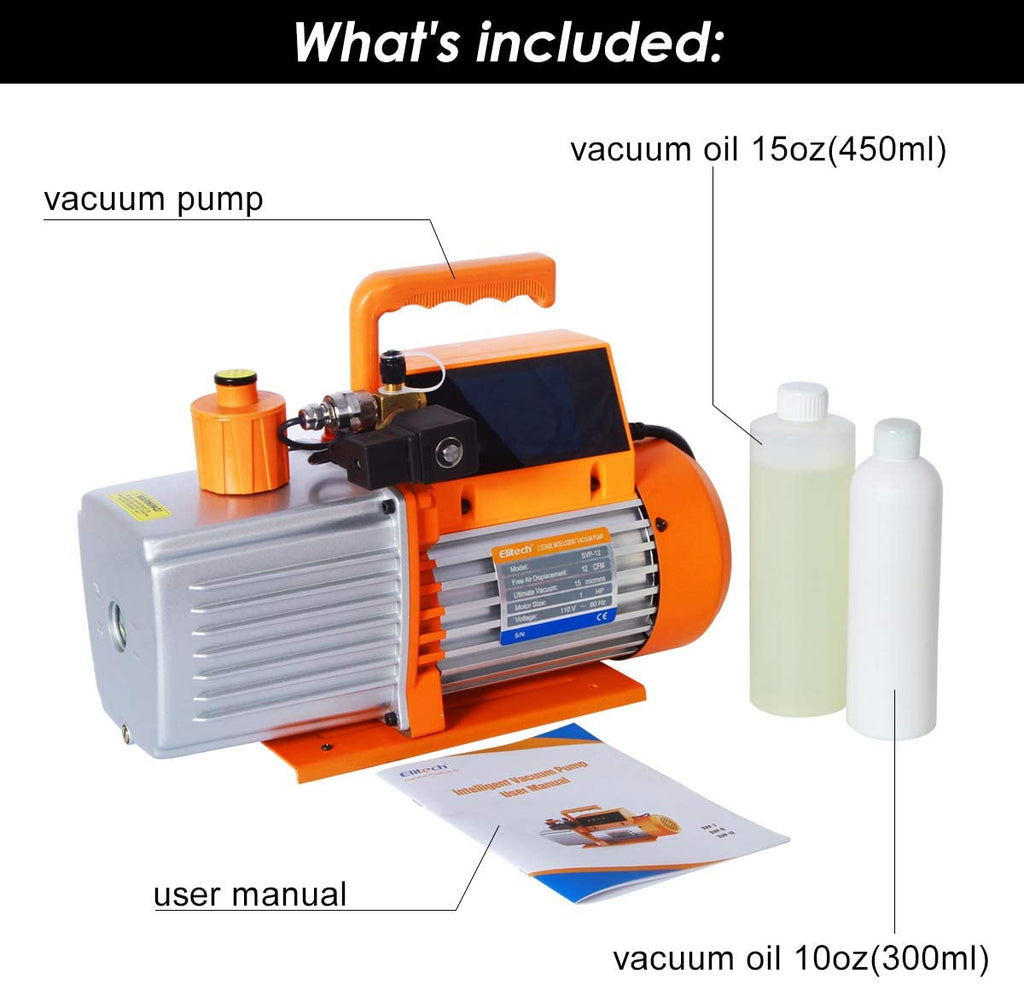

  • Easy to Use - 4" touch screen, monitoring via App. Comes with 2 bottles of vacuum oil (300ml+450ml)





    User manual: Download

    Certificate: CE

    Video: Vacuum Pump Operation Instruction

    Service: 30 Days Free Return & 1 Year Warranty

    Technical Parameter

    Model  SVP-12
    Stage 2 stages
    Power Supply 110V/60HZ
    Motor AC Induction Motor
    Speed Regulation Fixed Speed
    Vacuum Accuracy ±10% of Reading / ±10 microns(@1-10000microns) ±20% of Reading(@10000-19000microns)
    Working Environment 5°C~40°C (41°F~104°F)
    Transmission Distance 30ft /10m
    Limit Vacuum 15 micron
    Pumping Rate 12 CFM (5 L/S)
    Motor Power 1 HP (750 W)
    Fuel Volume 25.3 oz (750 ml)

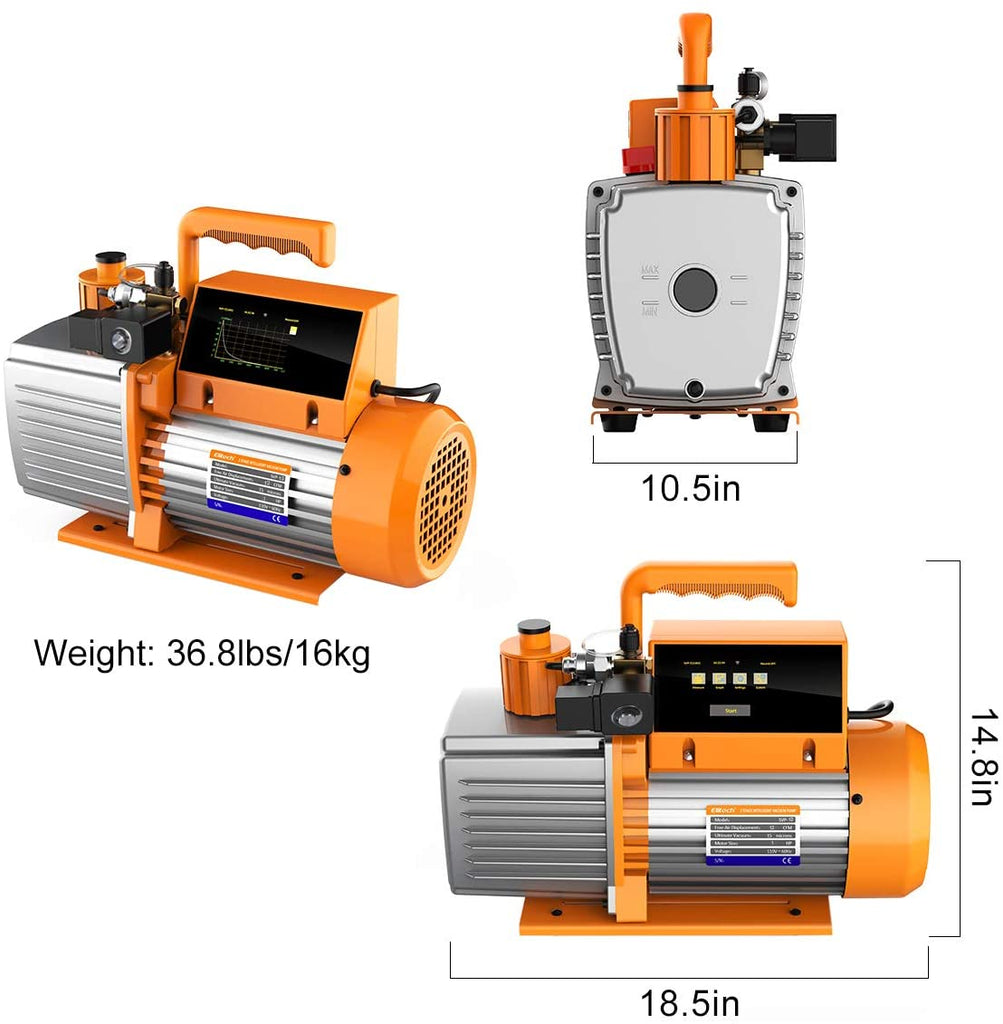

    Overall Dimension 18.5inx10.5inx14.8in (470mm*267mm*380mm)
    Weight 36.8 lbs / 16 kg
    Air Inlet 1/4 SAE
