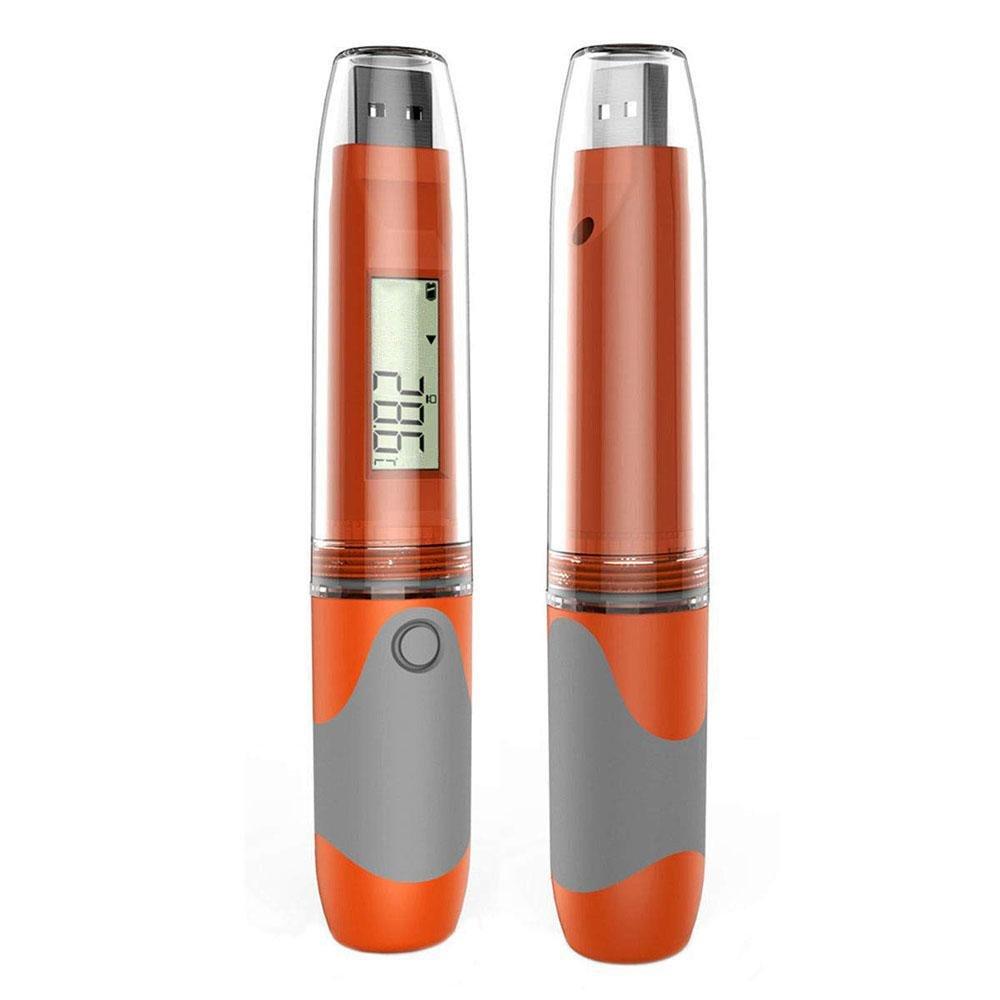

Elitech RC–51 Waterproof USB temperature data logger is ideal for pharmaceuticals, medical cabinets, fresh food cabinets, laboratories, etc. You can use it to monitor and record temperature in cold chain management that requires a quick response data logger.

All Elitech Waterproof USB Temperature Data loggers are durable and strong due to their transparent waterproof and crash-proof PC casing. Every part is subjected to strict quality inspection as per the FDA & CE standards.

Every Elitech Waterproof USB Temperature Data logger has: multifunction LCD display, large memory capacity, 2-year battery life, LED and ability to auto-generate data reports. This makes the RC-51 data logger convenient and efficient equipment to monitor the temperature of sensitive goods.

The pen-style design, multiple temperature zone statistics and multiple options of time zones; makes it adaptable and versatile equipment in all industries. A compact design, multiple times of start and stop and one-button operation makes it easy to use.

This Elitech data logger features a replaceable battery, unique MKT algorithm, IP67 high protection grade and one-button operation.

Features:

• 【Multi-use Data Logger】Adopts a temperature sensor with high accuracy and records up to 32,000 temperature points.
• 【Plug and Read】No cable or reader required, the USB connector enables quick connection to PCs to download data.
• 【Wide Temperature Range】temperature measuring range: -22℉~158℉/-30℃~70℃; accuracy reaches to ±0.9 ℉.
• 【 Powerful LCD Indication】Provides all key information for recordings incl. alarm status, temperatures statistics (in ℃/℉) and etc.
• 【2 Year Battery Life*】Powered by ER2450 lithium battery that comes along for free and the battery could last up to 2 years*.
• Generate PDF report automatically without operating any software
• Display Type: multifunction LCD,status indicator
• High protection grade: IP67, a wide range of applications
• High accuracy sensor with long-term stability property
• Multi-use, USB port, plug and play easily.
• Large Record Capacity: 32,000 points, support data cycle and cover
• MAC/WIN supported free software with adjustable log interval 10s-24h
• High/low-temperature alarm setting/multiple alarm setting
• 1-year warranty.

Parameters:

• Temperature measuring range: -30℃~70℃/-22℉~158℉
• Resolution: 0.1℃
• Sensor: Built-in NTC thermistor
• Temperature accuracy: ±0.5℃ (-20℃~40℃); ±1℃ (others)
• Record capacity: 32000 points (MAX)
• Alarm type: continuous, cumulative
• Alarm setting: no alarm, upper/lower limit alarm, multiple alarms
• Record interval: 10 sec ~ 24 hour continuously set
• Data interface: USB
• Report type: PDF format doc
• Power supply: Lithium battery 3.6V (replaceable)
• Battery life: at least 12 months at 25℃ with 15 min record interval
• Dimension: 131mm*24mm

Note:

• Single alarm: When the measured temperature data exceeds a certain threshold and alarm delay does not elapse, the alarm event will not be triggered and the duration will be reset. When the duration is longer than alarm delay, the alarm event is triggered.
• Cumulative alarm: When the measured temperature data exceeds a certain threshold and alarm delay does not elapse, the alarm event will not be triggered and the duration will be saved. If such an event occurs again, the duration will accumulate. When the accumulative duration is longer than alarm delay, the alarm event is triggered.

Package:

• 1* Elitech RC-51 recorder
• 1* Use Manual

How to Download Software for Windows&macOS？
Please visit https://www.elitechustore.com/pages/download download and install the software as instructed in the user manual.
