- Free App (iOS and Android): Settable high/low pressure alarm, you can receive remote notifications when readings is beyond the pre-set value. The data could be saved and exported in Excel and PDF format.
- Offline Record: The wireless bluetooth pressure digital gauge records data offline and transmit the current pressure value to app automatically which helps you to search data at any time and any where.
- Multiple Refrigerants and units: Support the saturated temperature-pressure comparison table more of 87 kinds of refrigerants. And units can be alternated between 7 units: psi, kg/m.3, cmHg, inHg, bar, Kpa, Mpa
- Automatic Calculation: Super-heat and sub-cool can be calculated automatically to reduce the error by manual calculation.
- Waterproof: The pressure gauge is made by ABS and PPT and the waterproof level is IP65.
- Real-time display of current pressure value;
- Auto calculation of degree of super-heat and sub-cool;
- Various types of refrigerants are available;
- Settable high/low pressure alarm;

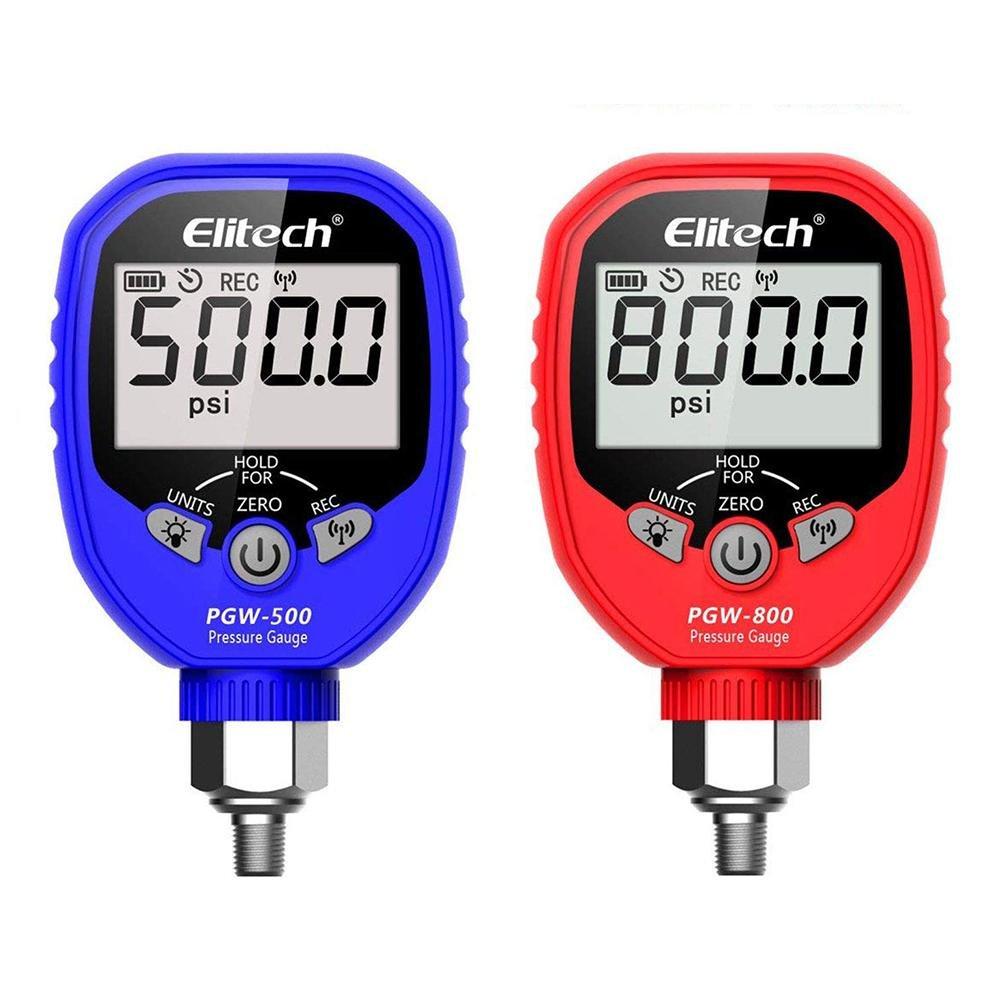

- Pressure measuring range: PGW-500 (-14.5~500psi);PGW-800 (-14.5~800psi)
- Resolution: 0.5psi
- Accuracy: ¡À0.5% FS
- Measurement units: psi,kg/cm2, cmHg, bar, kPa, MPa
- Battery life: 160 hours
- Maximum overload pressure: 750psi
- Operating temperature: -17.8¡ãC-60¡ãC(0¡ãF-140¡ãF)
- Dimension: 127mmx73mmx37mm
- Please use the gauge in specified environment to avoid error or damage of the sensor;
- Please do not use chemical solvent or corrosive to clean the gauge;
- Please do not disassemble the gauge;
- Remove the batteries if the gauge is not in used for a long time to avoid batteries leakage corrodes the gauge. The batteries included are not rechargeable. Please do not charge them.
- 1 * PGW-800
- 3 * AA alkaline battery
- 1 * User manual
- 1 * 1/4" Male adapter
- 1* 1/4 Female adapter
- 1* Bent adapter
140 Refrigerant Profiles:
