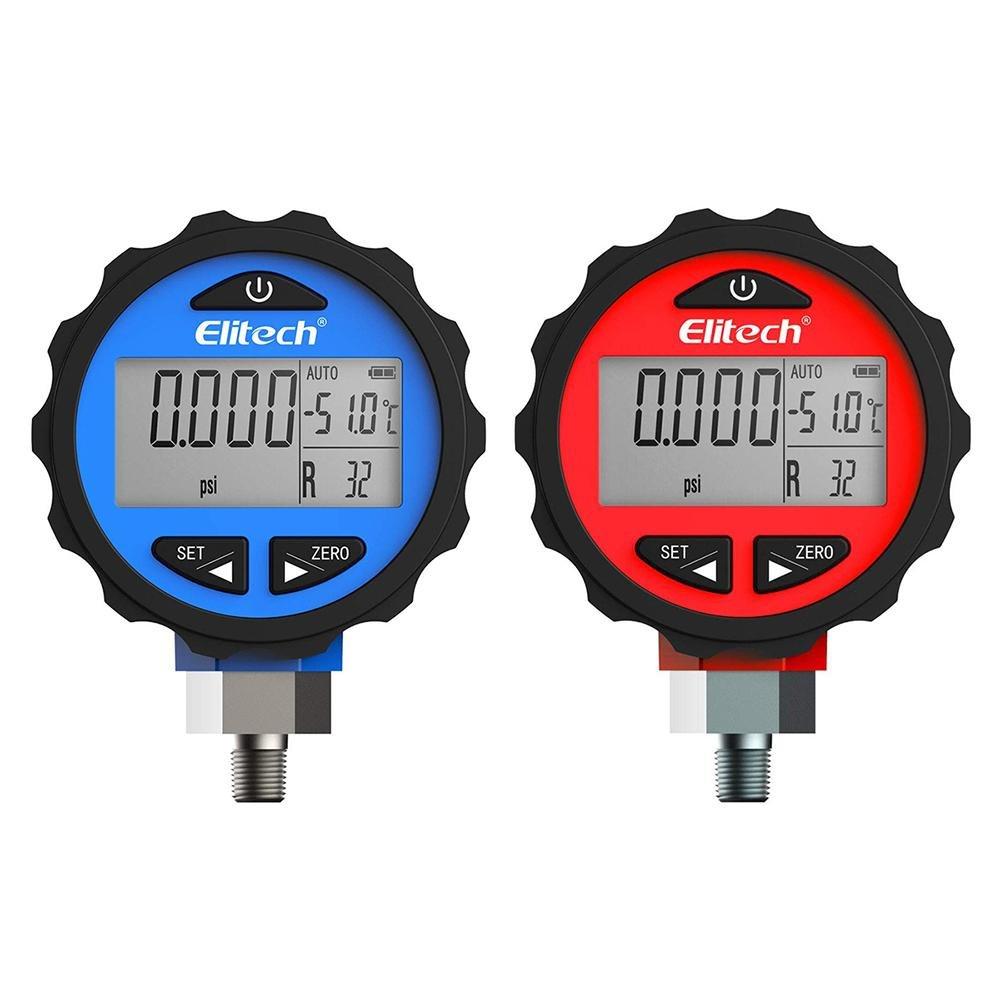

Elitech PG-30 Pro Red & Blue Digital Pressure Gauges High and Low Pressure Gauges for HVAC 87+ Refrigerants with Backlight
Digital high pressure gauge PG-30Pro digital high-pressure gauge that measures system pressure in real-time. It is designed for use in the piping system, refrigerated system and other applications.
Key Feature£º
Stable and Reliable Sensor- Use temperature-compensated pressure sensor
- Six different measuring units to choose: MPa, kPa, bar, psi, kg/cm2, cmHg
- The air pressure gauge's digital backlight display allows you to readout easily even in the night.
- Partition display for different measurements, direct readings for all measurements.
- Adjustable backlight off time: 3s,4s,5s,10s,15s or always on
- Selectable Auto-off time: 10min (default), 20min,30min,40min
- PT tables list 87 types of normal refrigerants
- Switch Refrigerants: on the home page, press and release SET or ZERO key to scroll through refrigerant types and related value.
- If deviation occurs at zero points, use the ZERO key to zero out and correct the system.
- In MAX/MIN page, press and hold the ZERO key to clear the MAX/MIN value.
- On the homepage, press and hold the ZERO key to clear current value; press and hold it again to recover the value.
- Note: Do not ZERO during measurement.
Specifications:
- Pressure range:?Red gauge: -01-5.515MPa(0 800psi) Blue gauge: -01-3.448MPa(0-500psi)
- Resolution: 0.001MPa, 0.5psi
- Accuracy: ¡À0.5%FS
- Sampling period:1s
- Temperature unit:¡æ/F
- Backlight time: The backlight will be off after 3s, 4s, 5s, 10s or 15s asset in case of no operation.
- LCD screen with blue backlight, 50 x 26 mm
- Measurement units: MPa, bar, psi, KPa, kg/cm 2, cmHg
- Auto-off: If this function enabled the gauge will be off automatically after 10 (or 20, 30, 40 )minutes per your settings. You may also disable this function by setting it as OFF, i. e the gauge will be on all the time.
- Parameter settings: Auto off, pressure/temperature unit, backlight time
- PT table lists the pressure and temperature of 87 types of common refrigerants
- Battery: 3 AAA batteries
- Battery life: Approx. 1 year
- Low battery indication at a low battery level
- Operating environment: Temperature:-10¡æ~60¡æ; Humidity 35% - 85%RH
- Overpressure alarm: ALARM shows on the top right of the screen if the blue gauge pressure goes above 500psi and the red gauge above 800psi; ALARM shows with backlight flashing if the blue gauge pressure goes above 625psi and the red gauge above 1000psi.
Package Includes:
- 1 X PG-30Pro Pressure Gauge (Red)
- 1 X User Manual
- 3 X AAA Batteries
Compatible Refrigerants:
- R114, R12, R123, R1234yf, R1234ze, R124, R125,
- R13, R134a, R14, R141B, R142B, R143A, R152A,
- R161, 170, R21, R218, R22, R23, R290, R32, R290,
- R32, R401A, R401B, R401C, R402A, R409B, R41,
- R410A, R410B, R412A, R413A, R414A, R414B, R415B,
- R416A, R417A, R419A, R420A, R421A, R421B, R422A,
- R422B, R422C, R422D, R423A, R427A, R437A, R441A,
- R442A, R443A, R444A, R449A, R449B, R450A, R452A,
- R455A, R50, R500, R502, R503, R504, R507, 508A,R508B,
- R509A, R513A, R600, R600a, R601, R601a, R740, R744
