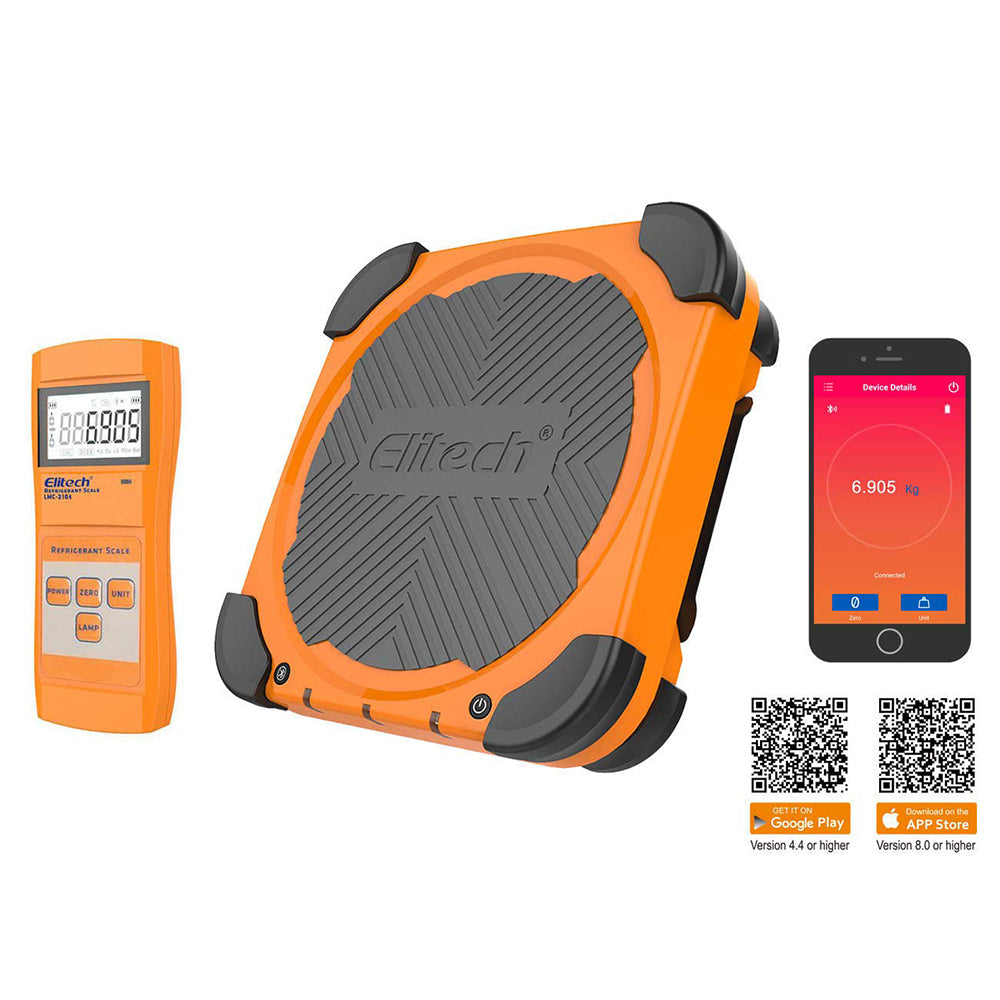

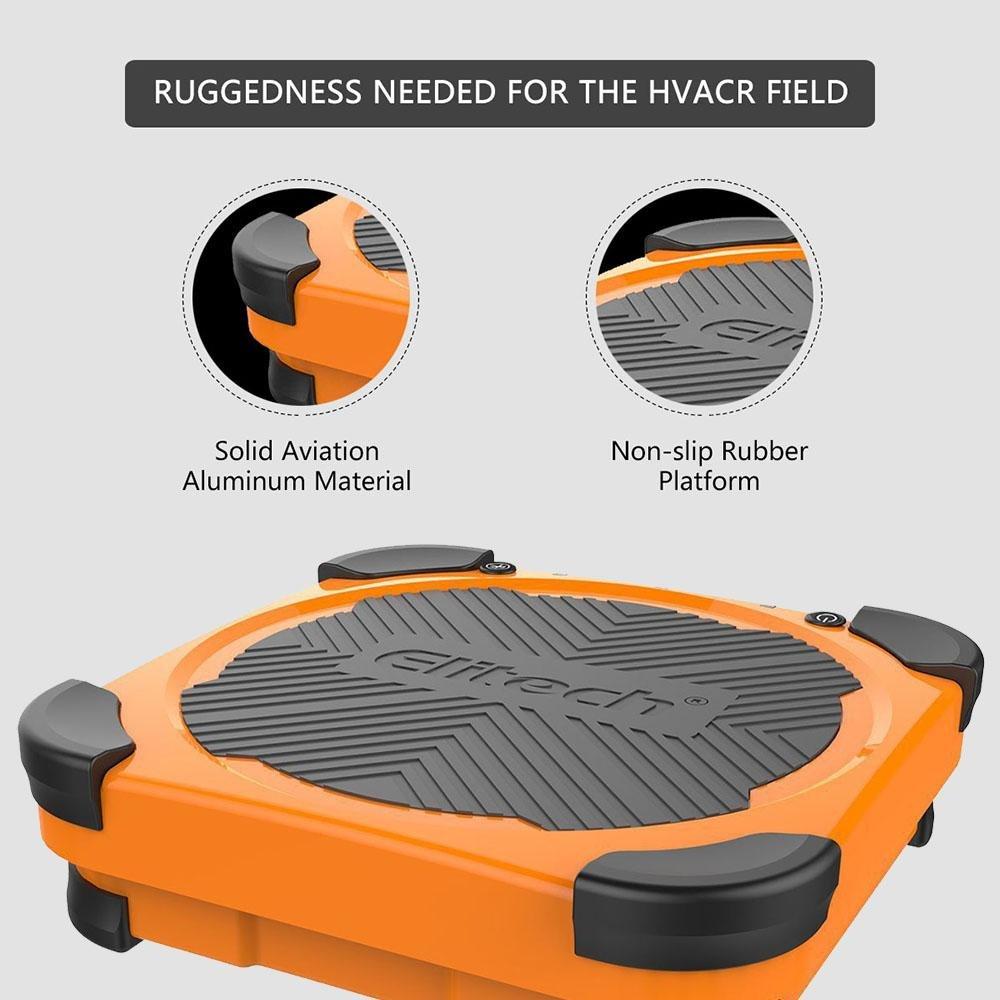

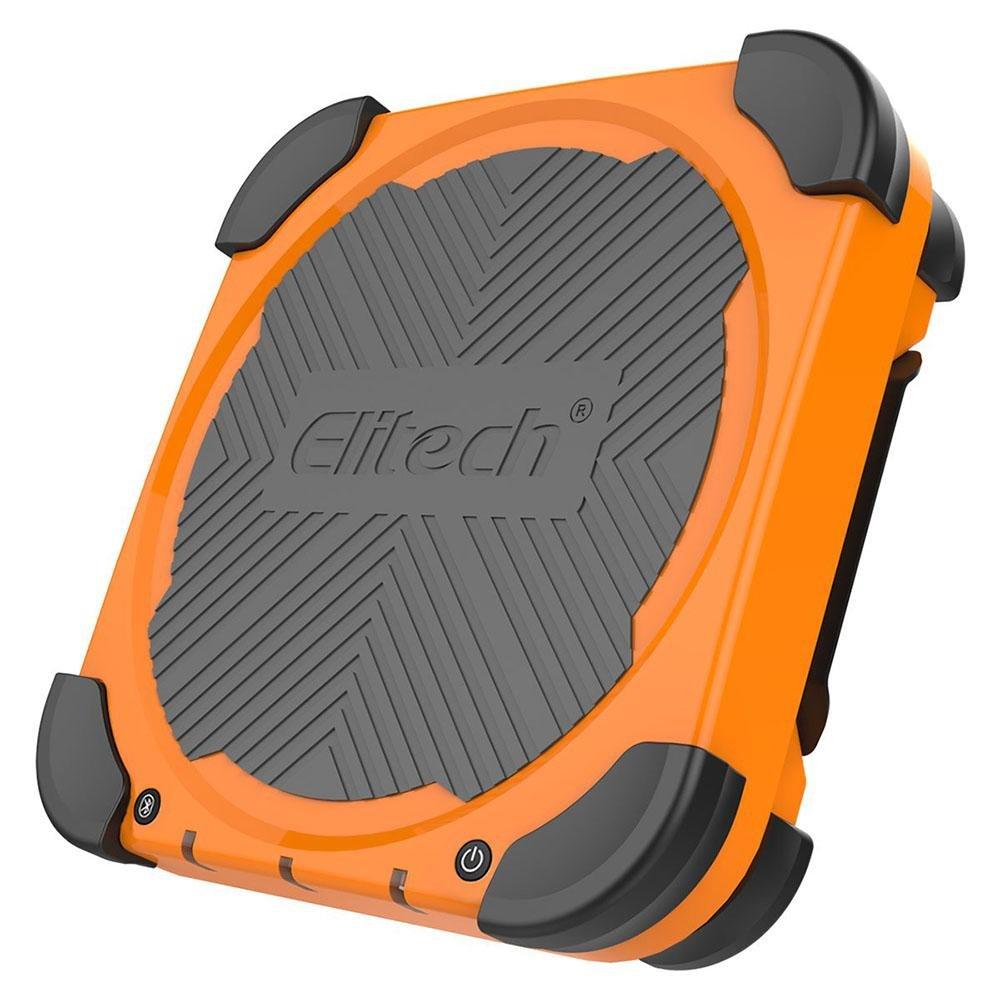

Elitech LMC-210A Programmable HVAC Refrigeration Charging Scale is designed to weigh refrigerant containers in addition to charging directly into the system or recover from the system. The HVAC scale?features a measuring weight capacity of?330 lbs (150kg),?remote communication between scale body and Elitech Scale App or handhold controller,?tough and durable platform, sealed LCD and touch-pad, long-lasting circuitry, switchable measuring units, and more.
1) Wireless hand device(effective distance:10 m) and mobile software
2) High Accuracy and Resolution: ¡À0.05 % rdg + 10 g
3) Greater performance reliability and usability
4) Greatest resolution in the industry and no compromise on capacity (330 lbs)
5) Unit can switch between kg, oz and lb

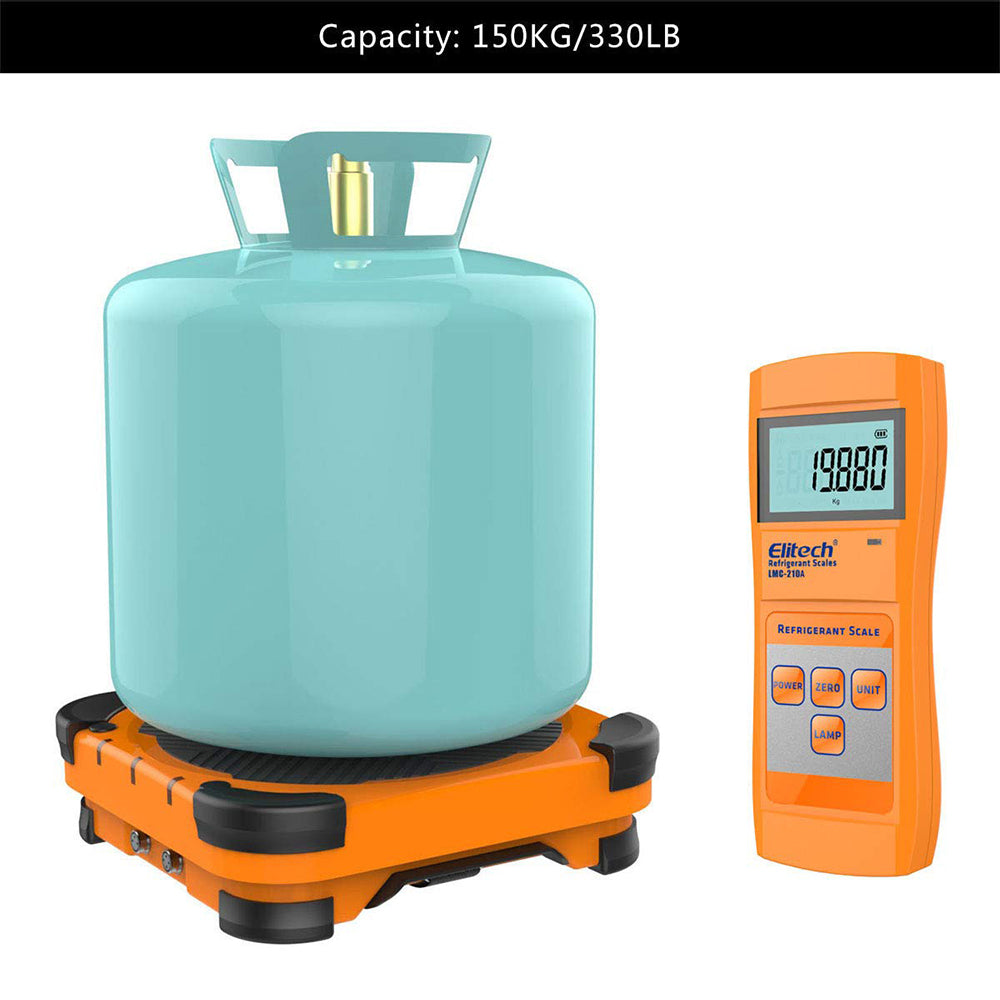

Max weighing: 150kg(331Lb)
Accuracy: ¡À0.05% rdg+25g

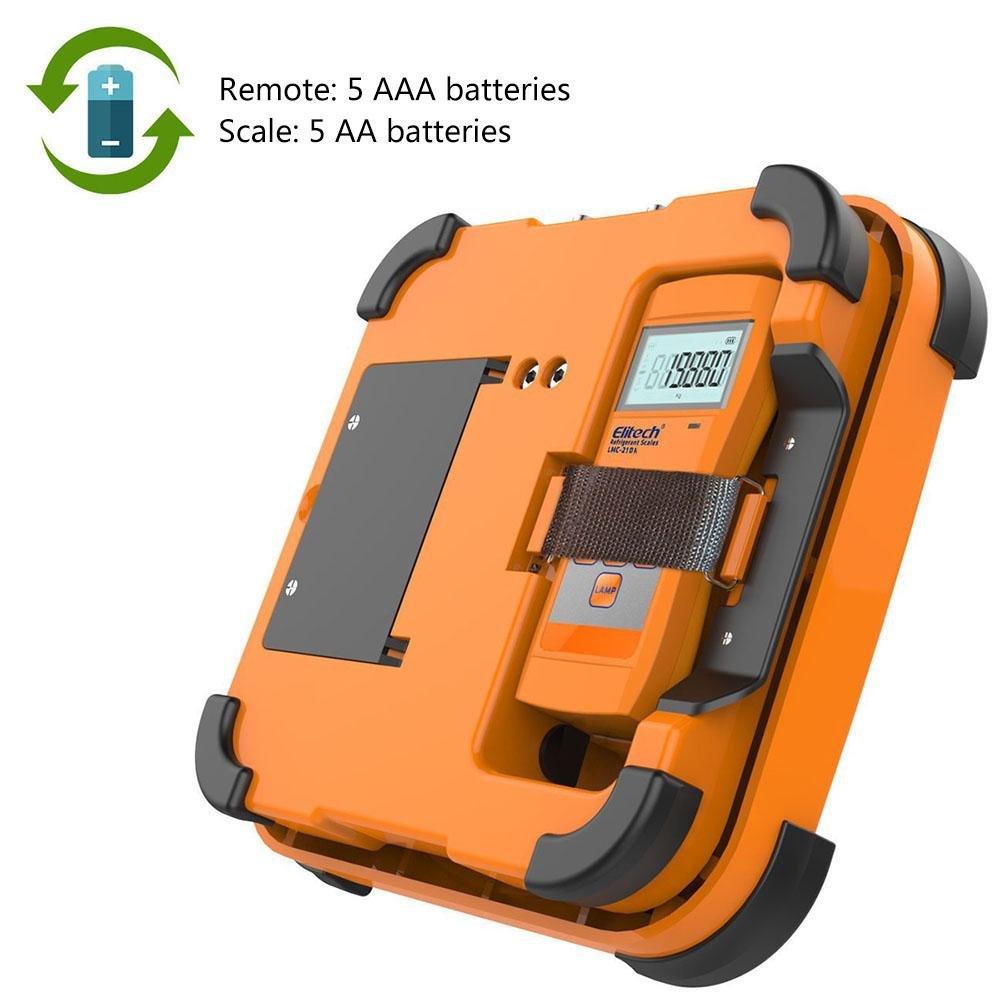

Power supply: hand-held device: 5 AAA alkaline batteries; scale platform: 5 AA alkaline batteries
Battery Life: Hand-held Controller: 40H; Scale Platform: 80H
Operating temperature: -10¡æ~40¡æ
Storage temperature: -15¡æ~50¡æ
Temperature fluctuation range: 5¡æ/h
Relative humidity: 50~85%

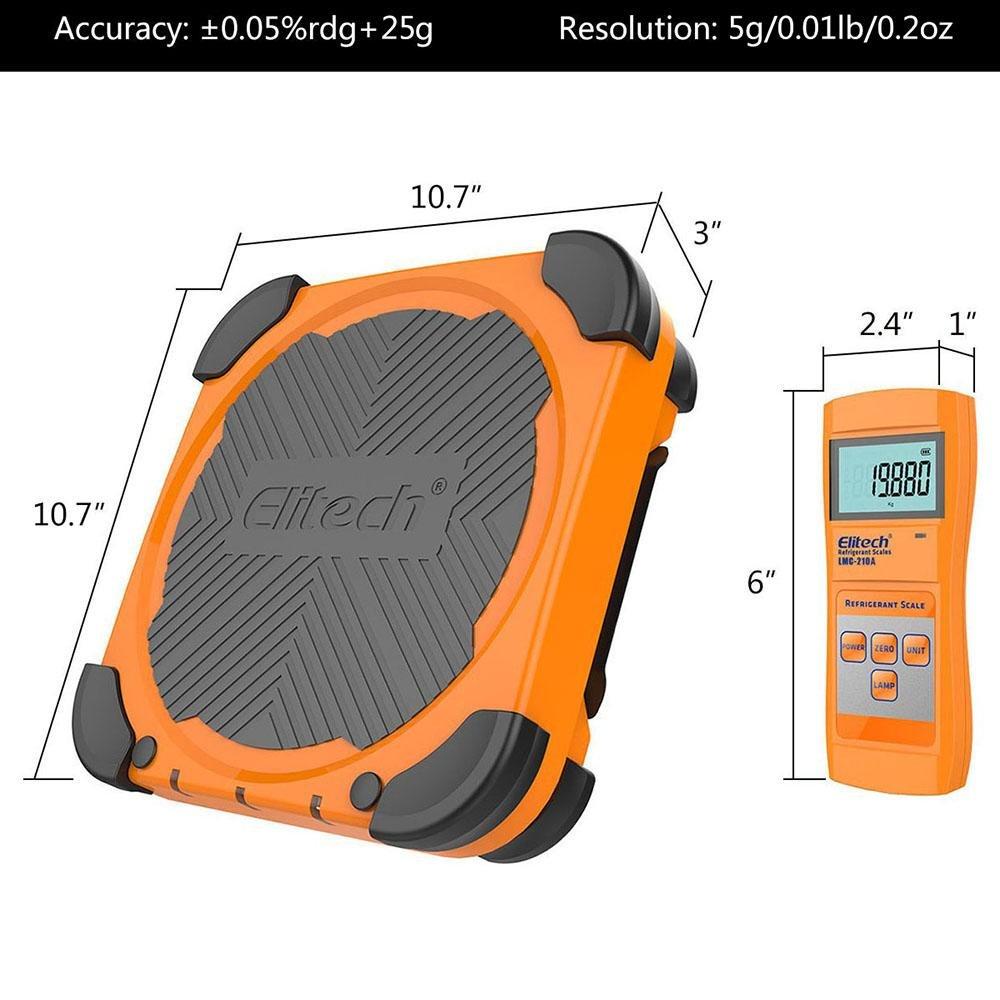

Product size: 271*271*74 mm
View and control the scale via mobile APP
- The scale is designed for total weight of refrigerant tank no more than 150Kg.
- Take out the scale from the package, place it on firm and flat surface, and press power button on the platform.
- Press Wireless button on the platform.
- Take out the hand-held remote, press the "POWER" button on the hand-held remote until the buzzer beeps once, indicating self-test is completed.
- Wait until Wireless signal is connected. If yes, the screen displays Wireless icon;

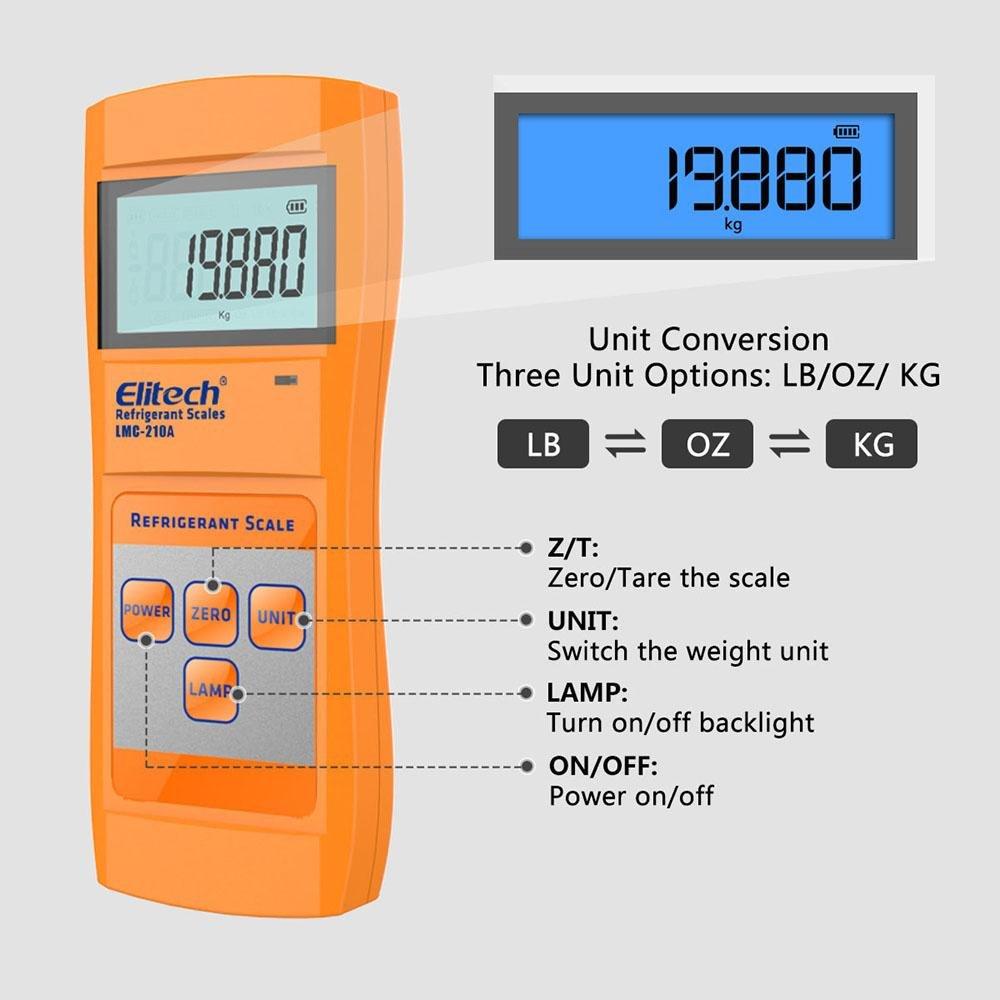

- Press "UNIT" to switch between "Kg", "Oz" and "Lb".
- Press "ZERO" to tare.
- Place the refrigerant tank at the center of the scale platform; Zero it again to display the weight of refrigerant.
- Observe the change of refrigerant weight in real time during charging and recovery.
- Please use the scale in specified environment to avoid error or damage of the sensor.
-?Please do not use chemical solvent or corrosive liquid to clean the scale.
-?Please do not disassemble the scale body and the remote; otherwise, it may cause great weighing error.
-?Please do not pull the spiral line hard to avoid measuring error and sensor damaged.
-?Remove the batteries if the scale is not in used for a long time in case of the batteries leakage corrodes the scale. The batteries included are not rechargeable, please do not charge them.
