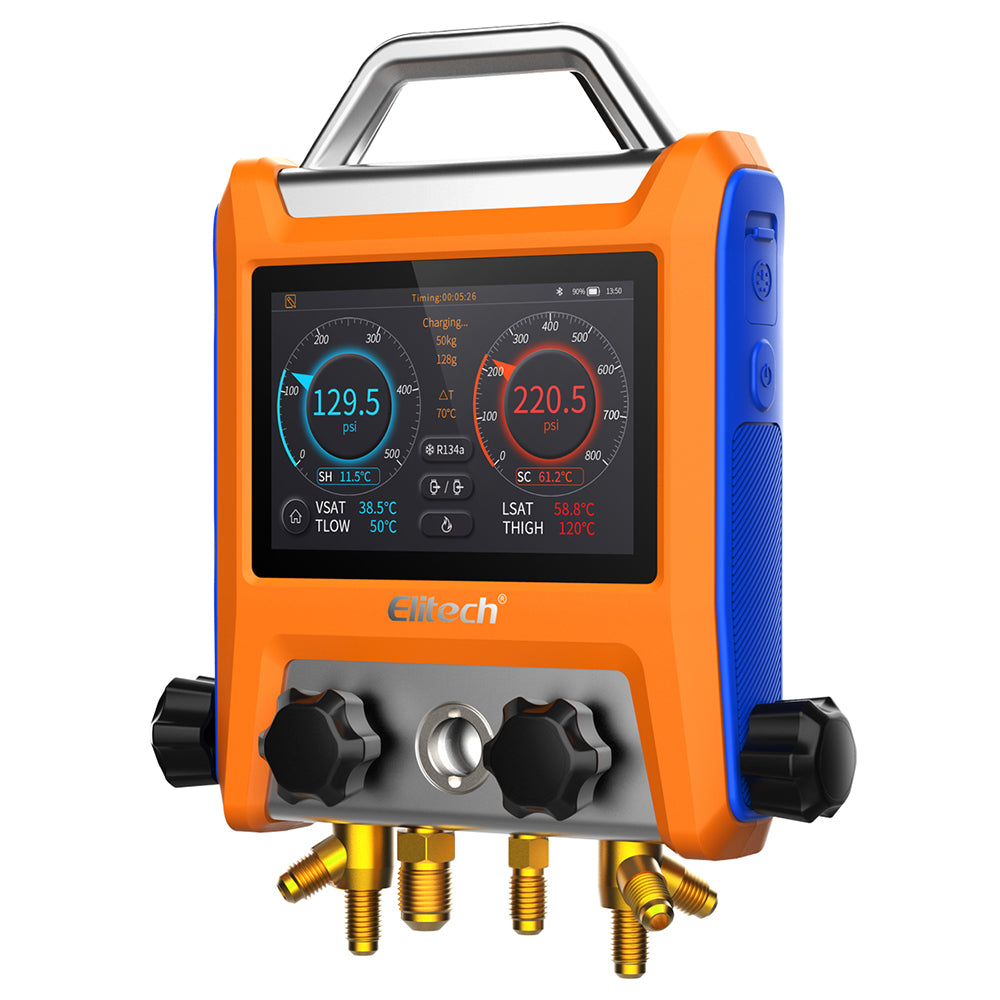

Elitech EMG-40V Intelligent 4 Valves Digital Manifold with 5” Smart Touch Screen

In stock
Elitech Digital Manifold EMG-40 Better Performance: Accuracy, precision, stability, connectivity are combined in the new Elitech smart digital manifold.  Elitech has combined years of feedback from...
$800.99
$800.99

Elitech Digital Manifold EMG-40

Better Performance:

Accuracy, precision, stability, connectivity are combined in the new Elitech smart digital manifold.  Elitech has combined years of feedback from customers to create a tool that would bring the best out of digital manifolds to the market.

The hardcover case, the reinforced hook, clear visual, water, and impact-resistant, wireless capability, data logging. The EMG-40 is created to help you do your jobs easier faster and better.

Packed with skills:

Together with the digital EMG digital manifold series, Elitech has developed the Elitech tools app. The HVAC purpose application can be easily downloaded from Google Play or the Apple store. After the device has been linked to the app, the user can easily watch what's on his gauge from his couch. The Elitech tools allow users to take notes of the job, the date and time will be automatically recorded to the app and can be easily downloaded into an Excel file for PDF. This function allow HVAC professionals to keep track of their work, it is also great to show their customers they really pulled the pressure from their HVAC system.

Elitech EMG-40V Intelligent 4 Valves Digital Manifold with 5” Smart Touch Screen

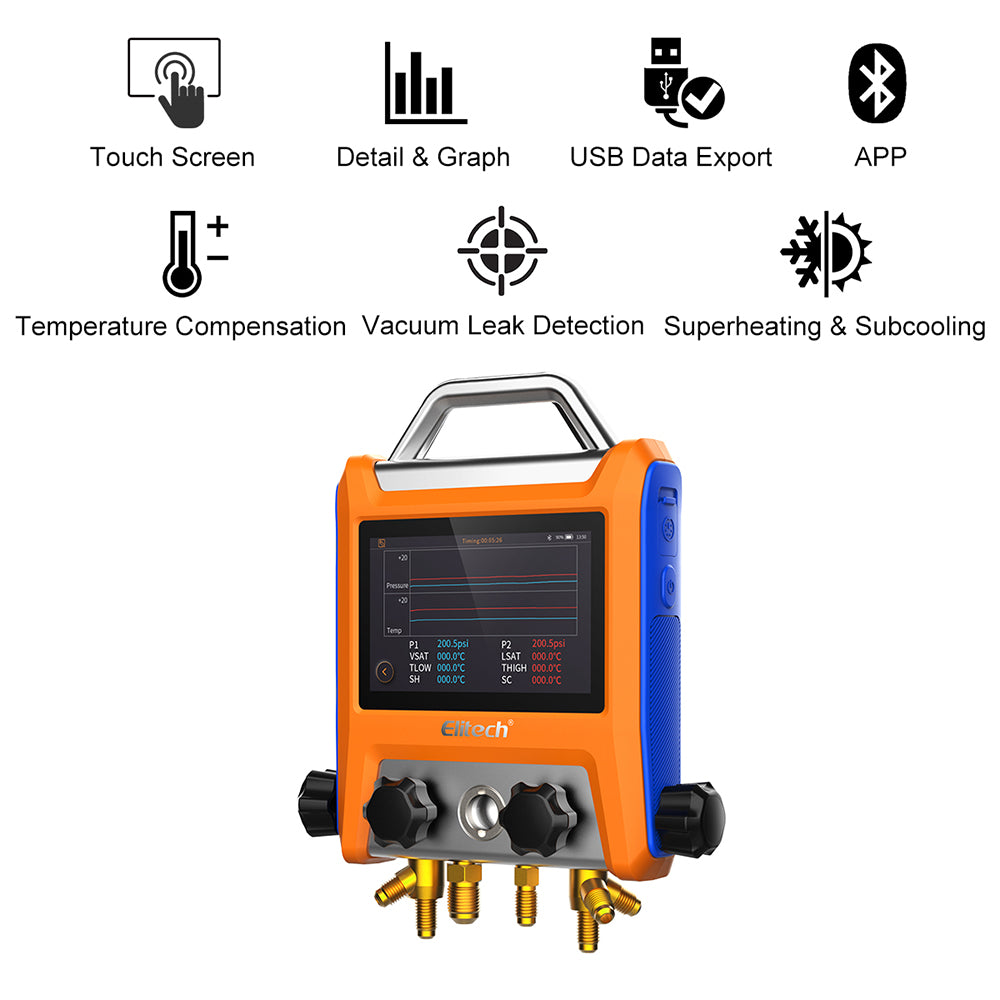

Features

 5” smart touch screen Clear data, graph, and display.
App connectivity
Easily export data through a USB
Data Logging  Record up to 100,000 points internally
Intuitive and efficient analysis  Pressure vacuum and temperature display
Automatic calculation  Heating and Cooling can be easily switched without changing the refrigerant hoses.
Monitor the vacuum system  leak detection, built-in temperature compensation
Service  1-year warranty. 30 days free & easy return
Elitech EMG-40V Intelligent 4 Valves Digital Manifold with 5” Smart Touch Screen

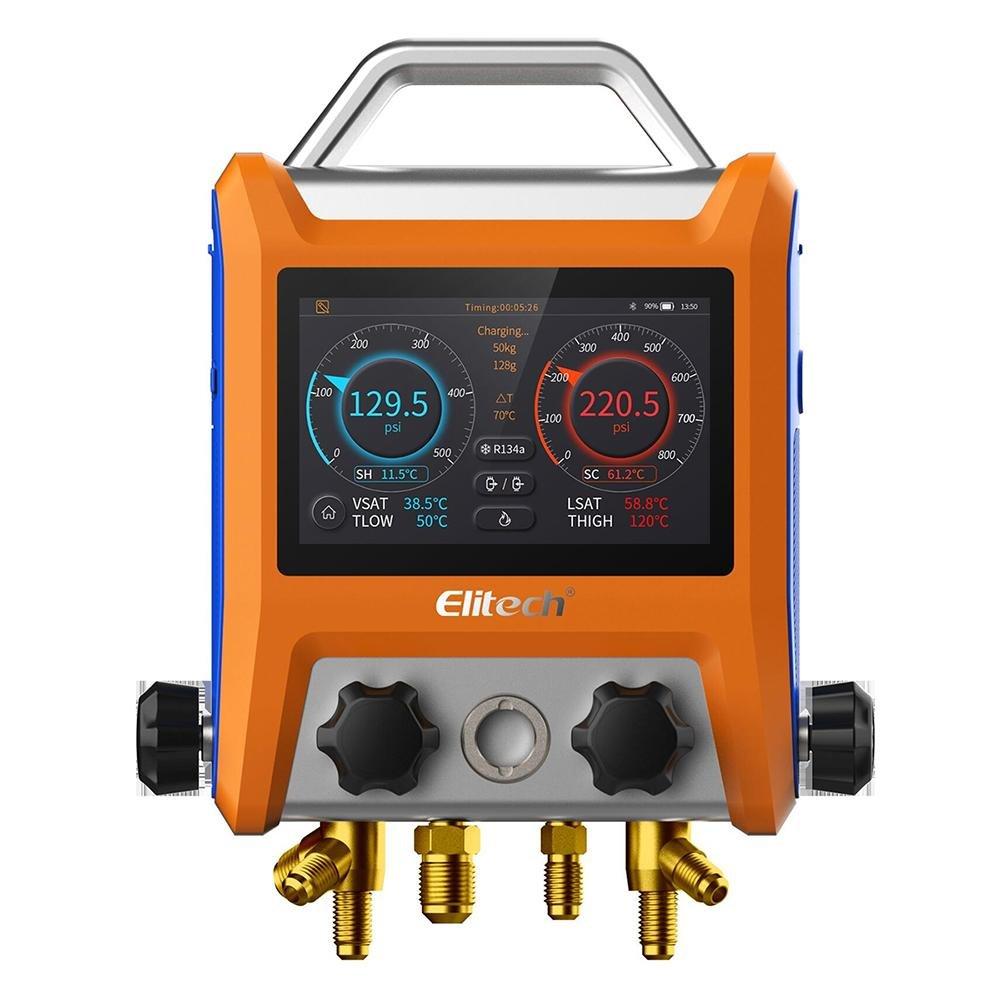

 Pressure & Temperature measurement: On the Elitech EMG- 40 large screen, the customer can have a clear view of saturation temperature. The unit also provides automatic calculation of superheating and subcooling. The mode of refrigeration and heating can be easily switched. Clear view
Vacuum Measurement:  The EMG- 40 counts with a vacuum transmitter, it can be connected to a vacuum pump and allows the HVAC technicians to monitor the changes in the vacuum in real-time. Estimation completion time evacuation, and vacuum leakage test.

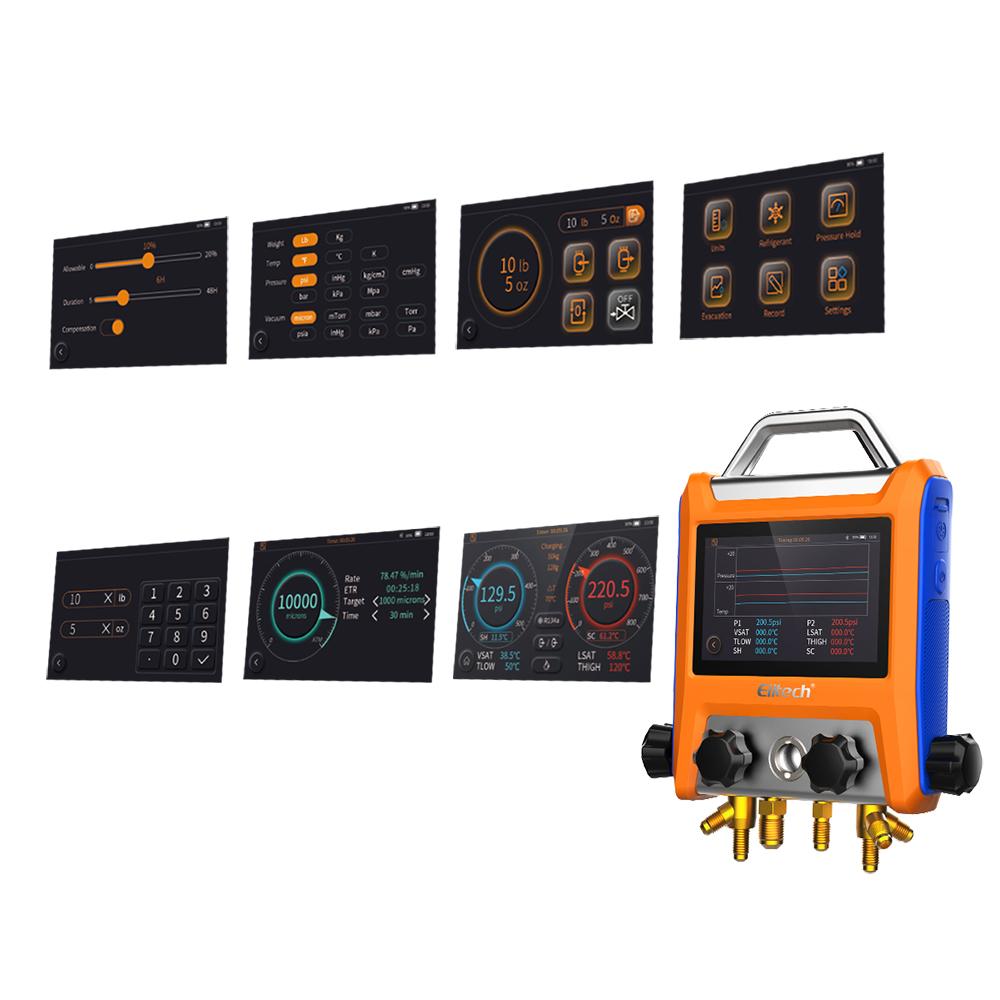

Unit Settings: Weight can be measured in Kg or Lb. Temperature units are Celcius, Fahrenheit, and Kelvin. Pressure Measurements are psi, in Hg, kg/cm2, cmHg, bar, kPa, Ma. Vacuum measurement: micron, mTorr, mbar, Torr, psi, inHg,kPa and Pa
Pressure holding measurement: Pressure maintenance leakage, set pressure decay ratio, pressure holding time, support temperature compensation.
Elitech EMG-40V Intelligent 4 Valves Digital Manifold with 5” Smart Touch Screen


 Dial Curve: The EMG-40 allows the user to view temperature and pressure in the dial curve.
Accurate leakage detection: Pressure holding and temperature compensation to obtain accurate leakage detection
Refrigerants: The Elitech digital manifold supports more than 80 types of refrigerants and 20 types can be added to the favourites list, allowing users to easily find the refrigerants they need
Pressure Holding Settings: The EMG-40 has the option to record or not the pressure work, also the user can set the recording interval and delete previous records.


Specifications

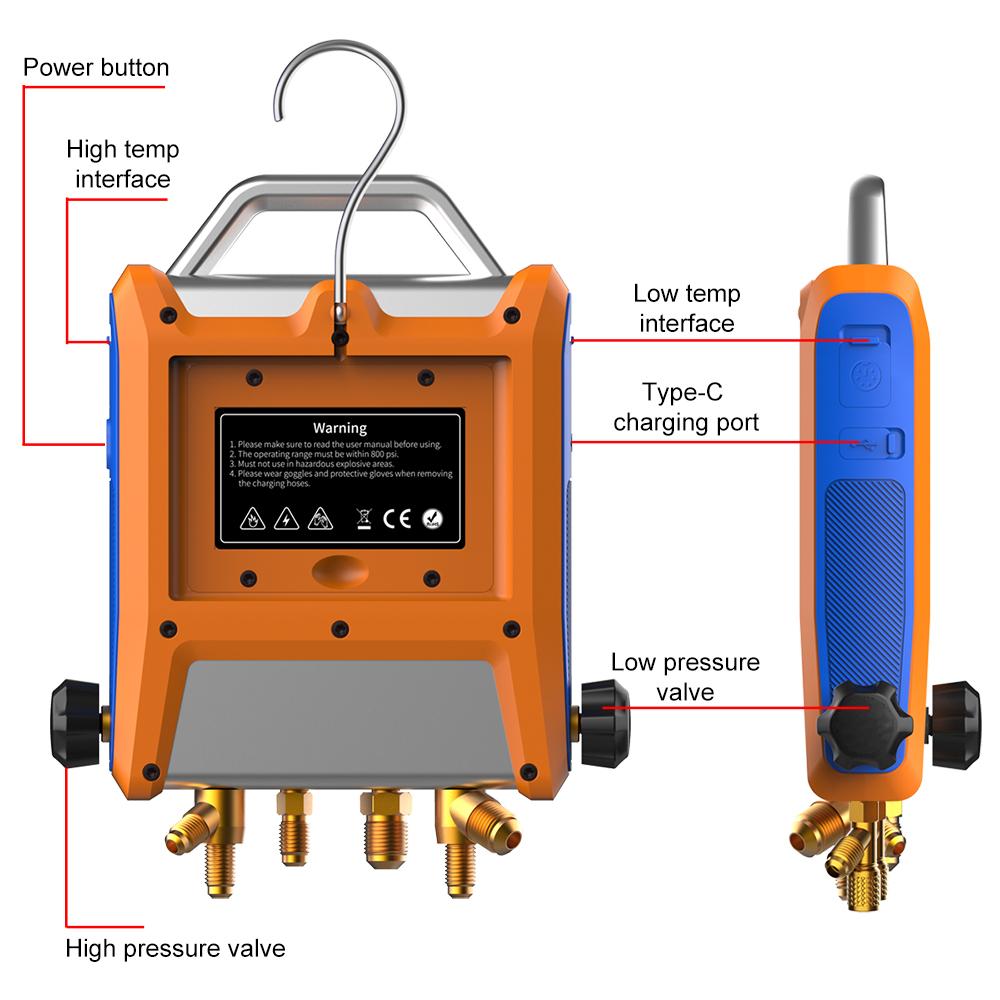

 Interface:  1/4 SAE*3 & 3/8 SAE*1
Sensor interface: PS/2*2 ( left interface is temperature & vacuum probe multiplexing)
USB Interface: Type-C*1 (for data export and charging)
Dimensions:  254*215*71mm
Weight: 3.8lb/1.73kg
Working temperature:  -20~60℃/-4~140℉
Storage temperature:  -40~80℃/-40~176℉
Charging Parameter:  5V2A
Battery Capacity:  5000mAh
Recording time:  500h


Technical Parameters

Pressure(High-Pressure Port and Low-Pressure Port )

 Measuring Range:  -14.5~800psi/-1.0~56.2kg/cm2/-1.0~55.2bar/-0.1~5.5MPa
Accuracy:   0.5%FS
Resolution: 0.1psi/0.1kg/cm2/0.1bar/0.01MPa
Pressure unit:  psi, inHg, kg/cm2, cmHg, bar, kPa, MPa
Data Sampling Frequency: 0.5S
Overload:  1000psi/70kg/cm2/69bar/6.8MPa


    Temperature Clamp (High-Pressure Port and Low-Pressure Port )

     Temperature Range: -40℉-300℉/ -40℃-150℃
    Accuracy: ±0.1℃/±0.18℉
    Resolution:  0.1℉/℃
    Temperature Unit: ℉, ℃


    Vacuum

     Range:  0-19000 microns
    Accuracy: 0-10000microns, ±10% of Reading / ±10 microns; 10000-19000microns, ±20% of Reading
    Vacuum Unit inHg, Torr, psia, mbar, mTorr, Pa, micron, kPa
    Resolution:  0-400, 1 microns; 400-3000, 10 microns; 3000-10000, 100 microns; 10000-19000, 250 microns;
    Interface: 1/4SAE and 1/4SAET


      Refrigerant List

       R113 R114 R115 R116 R12 R123 R1233ZD R1234ZE R1234YF R124 R125 R13 R134a R14 R141B R142B R143A R152A R170 R22 R23 R236FA R245FA R290 R32 R401A R401B R401C R402A R402B R403B R404A R406A R407A R407B R407C R407D R407F R408A R409A R410A R410B R412A R413A R414A R414B R416A R417A R417C R420A R421A R421B R422A R422B R422C R422D R424A R426A R427A R428A R429A R434A R437A R438A R441A R443A R448A R449A R450A R452A R452B R453A R454A R454B R455A R458A R500 R502 R503 R507A R508A R508B R514A R600 R600a R601a R718 R744

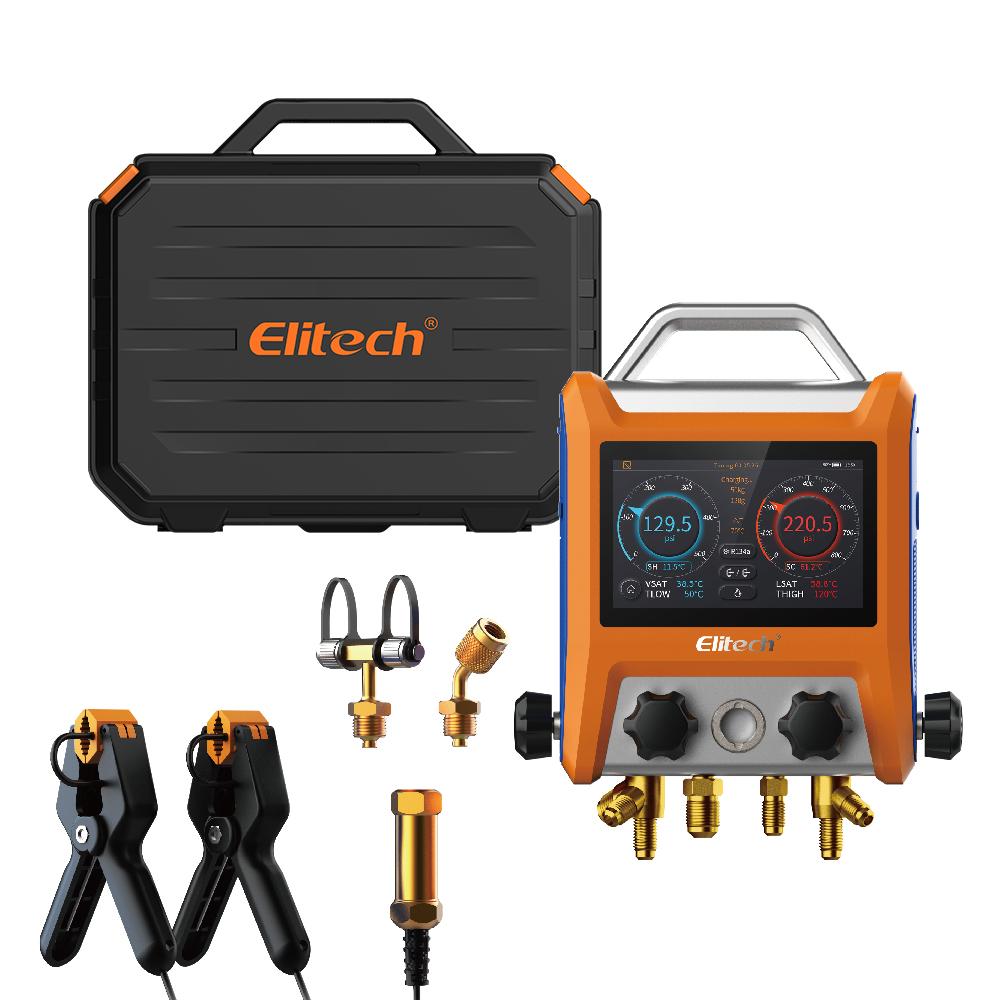

      Packing list

      1 x Vacuum transmitter(T-joint)
      2 x Temperature clamp
      1 x Bent joint
      3 x Refrigerant hose
      1 x Universal power adapter
      1 x USB-C cable
      1 x User Manual (Download)
      1 x Portable durable case



        Elitech EMG-40V Intelligent 4 Valves Digital Manifold with 5” Smart Touch Screen
