This product is mainly used for air exhaust and compression in refrigeration and maintenance operation, refrigerant charging of air-conditioning systems. It can display pressure in real-time with a bigger screen.

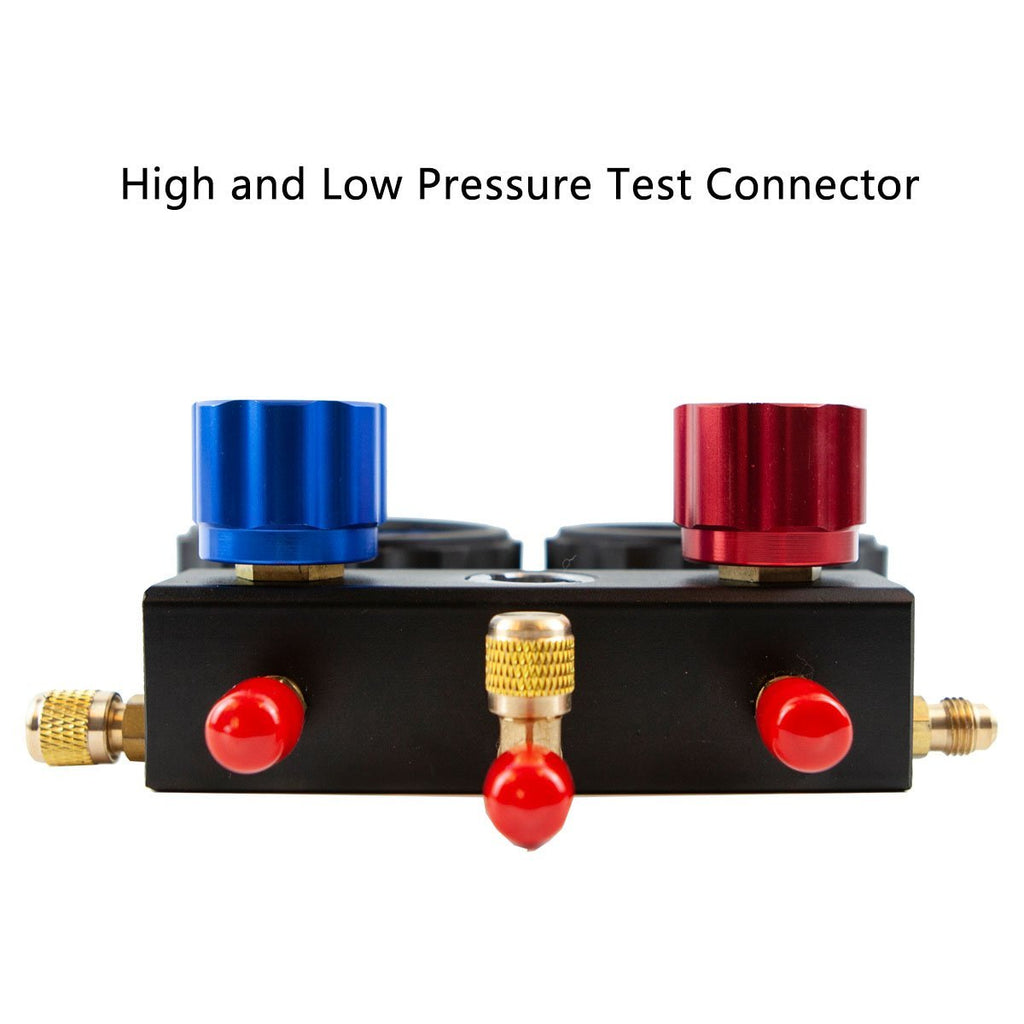

- Professional Design: 2-Way Air conditioning diagnostic manifold gauge set for R134A R12 R22 and R410A refrigerants. Designed for AC charging, diagnostic check and recovery work.
- Easy to use: Double pressure test, dual temperature test, digital readout, multi-unit switching, multi-mode function and built-in refrigerant database.
- High Accuracy: High-quality dual-table valve with imported pressure sensor, excellent workmanship, stable performance, Large screen, display data clearly.
- Long battery life: Powered by 3AAA batteries, up to work for about 6 months.
- Wide Application: The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners, fridge and cold storage.
- Service 1-year warranty. 30 days free & easy return
- Pressure Measuring Range: -14.5-500psi/-14.5-800psi
- Operating Temperature and Humidity: -10~60℃; 35%~85%RH
- Resolution pressure: 0.5psi; temperature: ±1℃
- Accuracy pressure: ±0.5%FS (22℃~28℃); temperature: ±1℃
- Battery Life: six months
- Power Supply: 3 AAA batteries per gauge
- Sampling Period: 1s
- Battery Indicator: display "LOB" at low battery
- Display:1.9 *1 (in) LCD/blue back-light
- Settable Measurement Units: MPa,kPa,bar,psi,kg/cm2,cmHg
- Temperature Unit: ℉ / °C
- Over Range Alarm: Displays -OL-
2 x Pressure Gauge (PG-30Pro)
- 2-Way: red, blue
- Refrigerant Type: R134A, R22, R410A, etc.
- Max Working Pressure: 800psi
- Low side: blue
- High side: red
- Red Hose: high pressure
- Blue Hose: low pressure
- Yellow Hose: refrigerant
- (800 PSI working pressure and 4000 PSI burst pressure )
1 x Corkscrew
1 x Dual-purpose Valve Wrench
2 x R410A Adapter
1 x User Manual (DOWNLOAD)
1 x Blow-molded Case
- R114, R12, R123, R1234yf, R1234ze, R124, R125,
- R13, R134a, R14, R141B, R142B, R143A, R152A,
- R161, 170, R21, R218, R22, R23, R290, R32, R290,
- R32, R401A, R401B, R401C, R402A, R409B, R41,
- R410A, R410B, R412A, R413A, R414A, R414B, R415B,
- R416A, R417A, R419A, R420A, R421A, R421B, R422A,
- R422B, R422C, R422D, R423A, R427A, R437A, R441A,
- R442A, R443A, R444A, R449A, R449B, R450A, R452A,
- R455A, R50, R500, R502, R503, R504, R507, 508A,R508B,
- R509A, R513A, R600, R600a, R601, R601a, R740, R744
|Pressure Measuring Range||Accuracy||Resolution||Fitting||Measurement Units||Battery||Refrigerant Types||Wireless App||Super-heat and sub-cool||Temperature Clip|
|PG-30 Low Pressure||-14.5-500psi||¡À0.5%FS(22-28¡æ)||0.5psi||1/8'' NPT||MPa,kPa,bar,psi,kg/m2,cmHg||CR2450||91||N/A||N/A||N/A|
|PG-30Pro Red||-14.5-800psi||¡À0.5%FS(22-28¡æ)||0.5psi||1/8'' NPT||MPa,kPa,bar,psi,kg/m2,cmHg||3*1.5V AAA||87||N/A||N/A||N/A|
|PT-500&PT-800||-14.5-500/800psi||¡À0.5%FS(22-28¡æ)||0.5psi||1/8'' NPT||psi, inHg,kg/cm2,cmHg,bar,kPa,Mpa||6*1.5V AA||140||?||?||?|
|DMG-3B||-14.5-500/800psi||¡À0.5%FS(22-28¡æ)||0.5psi||1/4'' SAE||MPa,kPa,bar,psi,kg/m2,cmHg||3*1.5V AAA||87||N/A||N/A||N/A|
|DMG-3||-14.5-500/800psi||¡À0.5%FS(22-28¡æ)||0.5psi||1/4'' SAE||MPa,kPa,bar,psi,kg/m2,cmHg||3*1.5V AAA||87||N/A||N/A||N/A|
