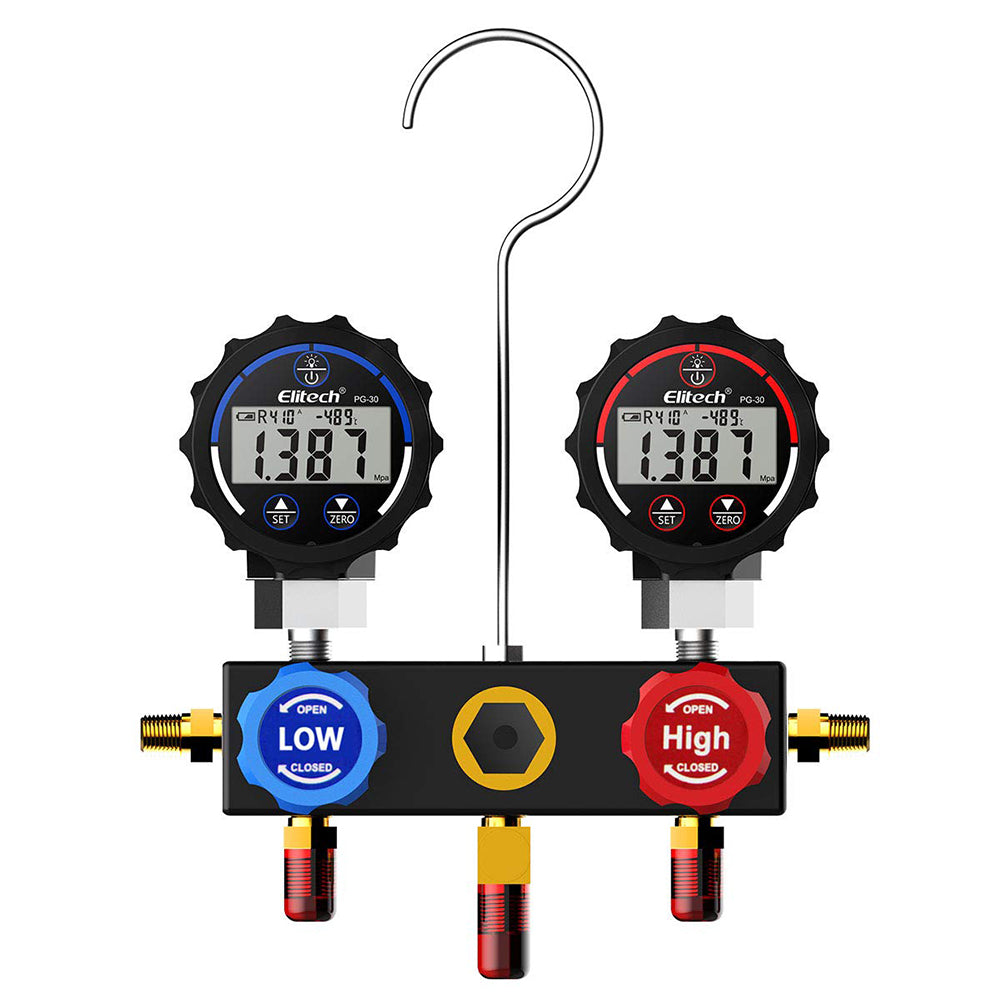

Elitech DMG-1B Digital Manifold Gauge 2 Way 59'' Hoses
This product is mainly used for air exhaust and compression in refrigeration and maintenance operation, refrigerant charging of air-conditioning systems. It can display pressure in real time.
Product features:
- An updated version of DMG-1 as it adds the new refrigerants: R448, R449.
- Professional Design: 3-Ways Air conditioning diagnostic manifold gauge set for R134A R12 R22 and R410A refrigerants. Designed for AC charging, diagnostic check and recovery work.
- Easy to use: Double pressure test, dual temperature test, digital readout, multi-unit switching, multi-mode function, and built-in refrigerant database.
- High Accuracy: High-quality dual-table valve with an imported pressure sensor, excellent workmanship, stable performance, Large screen, display data clearly
- Wide Application: The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing, and maintenance of refrigeration equipment such as air conditioners, fridge, and cold storage.
Product description:
- Color: DMG-1B
- Description:
- This product is mainly used for air exhaust and compression in refrigeration and maintenance
- operation, refrigerant charging of air-conditioning systems. It can display pressure in real time.
- Parameters:
- Pressure Measuring Range: -0.100~5.000 MPa
- Operating Temperature and Humidity: -10~60℃; 35%~85%RH
- Resolution pressure: 0.001MPa; temperature: ±1℃
- Accuracy pressure: ±0.5%FS (22℃~28℃); temperature: ±1℃
- Battery Life: Six months
- Power supply: 3V CR2450 button battery
- Sampling Period: 1.2s
- Battery Indicator displays "LOB" at low battery
- Display 37mm x 17mm LCD/gren backlight
- Measurement Units: MPa, kPa, bar, psi, kgf/cm2, mmHg
- Out-of-Range Alarm: FULL pressure or temperature shows"--"
Package:
- Double core valve x 2
- 1.5m fluorine hose x 3 (min pressure: 800psi; max pressure: 4000psi)
- Corkscrew x 1
- Dual-purpose valve wrench x 1
- R410A adapter x 1
- Blow molding package
- Manual x 1
Compatible Refrigerants:
- R11, R113, R114, R115, R116, R12, R123,
- R1234yf, R1234ze, R124, R125, R13, R134a,
- R14, R141B, R142B, R413A, R152A, R161,
- R170, R21, R218, R22, R23, R290, R32, R401A,
- R401B, R401C, R402A, R402B, R403A, R403B,
- R404A, R406A, R407A, R407B, R407C, R407E,
- R407F, R408A, R409A, R409B, R41, R410A, R410B,
- R412A, R413A, R414A, R414B, R415B, R416A, R417A,
- R419A, R420A, R421A, R421B, R422A, R422B, R422C,
- R422D, R423A, R427A, R437A, R441A, R442A, R443A,
- R444A, R448A, R449A, R449B, R450A, R452A, R455A,
- R50, R500, R502, R503, R504, R507A, R508A, R508B,
- R509A, R513A, R600, R600a, R601, R601a, R740, R744
